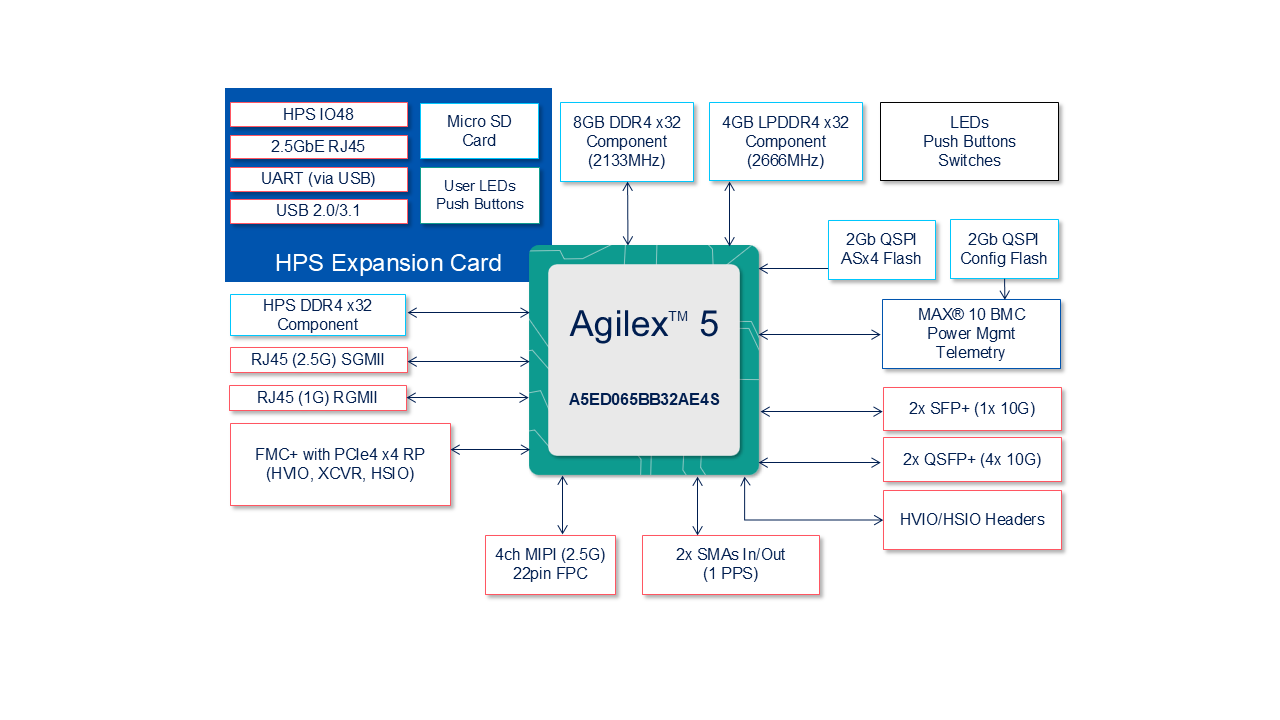

Agilex™ 5 FPGA E-Series 065B Premium Development Kit

DK-A5E065BB32AEA: Agilex™ 5 FPGA and SoC E-Series Premium Development Kit delivers a complete prototyping and reference platform design environment that includes both hardware and software for your Agilex™ 5 FPGA E-Series development needs. ​

View Details Right arrow Right arrow
Altera logo

Agilex™ 5 SoM: iG-G58M

The iW-RainboW-G58M is a compact, high-performance System on Module (SoM) based on Agilex™ 5 E-Series SoC FPGA, designed to meet the demands of edge AI, high-speed networking, and embedded computing applications. Featuring compatibility with both Group A and B B32A package variants (from A5E 065 to A5E 008), the SoM integrates a dual-core Arm® Cortex®-A76 processor running up to 1.8 GHz alongside a dual-core Cortex-A55 at 1.5 GHz, delivering powerful heterogeneous processing capabilities. It supports up to 656K logic elements in the FPGA fabric and includes 2GB LPDDR4 for HPS and 4GB LPDDR4 for FPGA logic, making it well-suited for low-latency, compute-intensive tasks.The module offers 24 transceivers operating up to 28Gbps, enabling high-speed data movement in bandwidth-sensitive applications such as 5G edge, video analytics, and defense. It also includes an integrated 2.5G Ethernet PHY, USB ULPI, 16GB eMMC (expandable), and a rich set of I/Os including LVDS, HVIO, RGMII, USB 3.0, S

View Details Right arrow Right arrow
/

Agilex™ 5 SOSA-aligned 3U VPX Plug-in Module (Payload Profile)

The Agilex™ 5 SOSA-aligned 3U-VPX Plug-in Module (Payload Profile) is a compact, rugged FPGA compute card for aerospace and defense applications. Powered by Altera Agilex™ 5 SoC FPGA, it delivers high-performance processing with SOSA interoperability. The module supports high-speed PCIe Gen3, multi-lane Ethernet, MT Ferrule optical I/O, and wideband ADC/DAC for real-time data capture and processing.

View Details Right arrow Right arrow
/

Agilex™ 5 SOSA-aligned 3U VPX Plug-in Module(Switch Profile)

The Agilex™ 5 SOSA-aligned 3U-VPX Plug-in Module (Switch Profile) is a rugged embedded switch solution designed for aerospace and defense applications requiring high-speed VPX backplane switching. Powered by an Altera Agilex™ 5 FPGA, it delivers multi-lane PCIe Gen3 and high-speed Ethernet switching across the VPX backplane with MT Ferrule optical I/O, supporting seamless data movement in real-time systems.

View Details Right arrow Right arrow
/

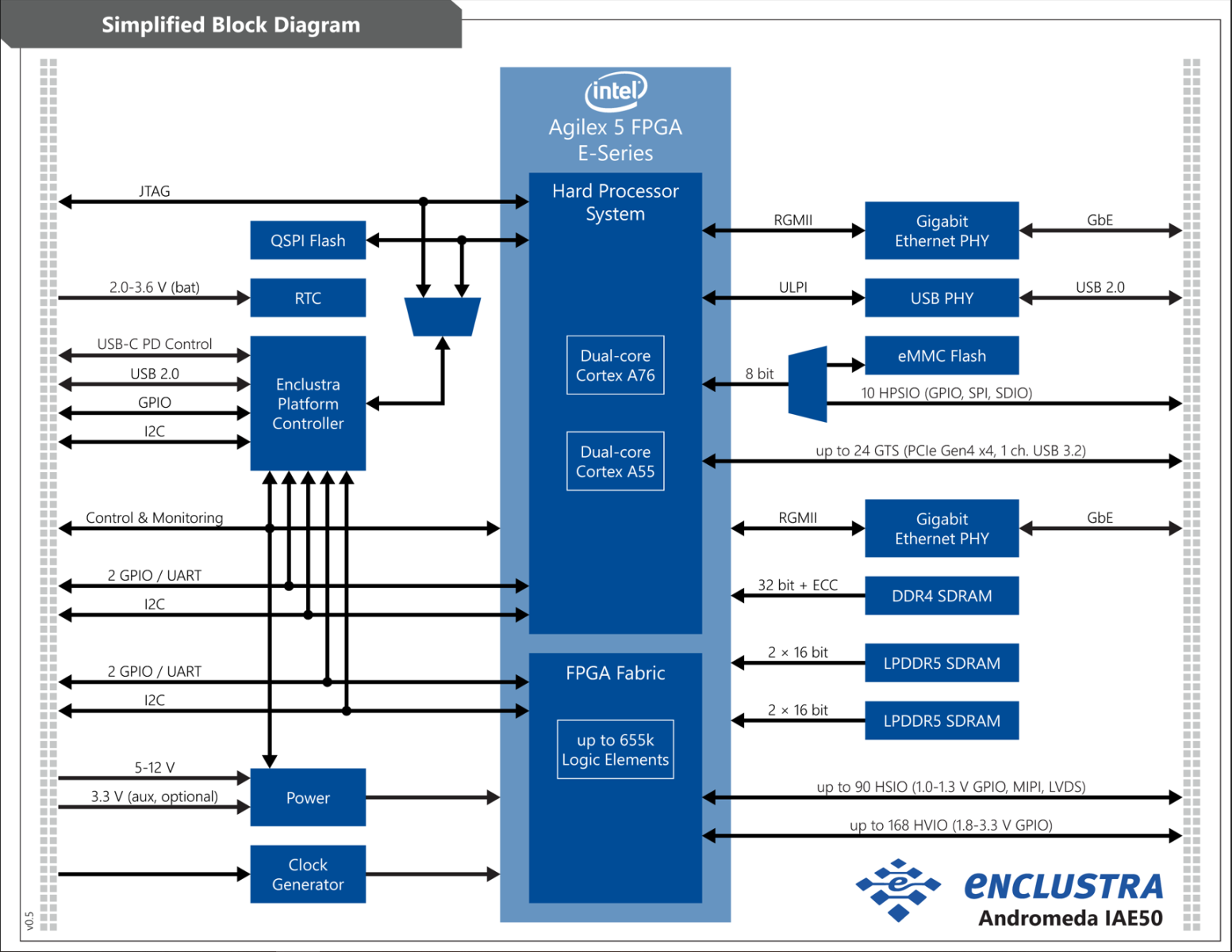

Andromeda IAE50

The Andromeda IAE50 SoC module features Altera® Agilex™ 5 FPGA E-Series devices with DDR5 memory, eMMC, QSPI flash, dual Gigabit Ethernet, and USB 3.1, forming a powerful embedded system. It supports vision, test and measurement, security, and communication applications with low latency and high bandwidth.

View Details Right arrow Right arrow
/

Atum A5 Development Kit

The Atum A5 Development Kit is Terasic’s first development kit in the Altera® Agilex™ 5 FPGA portfolio. Powered by the largest Agilex® 5 SoC FPGA with 656K LEs, the Atum A5 Development Kit is an out-of-the-box platform for advanced AI and vision application development.

View Details Right arrow Right arrow
/

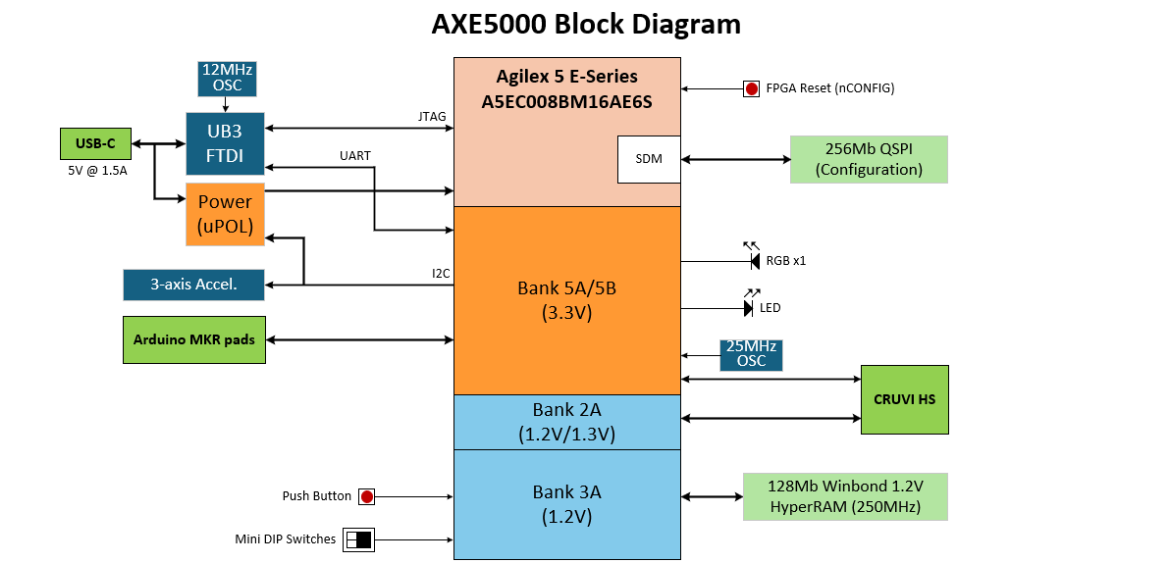

AXE5000

The AXE5000 is an FPGA board, based on Altera® Agilex™ 5 E-Series FPGA (no HPS).

View Details Right arrow Right arrow
/

Comet A65 SOM

The Comet A65 SOM is a high-performance System-On-Module powered by Altera’s largest Agilex™ 5 SoC FPGA, designed for demanding industrial edge applications.

View Details Right arrow Right arrow
/

Comet A65 SOM

The Comet A65 SOM is Terasic’s production-ready System-on-Module built on Altera’s largest Agilex® 5 SoC FPGA (656K LEs). With integrated HPS/ARM, 12GB LPDDR4, and high-speed expansion connectors, it delivers a powerful, scalable platform for industrial edge applications — from robotics to medical imaging — all with a free Altera® Quartus® Pro Edition license included.

View Details Right arrow Right arrow
/
Showing 10-18 of 29 Offerings
