MyMENSCH™ - W65Cx65MMC10M08 Development Board

SBC/Development board based on MAX10M08SA

View Details Right arrow Right arrow
/

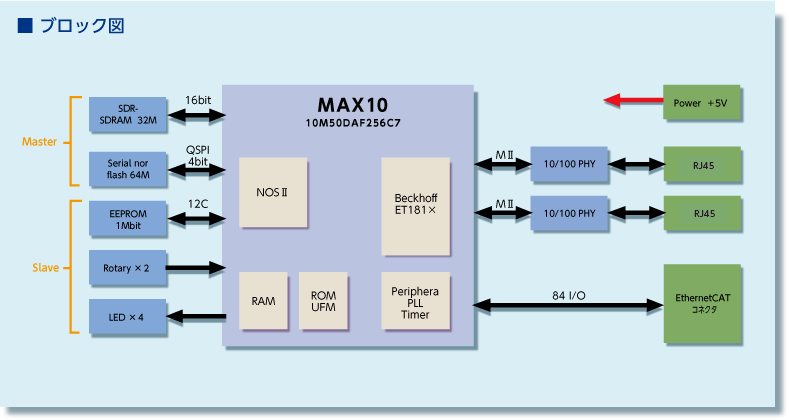

N-EMB-120 OSCAR EtherCAT Master_Slave

The N-EMB-120 is a high-performance industrial platform featuring MAX®10 FPGAs. MAX 10 has a built-in sufficient RAM capacity, and since you can use FLASH for both config ROM and ROM, you can realize a custom CPU with one chip by using Nios® II. It is equipped with external SDRAM (32MByte x 16bit) and QSPI FLASH (521Mbit), but it can also be expanded according to the software application capacity. Since two 10/100 PHYs are installed on the FPGA side, it is possible to use Altera's TSEMAC IP. The board can be used in a variety of EtherCAT (hardware master and slave) applications. Hardware master: It is possible to evaluate our hardware master. It was developed as a retrofit to the existing CPU board to realize "Instant EtherCAT". Slave: It can also be used as a slave by mounting BECKHOFF's EtherCAT slave IP on the Ethernet on the FPGA side.

View Details Right arrow Right arrow
/

N-EMB-500 RUFE ASSP BOARD

N-EMB-500-A/B is an evaluation platform for developing in-house ASSPs and dealing with discontinued ICs. It features the MAX® 10 10M08SA FPGA, which can operate on a single 3.3V power supply and has a built-in configuration ROM, enabling single-chip FPGA operation. The MAX® 10 FPGA supports dual-boot configuration and can implement Nios II processors. You can also utilize the analog functions of the MAX® 10 FPGA to manage the board's power sequencing and power management. General-purpose LEDs, DIP switches, and push switches can be freely controlled from the MAX® 10 FPGA through HDL coding.Features when combined with a baseboard:Built-in USB Blaster II: You can start development immediately without needing a separate FPGA programming device (USB Blaster II). Simply connect a USB cable between your PC and the baseboard to perform operations equivalent to a USB Blaster II. This allows programming the FPGA, GUI-based FPGA control using the System Console, and internal FPGA signal analysis

View Details Right arrow Right arrow
/

Silicom FPGA SmartNIC N5013/N5014 Series

The Silicom N5013/N5014 FPGA SmartNIC, based on the Stratix® 10 DX 2100 FPGA, is a high-performance programmable PCIe server adapter. It features 100Gbps quad-port Ethernet and 8GB HBM2 memory, providing 512GB/s of total aggregate bandwidth. Use cases include NFV, MEC, cybersecurity, high-performance computing, finance, and mobile access and core networks.The N5014 is equipped with 2 x Intel E810 for a standardized interface between FPGA and the host system providing the full range of features of these controllers on the host side.

View Details Right arrow Right arrow
/
Offerings Image

VF370 3U OpenVPX Single Board Computer (SBC)

The VF370 3U OpenVPX SBC with an Atom® processor, Altera Cyclone® V FPGA and VITA 57 FMC site, provides scalable processing power and flexible IO options for reduced SWaP applications.

View Details Right arrow Right arrow
/
Showing 10-14 of 14 Offerings
