DE25-Standard Development Kit

DE25-Standard - The newest generation dev. kit for Altera ® University Program!Designed to address the applications requirements for digital logics, embedded systems, and robotics, the DE25-Standard development kit takes advantage of the Altera® Agilex™ 5 SoC FPGA with 138K LEs to deliver 2.5x performance breakthrough and advanced feature sets such as 1GB DDR4 32-bit data bus, 64MB SDRAM, 8-channel ADC header, GPIO header, an HSMC high-speed connector, and black and light mini LCD, etc. A rich set of input and output features, such as robust switches, LEDs, seven-segment displays, and commonly-used I / O interfaces are included to meet the needs of teaching and experiments.

View Details Right arrow Right arrow
/
Offerings Image

Flapmax FLAP-0 AI CubeSat Dev Kit

AI-native CubeSat development kit family for STEM, research, and sovereign space missions.

View Details Right arrow Right arrow

InfiniVision: Multi-Camera Frame Grabbing

The InfiniVision IP for Gidel FPGA grabber boards is designed for synchronized image acquisition from multiple cameras (100+). Its innovative architecture offers efficient data acquisition for high-bandwidth and high-frame-rate applications, as well as inline real-time compression. InfiniVision supports GigE Vision, CoaXPress, Camera Link, and proprietary user camera protocols.

View Details Right arrow Right arrow
/

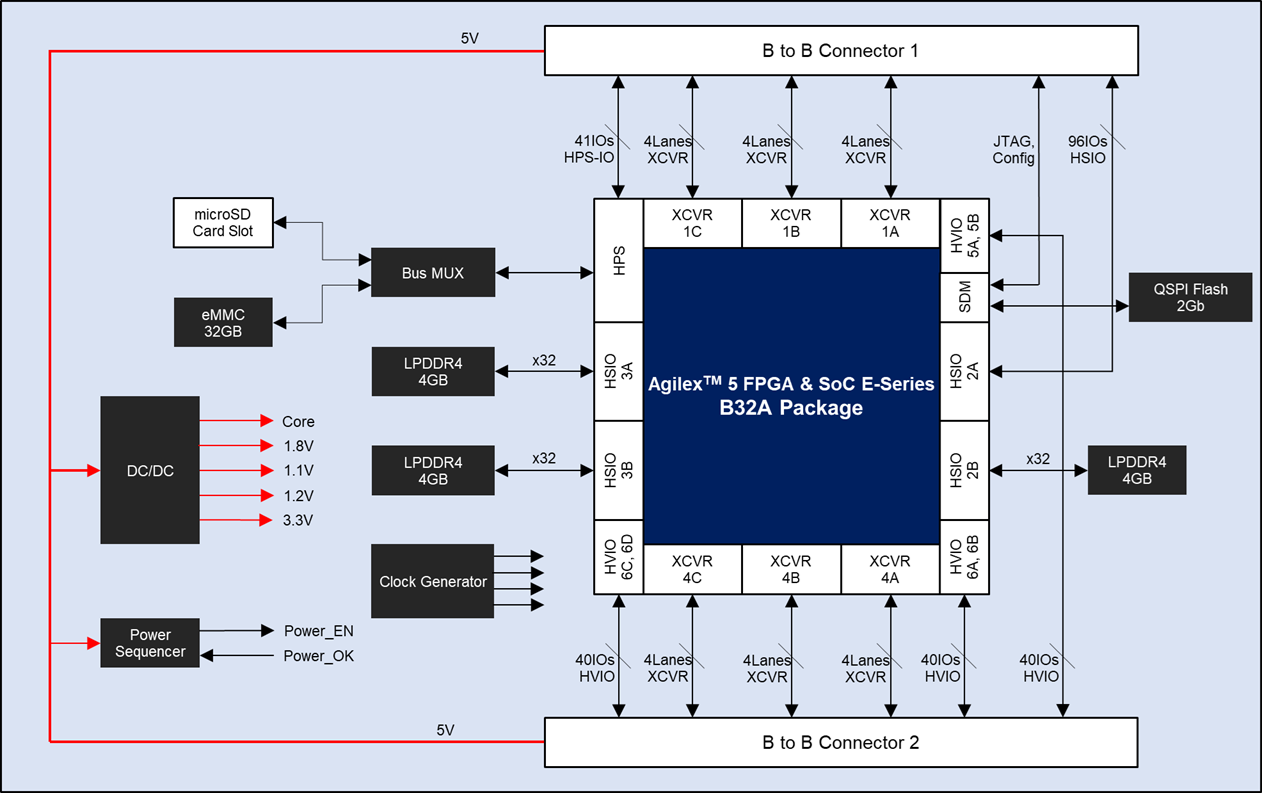

KEIm-A5ESoM

In recent years, FPGA devices have become increasingly low-voltage and high-speed, making it extermely difficult to development boards to mount them. As a result, product development times are getting longer and development costs are increasing. Delays in product releases can also lead to significant losses. The KEIm-A5ESoM reduces the burden of development and contributes to early product release.The KEIm-A5ESoM is a System-on-Module (SoM) powered by Agilex™ 5 SoC FPGA E-Series. The SoM board is equipped with 4GByte LPDDR4 memory for HPS, dual channels of 4Gbyte LPDDR4 memory, 32GByte eMMC memory for storage, 2Gbit QSPI flash as configuration memory.By using the KEIm-A5ESoM, it is possible to use the latest FPGA devices with minimal risk and development time.

View Details Right arrow Right arrow

MitySBC-A5E: Agilex™ 5E Single Board Computer

The MitySBC-A5E is a single board computer featuring an Altera Agilex™ 5 SoC FPGA E-Series and includes up to 656KLE FPGA fabric, dual core Cortex-A55 + dual core Cortex-A76, on-board power supplies, and memory subsystems.

View Details Right arrow Right arrow
/

MitySOM-A5E Mini Development Kit: Agilex™ 5E Development Kit with "Mini" SOM

Development Kit supports Critical Link’s MitySOM-A5E Mini modules, a family of system on modules designed around the Altera Agilex™ 5 E-Series FPGA.

View Details Right arrow Right arrow
/

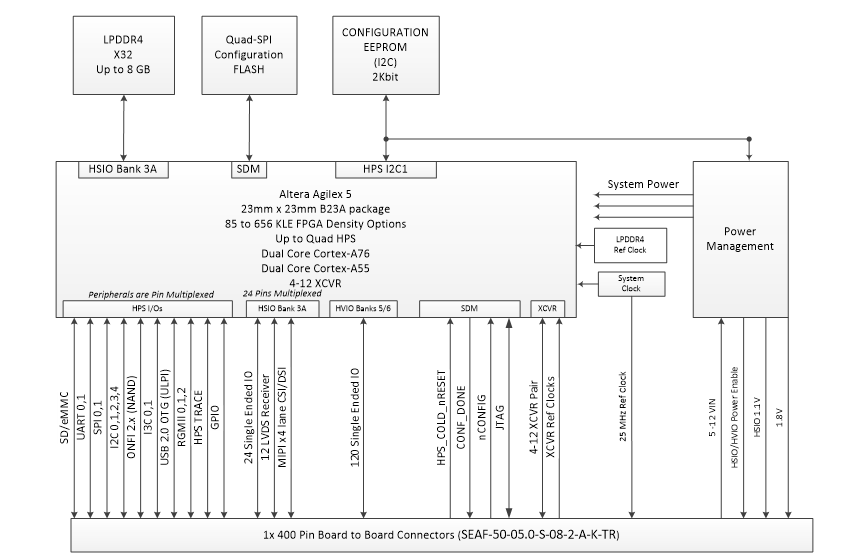

MitySOM-A5E Mini: Agilex™ 5E System on Module "Mini"

The MitySOM-A5E Mini is a system on module featuring an Altera Agilex 5E SoC (System on a Chip) and includes up to 656KLE FPGA fabric, dual core Cortex-A55 + dual core Cortex-A76, on-board power supplies, and memory subsystems. The Altera Agilex 5 delivers 2.5x the performance at 50% less power consumption versus the Cyclone V SoC.

View Details Right arrow Right arrow
/

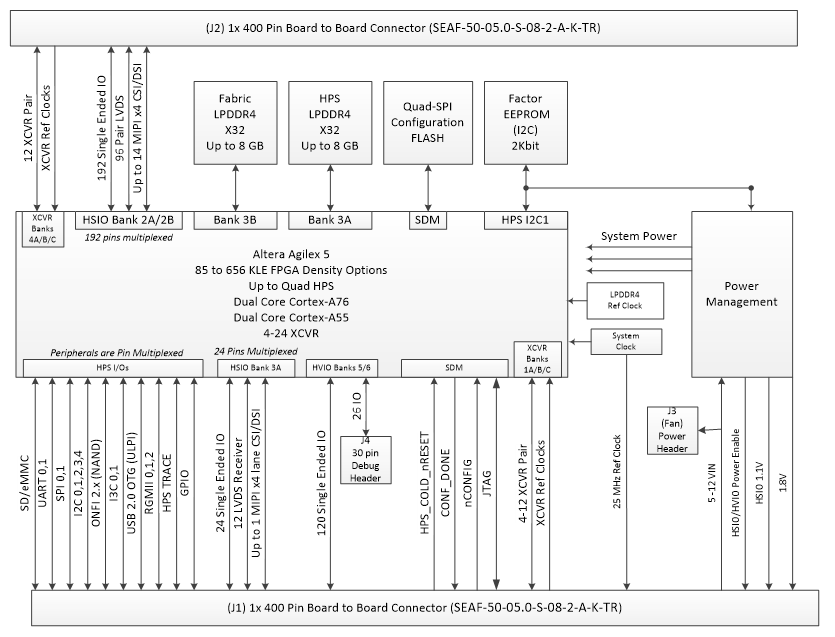

MitySOM-A5E Standard: Agilex™ System on Module "Standard"

The MitySOM-A5E Standard is a system on module featuring an Altera Agilex 5E SoC (System on a Chip) and includes up to 656KLE FPGA fabric, dual core Cortex-A55 + dual core Cortex-A76, on-board power supplies, and memory subsystems. The Altera Agilex 5 delivers 2.5x the performance at 50% less power consumption versus the Cyclone V SoC.

View Details Right arrow Right arrow
/

PCIe x16 Lanes Crossover adapter board for NVMe SSD (AB18-PCIeX16)

The AB18-PCIeX16 adapter board supports PCIe Gen4, making it ideal for use with high-speed NVMe Gen4 SSDs. It enables seamless evaluation of NVMe IP core series and provides a convenient interface for testing and development with Altera FPGA platforms. This adapter board simplifies the integration of NVMe SSDs, optimizing performance for high-throughput applications in real-time systems.

View Details Right arrow Right arrow
/
Showing 10-18 of 20 Offerings
