Agilex™ 3 Development Kit: iG-G71D

The iG-G71D is a compact and feature-rich development kit built to evaluate Altera® Agilex™ 3 SoC FPGA solutions. It offers comprehensive connectivity with 2.5G and Gigabit Ethernet, USB 3.0/2.0 via Type-C, PCIe Gen3 x4, and high-speed expansion through FMC+ and PMOD connectors. With additional interfaces including JTAG and a 20-pin HPS header (I2C, SPI, GPIOs), the G71D kit is ideal for prototyping embedded systems, industrial networking, and low-power edge applications.

View Details Right arrow Right arrow
/

Agilex™ 3 SoC FPGA SoM: iG-G71M

The iAgilex™ 3 is a compact and power-efficient System on Module built on the Agilex™ 3 C-Series FPGA with M16A package, designed for cost-sensitive, low-power edge applications. Featuring 4GB LPDDR4 (expandable to 8GB), 32GB eMMC storage, and 4 transceivers up to 12.5Gbps, it delivers up to 135K logic elements in a 50mm x 60mm form factor. With integrated PCIe Gen3 support and flexible memory and flash options, the G71M is ideal for industrial control, vision processing, and embedded computing at the edge.

View Details Right arrow Right arrow
/

Agilex™ 5 Development Kit: iG-G58D

The iG-G58D is a feature-rich development kit designed to evaluate and accelerate designs on Altera® Agilex™ 5 SoMs. It offers robust connectivity with PCIe Gen4 x4, dual Ethernet (2.5G and Gigabit), USB 3.0/2.0 via Type-C, and high-speed expansion through FMC+, PMOD, and QSFP+ connectors. With support for HDMI IN/OUT, SDI IN/OUT, DisplayPort, and comprehensive debug interfaces, the G58D platform is ideal for prototyping AI, vision, and networking applications at the edge.

View Details Right arrow Right arrow
/

Agilex™ 5 SoM: iG-G58M

The iW-RainboW-G58M is a compact, high-performance System on Module (SoM) based on Agilex™ 5 E-Series SoC FPGA, designed to meet the demands of edge AI, high-speed networking, and embedded computing applications. Featuring compatibility with both Group A and B B32A package variants (from A5E 065 to A5E 008), the SoM integrates a dual-core Arm® Cortex®-A76 processor running up to 1.8 GHz alongside a dual-core Cortex-A55 at 1.5 GHz, delivering powerful heterogeneous processing capabilities. It supports up to 656K logic elements in the FPGA fabric and includes 2GB LPDDR4 for HPS and 4GB LPDDR4 for FPGA logic, making it well-suited for low-latency, compute-intensive tasks.The module offers 24 transceivers operating up to 28Gbps, enabling high-speed data movement in bandwidth-sensitive applications such as 5G edge, video analytics, and defense. It also includes an integrated 2.5G Ethernet PHY, USB ULPI, 16GB eMMC (expandable), and a rich set of I/Os including LVDS, HVIO, RGMII, USB 3.0, S

View Details Right arrow Right arrow
/

Agilex™ 5 SOSA-aligned 3U VPX Plug-in Module (Payload Profile)

The Agilex™ 5 SOSA-aligned 3U-VPX Plug-in Module (Payload Profile) is a compact, rugged FPGA compute card for aerospace and defense applications. Powered by Altera Agilex™ 5 SoC FPGA, it delivers high-performance processing with SOSA interoperability. The module supports high-speed PCIe Gen3, multi-lane Ethernet, MT Ferrule optical I/O, and wideband ADC/DAC for real-time data capture and processing.

View Details Right arrow Right arrow
/

Agilex™ 5 SOSA-aligned 3U VPX Plug-in Module(Switch Profile)

The Agilex™ 5 SOSA-aligned 3U-VPX Plug-in Module (Switch Profile) is a rugged embedded switch solution designed for aerospace and defense applications requiring high-speed VPX backplane switching. Powered by an Altera Agilex™ 5 FPGA, it delivers multi-lane PCIe Gen3 and high-speed Ethernet switching across the VPX backplane with MT Ferrule optical I/O, supporting seamless data movement in real-time systems.

View Details Right arrow Right arrow
/

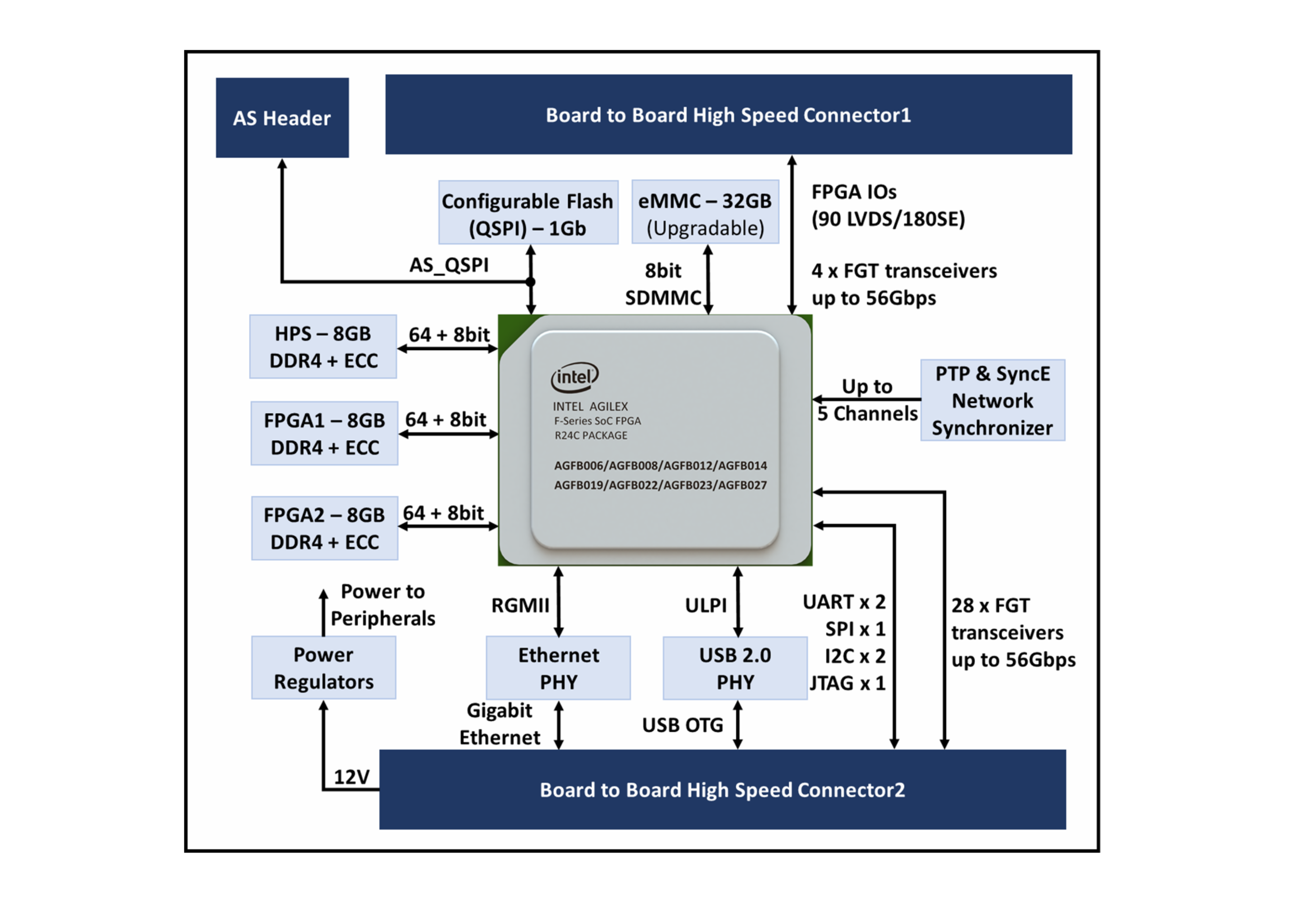

Agilex™ 7 (R24C) SOSA-aligned 3U VPX Plug-in Module

The Agilex™ 7 R24C SOSA-aligned 3U-VPX Plug-in Module is a compact, rugged compute solution for aerospace and defense systems. Powered by the Altera Agilex™ 7 R24C SoC FPGA with a quad-core ARM Cortex-A53 processor, it delivers high-performance signal processing and low-latency data handling with SOSA interoperability. The module supports high-speed PCIe Gen3, 40G/10G/1G Ethernet, SDI and optical I/O through Firefly connectors, enabling real-time embedded connectivity in mission-critical environments.

View Details Right arrow Right arrow
/

Agilex™ 7 (R24C) SOSA-aligned 3U VPX Plug-in Module (Payload Profile)

The Agilex™ 7 R24C 3U-VPX Module is a compact, rugged computing solution featuring Altera’s high-performance FPGA and quad-core ARM Cortex-A53 processor. Designed for aerospace and defense, it supports high-speed connectivity including 40G/10G/1G Ethernet, PCIe Gen3 and up to 25G Ethernet with optical transceivers, delivering powerful performance for real-time edge computing.

View Details Right arrow Right arrow
/

Agilex™ 7 R24C Development Kit: iG-G51D

The iWave Agilex™ 7 R24C Development Kit offers a powerful platform for evaluating Agilex FPGAs with support for PCIe Gen4, DDR5, and high-speed transceivers. It enables quick prototyping and seamless application integration for edge compute, networking, and data acceleration use cases.

View Details Right arrow Right arrow
/
Showing 1-9 of 88 Offerings
