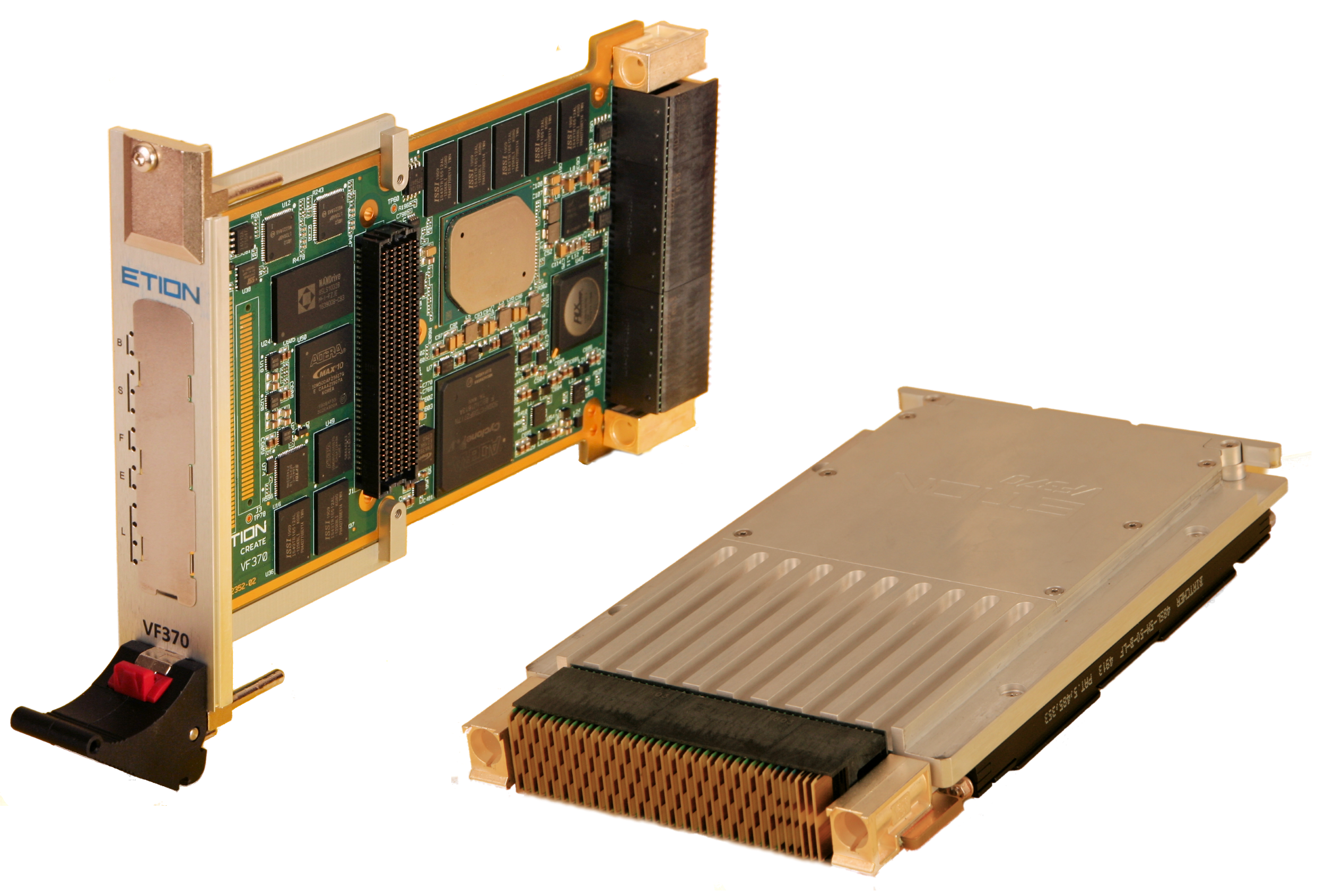

VF370 3U OpenVPX Single Board Computer (SBC)

Etion Create Pty (Ltd)

Select

The VF370 is a 3U OpenVPX Single Board Computer (SBC) module that utilises the Atom® E3900 series of embedded processors, Altera Cyclone® V FPGA technology and a FMC mezzanine site, to provide a module with scalable processing power and flexible IO options for reduced Size, Weight and Power (SWaP) applications.

Key Features

  • FPGA and Processor combination
  • FMC site for flexible IO options
  • Reduced Size, Weight and power (SWaP)
  • Front panel and Backplane IO options
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family MAX® 10 FPGA, Cyclone® V GX FPGA
Offering Status Production
Device OPN(s) on Board 10M08SCU169I7G;10M50DAF256I7G;5CGXFC7D6F27I7N
Form Factor 3U OpenVPX
Power 16 Watt
Interfaces PCIe, SATA, USB3, Ethernet, RS422/485, I2C, GPIO, LVDS, HSSI
DP/HDMI, HD Audio
Memory DDR3
Connectors R-VPX VITA 46
Switches & LEDs Front panel LEDs
Latest Quartus Version Supported 20.1.1

VF370 FPGA Processing card with board support package and User Manual
