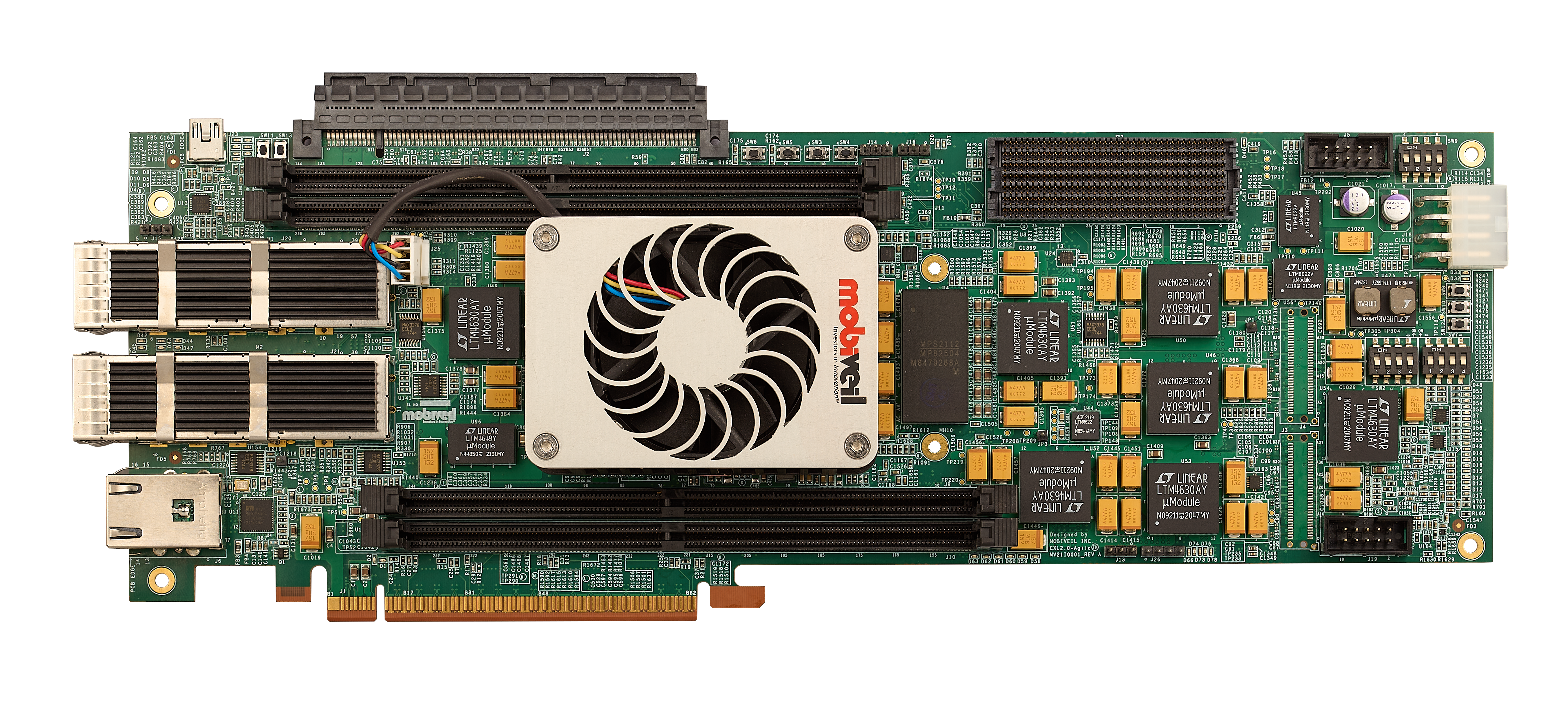

A high-performance PCIe® Gen6 add-in accelerator card based on Agilex I-Series FPGA, designed for CXL 2.0 applications enabling memory coherency, AI/ML acceleration, and high-speed data processing. Mobiveil’s CXL2.0-Aglx™ Accelerator is a PCIe® Gen6 full-length, full-height add-in card powered by Agilex I-Series FPGA with quad-core Arm Cortex-A53 processors. It supports up to 64 GB ECC DDR4, multiple PCIe Gen6 x8 and x16 interfaces, CXL 1.1/2.0 compliance, and versatile connectivity options including QSFP-DD and FMC+. Ideal for AI/ML, genomics, financial computing, media processing, and database analytics, it provides a flexible, programmable platform with low-latency, high-throughput architecture. The design supports auxiliary power, advanced debug, and development tools, making it a robust choice for next-gen data center and accelerator applications.

View Partner Website

Partner Product Page

Contact Now

Contact Mobiveil Inc.

LeadSource

ASAP Account ID

Record Type Name

Key Features

Mobiveil’s CXL-Aglx Accelerator platform is a PCIe® Gen6 add-in card with latest Agilex I series FPGA. It supports High-Performance Applications, such as Accelerators, Artificial Intelligence and Machine Learning.
Ideal platform to run CXL applications that maintains memory coherency between devices, allowing resource sharing for higher performance
Suitable for emerging data processing applications in AI, media, image and language processing

Offering Brief

Device Family	Agilex® 7 FPGAs and SoC FPGAs I-Series, Agilex® 7 FPGAs and SoC FPGAs F-Series
Offering Status	Production
Device OPN(s) on Board	AGIB027R31B2E2V;AGFA012R24B1E1V
Form Factor	312mm x 111mm
Power	Less than 100W
Interfaces	PCIe Gen6x16 at edge fingers PCIe Gen6 x 8 at PCIe Edge Connector Two PCIe Gen6 x 8 at CXL IO connector (CXL Host slot)
Memory	Supports up to 64GB of DDR4 memory for FPGA Logic and Processor Sub-system
Connectors	PCIe Gen6 x 8 at PCIe Edge Connector Two PCIe Gen6 x 8 at CXL IO connector (CXL Host slot)
Switches & LEDs	Yes
Latest Quartus Version Supported	24.3.1
