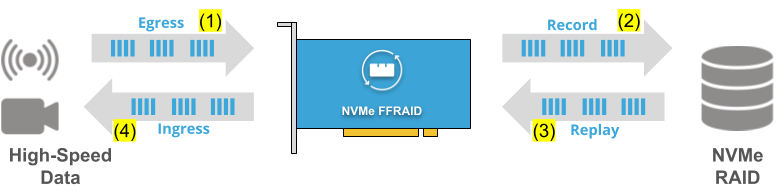

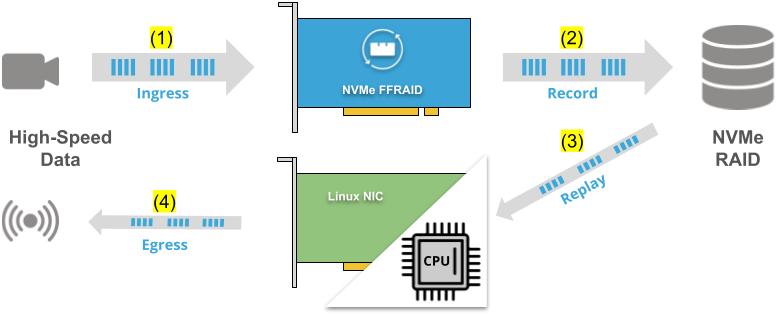

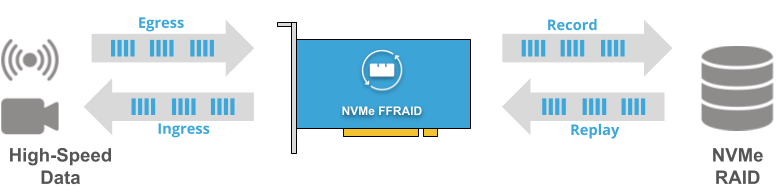

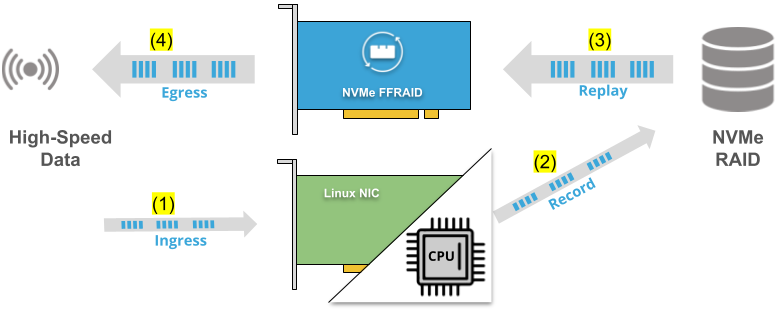

The MLE NVMe Fast FPGA RAID Accelerators transfer large data from multiple sensors to an NVMe SSD RAID at up to 400 Gbps. Its channel-based architecture supports data-in-motion processing, scalability in bandwidth and storage, and high-accuracy IEEE time synchronization for cascading multiple systems. Compatible with Linux Software-RAID, it enables high-speed recording with flexible replay options.

View Partner Website

Contact Now

Contact

LeadSource

ASAP Account ID

Record Type Name

Key Features

Scalable from 100Gbps to 400Gbps, or more
Cascading of multiple systems with time-sync
Start-Pause-Stop Data Recording
Pre-trigger Data Recording in circular buffers
Adaptable signal front-ends
Striping mode (RAID 0)
Striped and mirrored mode (RAID 0+1)
Read/write compatible with Linux Software-RAID
Compatible with TGC OPAL

Offering Brief

Device Family	Agilex® 5 FPGAs and SoC FPGAs D-Series, Agilex® 5 FPGAs and SoC FPGAs E-Series, Agilex® 7 FPGAs and SoC FPGAs F-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Agilex® 7 FPGAs and SoC FPGAs M-Series
Offering Status	Development
Demo	Yes
Integrated Testbench	No
Evaluation License	No
Design Examples Available	Yes
Compliance	No
Latest Quartus Version Supported	25.1.1
Development Language	Encrypted Verilog, Encrypted VHDL, Verilog, VHDL
