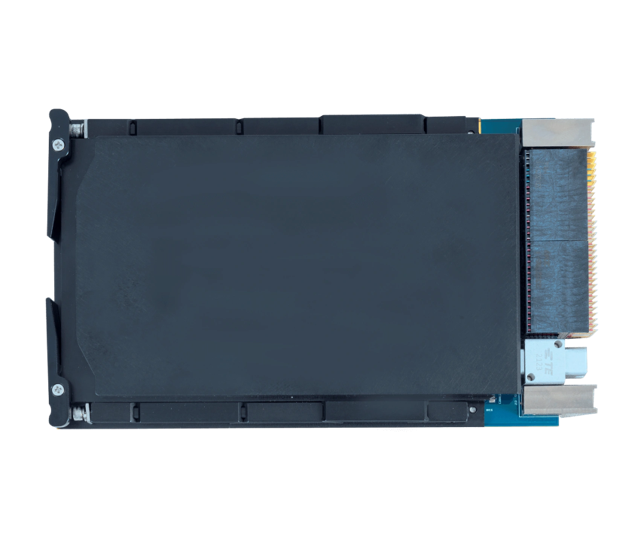

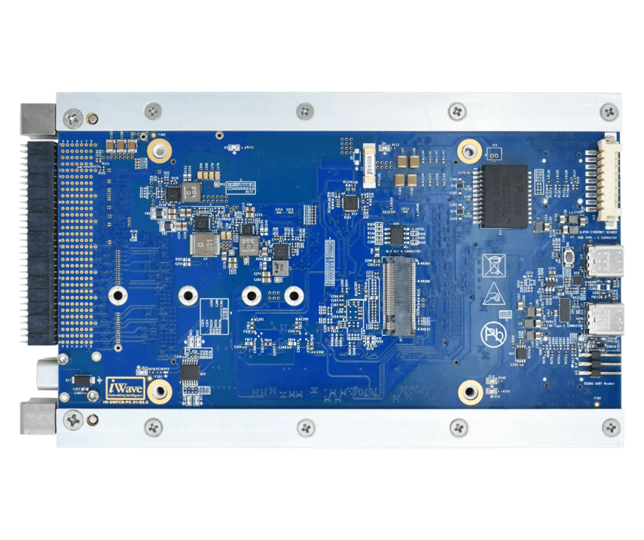

"The Agilex™ 9 Wide-band Payload 3U-VPX Plug-in Module is a rugged, high-performance RF and compute platform designed for military and aerospace applications such as radar, electronic warfare, and secure wideband communication. Powered by the Altera Agilex™ 9 Direct RF SoC FPGA (AGRW014), the board integrates a Quad-core 64-bit Arm Cortex-A53 processor up to 1.4 GHz and up to 1.437M logic elements, making it ideal for real-time signal processing and data-intensive payload workloads.

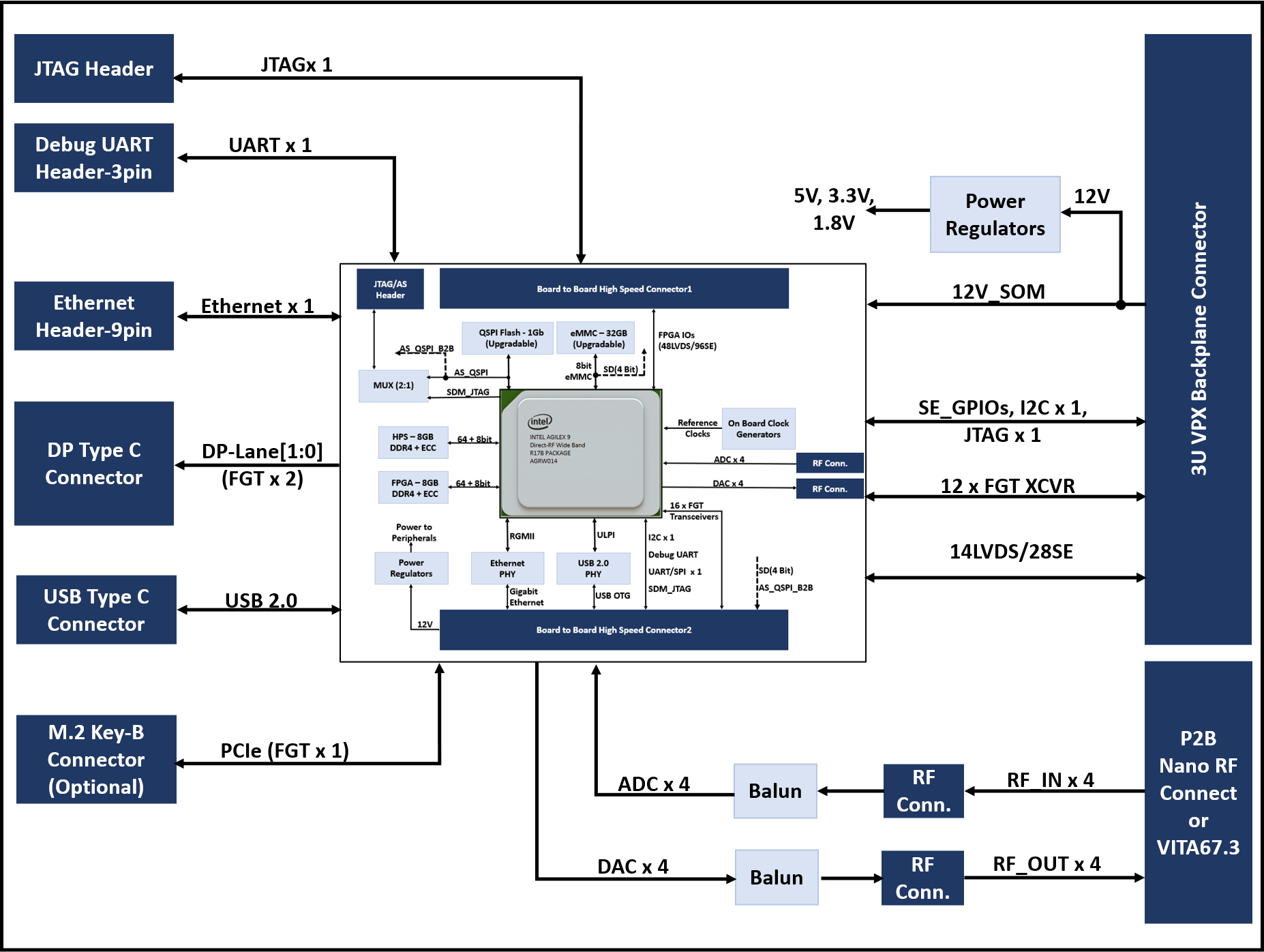

The plug-in module is equipped with 8GB HPS DDR4 ECC, 8GB FPGA DDR4 ECC, along with eMMC and QSPI flash storage, ensuring low-latency performance. VPX front-panel connectivity includes dual QSFP-DD optical cages, USB 2.0 through USB Type-C, Gigabit Ethernet, and Debug UART through a 3-pin header. The backplane supports high-speed transceivers with 40G/10G/1G Ethernet and PCIe Gen3 x8 interfaces, along with trigger and synchronization clock support.
Designed in the 3U-VPX form factor (160mm x 100mm), the solution includes features such as onboard clock generation, temperature monitoring, and system management support for rugged embedded deployments."
