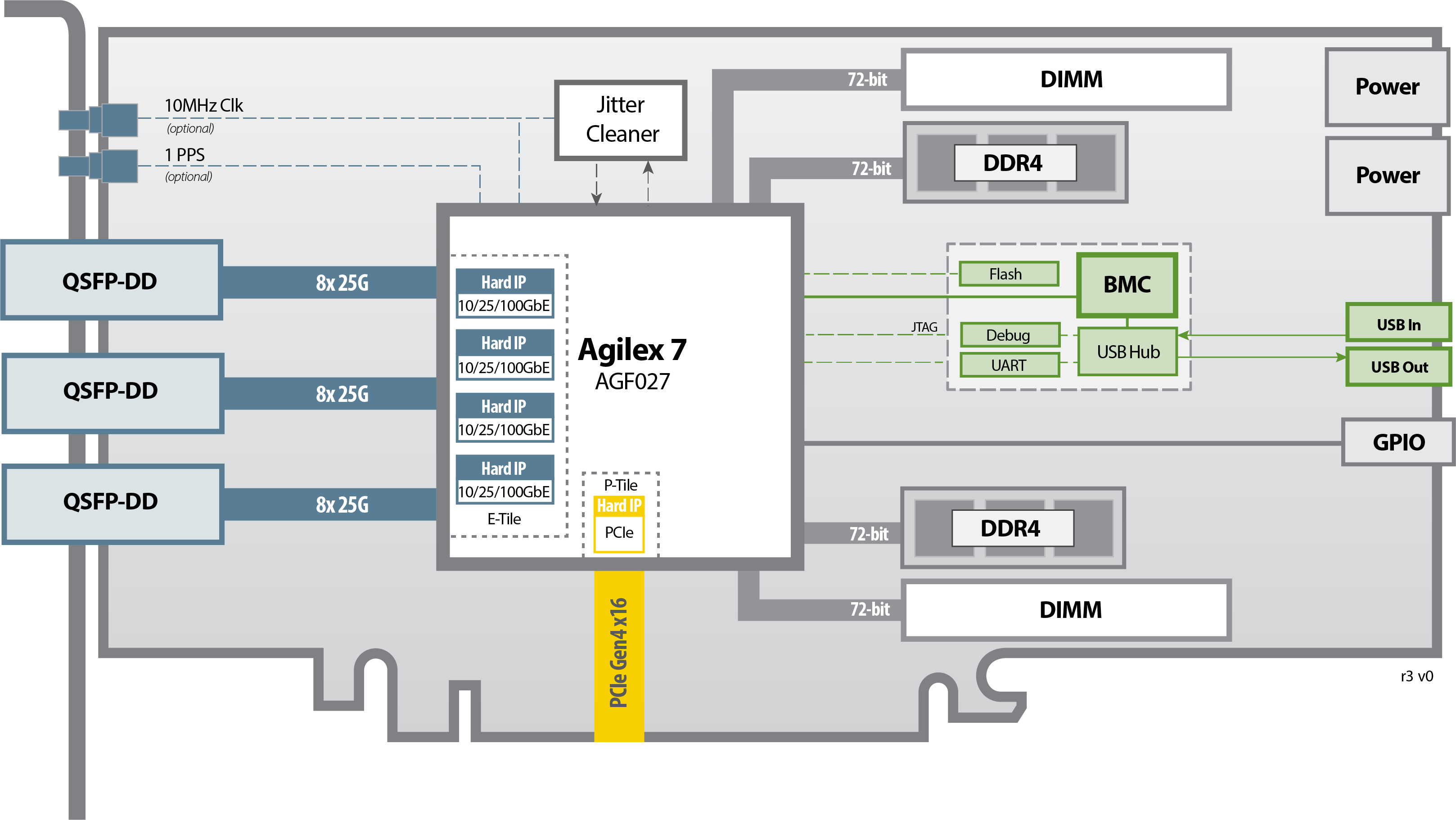

BittWare’s IA-840f is an Agilex® 7-based FPGA card designed to deliver up to 40% higher performance for data center, networking, and edge compute workloads. BittWare maximized I/O features on the card using the Agilex® chip’s unique tiling architecture with three QSFP-DDs (3× 200G) and PCIe Gen4 x16. The card also supports oneAPI, which enables an abstracted development flow for dramatically simplified code re-use across multiple architectures.
BittWare
Key Features
- Agilex® 7 F-Series FPGA (AGF027)
- Quad-core Arm Cortex-A53
- PCIe Form Factor: FHFL, dual slot
- Network Interface: QSFP-DD (3 x 200G)
- Host Interface: PCIe 4.0 x 16
- Up to 96GB DDR4
PCIe card
Documentation (Getting started, hardware, FPGA developer, and BMC guides)
Software development toolkit including PCIe driver, libraries, and board monitoring utilities
Examples and reference design
Ordering Information
IA-840f-0005
from Mouser
