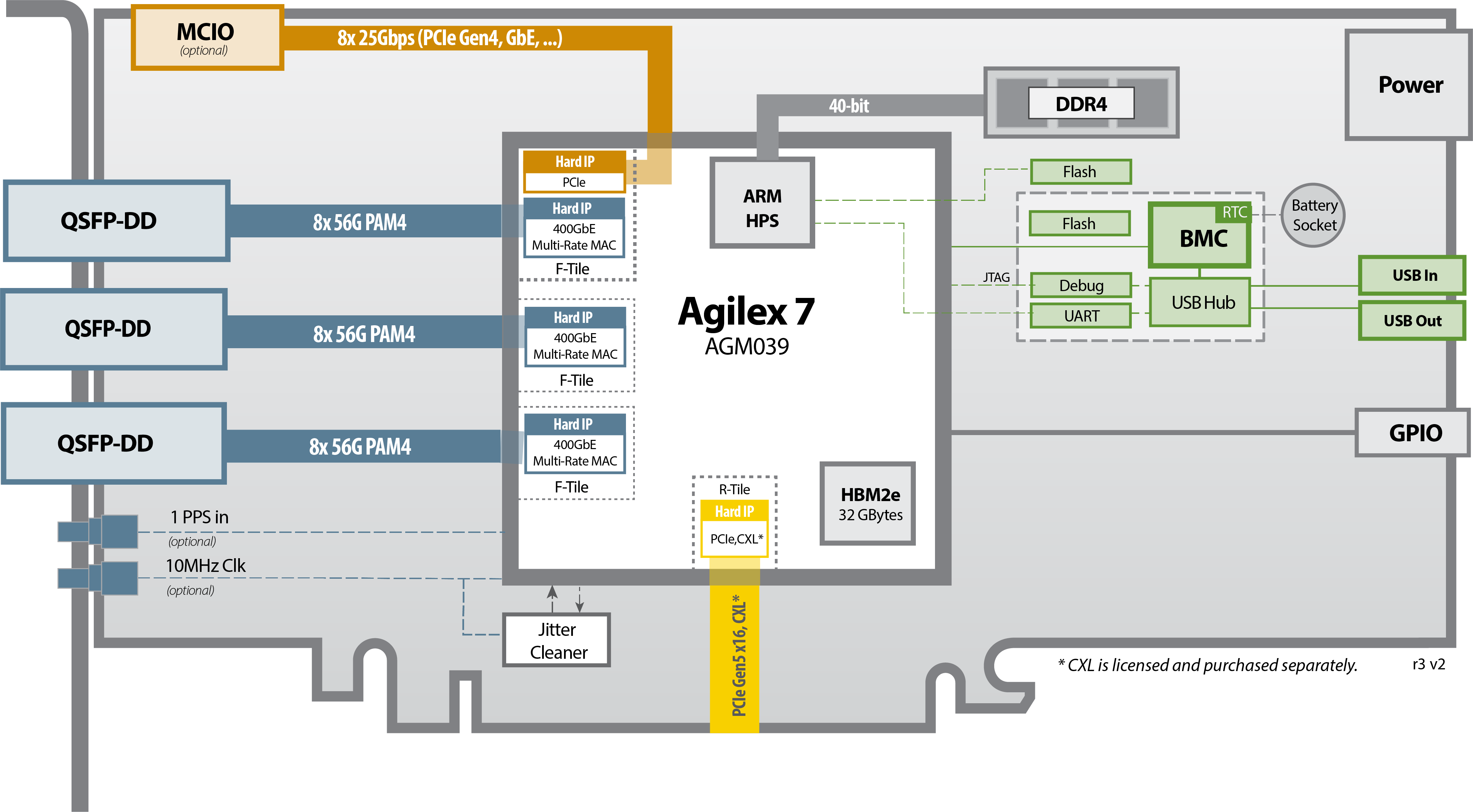

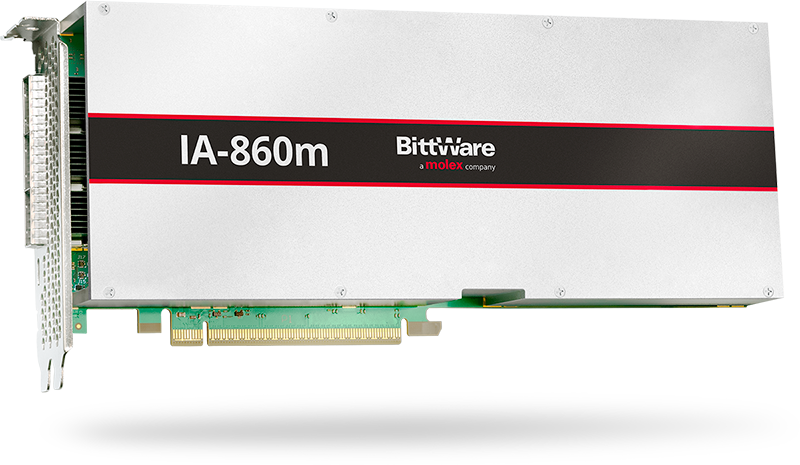

BittWare’s IA-860m is an Agilex® 7 M-series FPGA card optimized for throughput- and memory-intensive applications. The M-series FPGA features an extensive memory hierarchy including integrated high-bandwidth memory (HBM2e) and a hard memory Network-on-Chip (NoC) to maximize memory bandwidth. The IA-860m card provides a balance of I/O and memory, leveraging the Agilex® chip’s unique tiling architecture with QSFP-DDs, PCIe Gen5 x16 with CXL support, and MCIO expansion port for a variety of applications.
BittWare
Key Features
- Agilex® 7 M-Series FPGA (AGM039) with 32GB HBM2e
- Quad-core Arm Cortex-A53
- PCIe Form Factor: FHFL, dual slot
- Network Interface: QSFP-DD (3 x 400G)
- Host Interface: PCIe 5.0 x 16, CXL
FPGA card
BittWare SDK including PCIe driver, libraries, and board monitoring utilities
Documentation (Getting started, hardware, fpga developer, and BMC guides)
Reference design and examples
Ordering Information
IA-860m-0037
from Mouser
