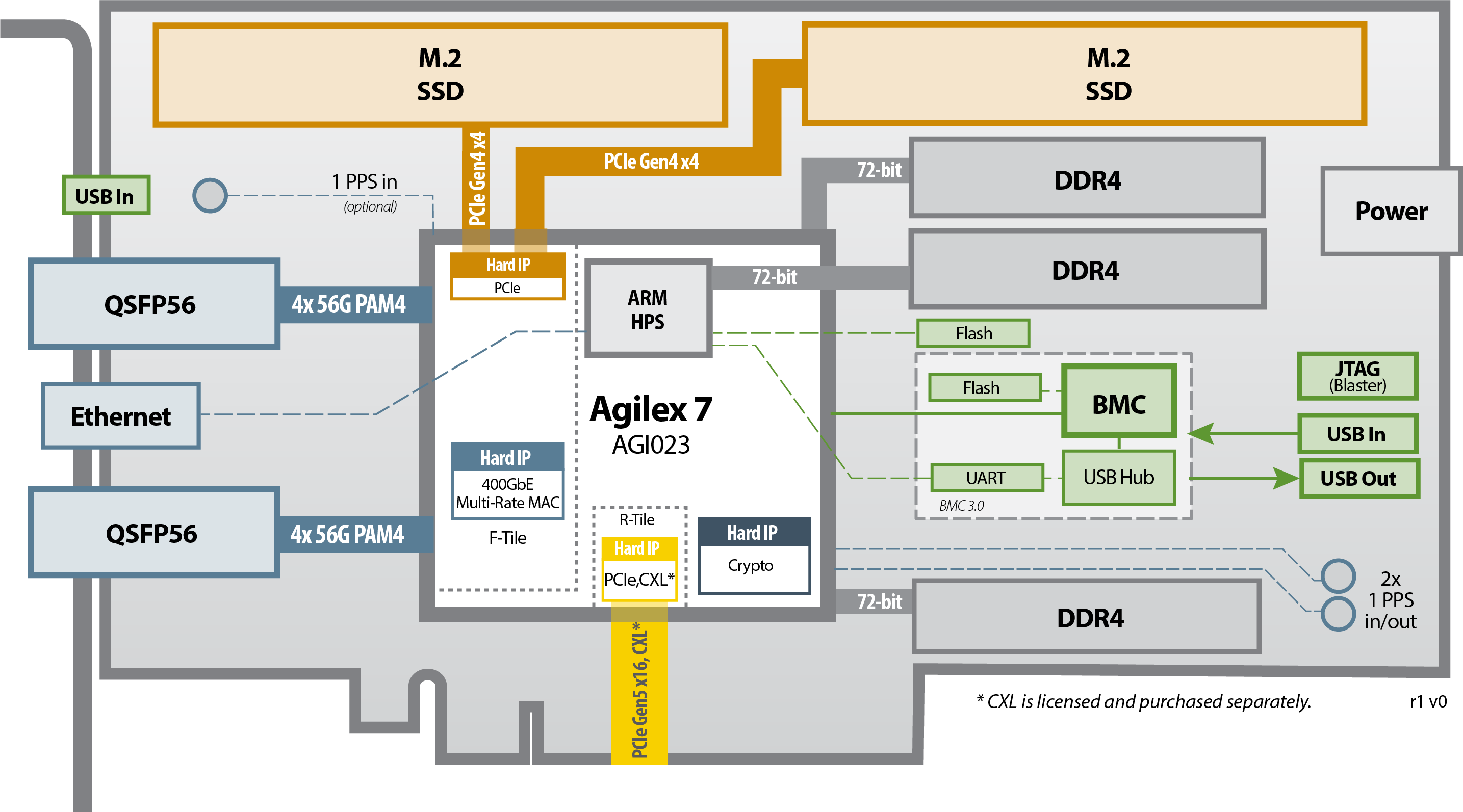

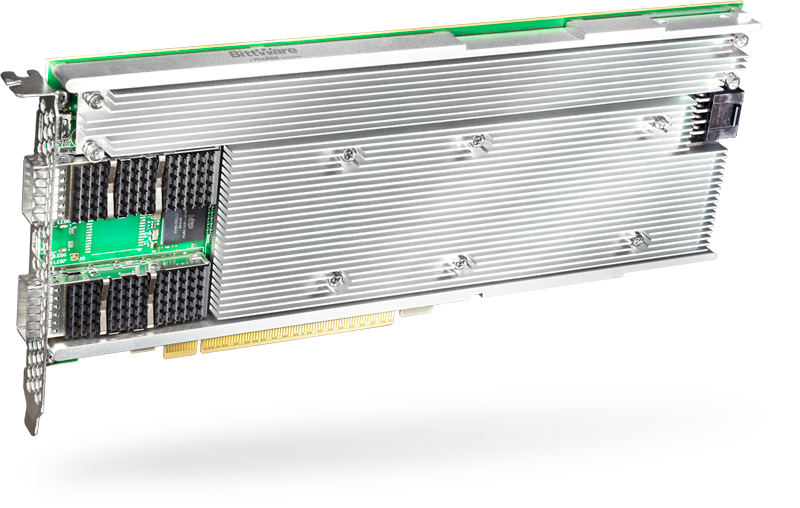

BittWare’s IA-720i is an Agilex® 7 I-series FPGA card designed for building SmartNICs or other accelerators requiring a powerful FPGA in a single-slot form factor. The standard-height, 3/4-length card provides a balance of I/O and memory using the Agilex® chip’s unique tiling architecture with two QSFP56s, DDR4 SDRAM, and PCIe Gen5 x16 for a variety of applications. The card features two M.2 slots supporting enterprise SSDs for data storage.
BittWare
Key Features
- Agilex® 7 I-Series FPGA (AGI023)
- Quad-core Arm Cortex-A53
- PCIe Form Factor: FH3/4L, single slot
- Network Interface: QSFP-DD (1 x 400G or 2 x 200G)
- Host Interface: PCIe 5.0 x 16, CXL
- Up to 64GB DDR4
FPGA card
Documentation (Getting started, hardware, FPGA developer, and BMC guides)
BittWare SDK including libraries and board monitoring utilities
Reference design and examples
Ordering Information
IA-720I-0001
from Direct
