Chevin Technology’s HMAC-SHA256 cryptographic accelerator function is used to securely generate and verify message authentication codes. Message authentication is increasingly required by corporations, government organisations, and individuals to secure communications between sender and receiver. The HMAC – SHA256 authentication function is especially suited for cybersecurity, defense, and aerospace applications, and can be added to existing products, or designed into prototypes The all-RTL solution provides a fast and secure way to calculate a SHA256 hash for any message of any length. When combined with a secret key, it can also construct a HMAC keyed-hash message authentication code, which can be used to protect messages that are sent, and verify those that are received. The HMAC-SHA256 accelerator accepts multiple independent streaming messages/channels and support any number of arbitrary length messages. Number of channels is limited only by the memory re...
Chevin Technology Limited

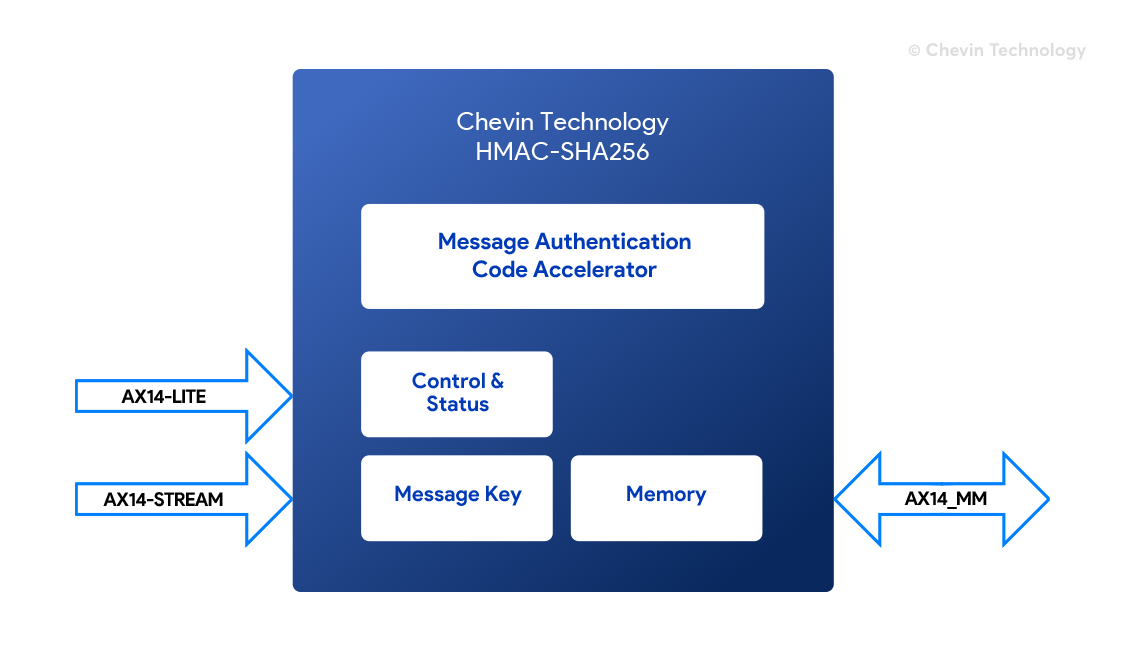

Chevin Technology’s HMAC-SHA256 cryptographic accelerator function is used to securely generate and verify message authentication codes. Message authentication is increasingly required by corporations, government organisations, and individuals to secure communications between sender and receiver. The HMAC – SHA256 authentication function is especially suited for cybersecurity, defense, and aerospace applications, and can be added to existing products, or designed into prototypes The all-RTL solution provides a fast and secure way to calculate a SHA256 hash for any message of any length. When combined with a secret key, it can also construct a HMAC keyed-hash message authentication code, which can be used to protect messages that are sent, and verify those that are received. The HMAC-SHA256 accelerator accepts multiple independent streaming messages/channels and support any number of arbitrary length messages. Number of channels is limited only by the memory resources provided, embedded Block RAM or external DDR. Typical use cases include highly secure RTL solutions where a CPU is unable to meet the required throughput and security performance.
Key Features
- High Throughput, Small Footprint
Offering Brief
Offering Brief
| Device Family | Agilex® 3 FPGA C-Series, Agilex® 5 FPGA D-Series, Agilex® 5 FPGA E-Series, Agilex® 7 FPGA F-Series, Agilex® 7 FPGA I-Series, Agilex® 9 FPGA Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX FPGA, Stratix® III FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA |
|---|---|
| Offering Status | Production |
| Integrated Testbench | Yes |
| Evaluation License | Yes |
| Latest Quartus Version Supported | 25.3.1 |
| Development Language | Encrypted VHDL |
RTL - encrypted source/netlist, Documentation - data sheet and user guide, Simulation - test bench with examples and vectors
Ordering Information
CT-HMAC_SHA256
from Chevin Technology
