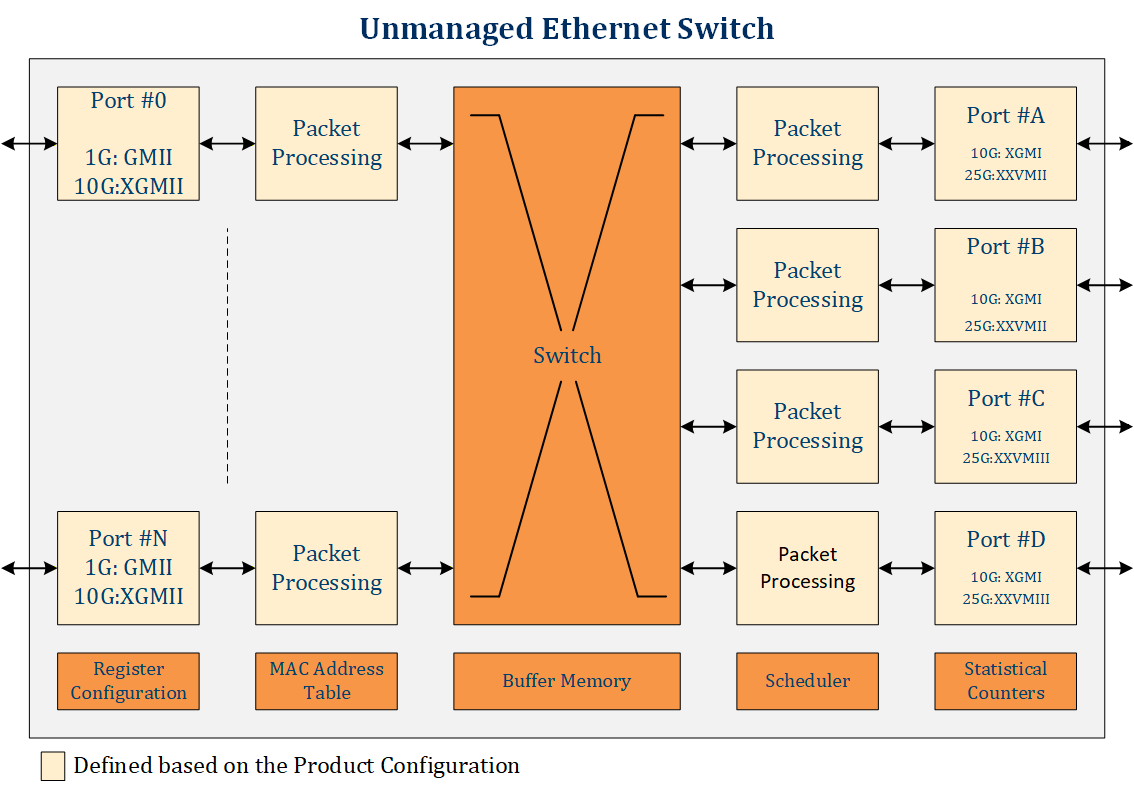

Comcores Ethernet Unmanaged Switch family IP cores provide a variety of configurations, including 1G, 1G/10G, 10G, and 10G/25G options. These IP cores are size-optimized implementations of non-blocking crossbar switches, designed to support wire-speed packet processing and forwarding. These switches feature FCS validation/recalculation, MAC learning/forwarding/aging, VLAN tagging, and they implement a store-and-forward switching architecture. The number of ports is configurable at compile time, making the solution highly flexible.
Comcores ApS
Key Features
- Automatic MAC address learning and aging
- Support programmable static forwarding entries
- Ethernet Multicast support
- Full duplex Ethernet interfaces
- Supports Access port VLAN and Trunk port VLAN operation
- Configurable for up to 16 + 4 ports at compile time
- Supports configurable queuing behaviour, including round-robin and fair queuing
- Compatible with GMII, RGMII, XGMII, and XXVMII interfaces for seamless connection to external Physical Layer devices (PHYs)
- Easy integration with standard Xilinx AXI4 Lite control interface
- Can be implemented with or without an external microcontroller
Offering Brief
Offering Brief
| Device Family | Agilex® 3 FPGA C-Series, Agilex® 5 FPGA D-Series, Agilex® 5 FPGA E-Series, Agilex® 7 FPGA F-Series, Agilex® 7 FPGA I-Series, Agilex® 7 FPGA M-Series, Agilex® 9 FPGA Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX FPGA, Arria® V GT FPGA, Arria® V GZ FPGA, Arria® V ST FPGA, Cyclone® 10 GX FPGA, Stratix® 10 AX FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX FPGA, Stratix® 10 TX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA |
|---|---|
| Offering Status | Production |
| Integrated Testbench | Yes |
| Evaluation License | Yes |
| Latest Quartus Version Supported | 24.3.1 |
| Development Language | Encrypted VHDL, VHDL |
Solid documentation, including User Manual and Release Note
Simulation Environment, including Simple Testbed, Test case and Test Script
Programming Register Specification
Timing Constraints in Synopsys SDC format
Access to support system and direct support from Comcores Engineers
Synopsys SGDC Files (optional)
Synopsys Lint, CDC and Waivers (optional)
Ordering Information
CM_ETHSWI_01_B_F
