Design Gateway’s muNVMe-IP is a high-performance, multi-user NVMe Host Controller IP core designed for Altera FPGA platforms with PCIe Gen4 support. Unlike traditional NVMe solutions that rely on CPUs and software stacks, muNVMe-IP operates entirely in hardware—offering low latency, simplified architecture, and full support for concurrent access by multiple applications. Its efficient design makes it ideal for mission-critical environments such as aerospace, defense, and industrial automation. muNVMe-IP enables up to four independent user interfaces to simultaneously access a single NVMe SSD. Each user can read or write data directly, eliminating bottlenecks typically caused by software-based file system handling. This architecture not only enhances real-time responsiveness but also reduces development effort through provided reference designs, making muNVMe-IP a powerful choice for next-generation NVMe-based storage systems.
DesignGateway Co., Ltd.
Key Features

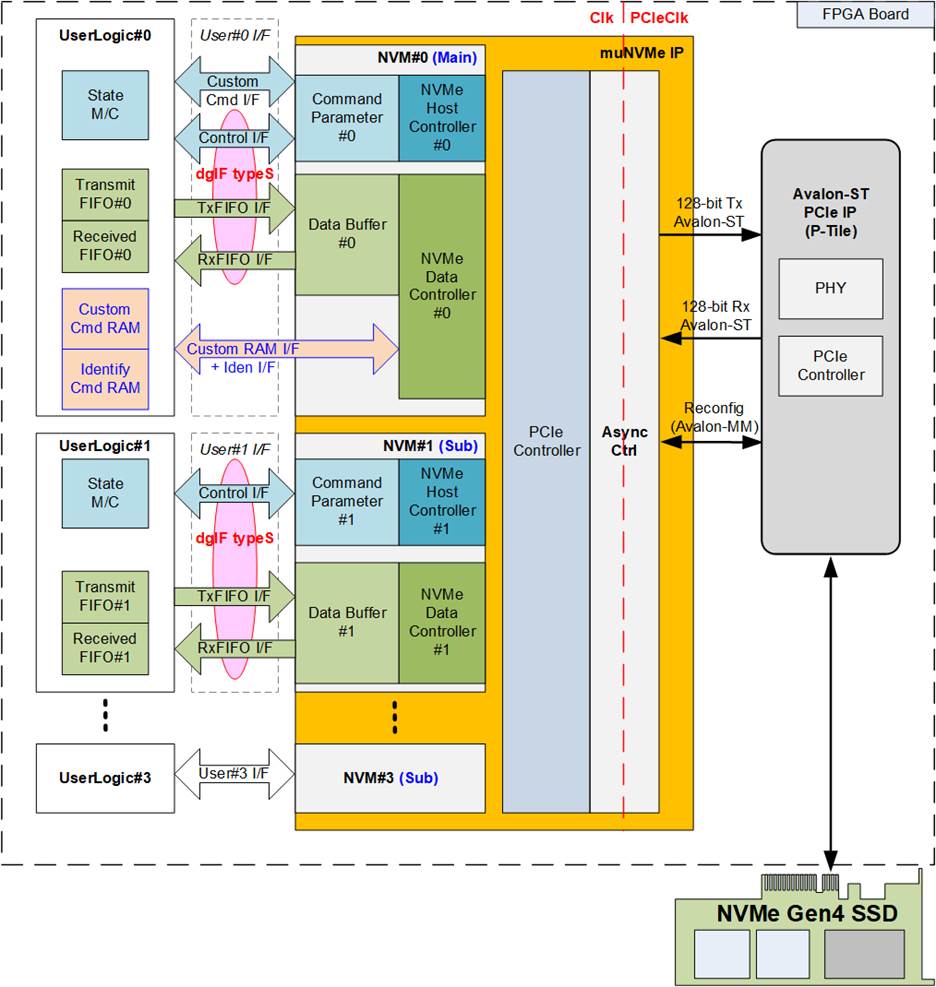

- Multi-user support: Allows up to four independent user interfaces to access a single NVMe SSD simultaneously with hardware-based arbitration and isolation.
- CPU-less operation: Entirely implemented in hardware, removing the need for CPU, software drivers, or external memory.
- High throughput: Achieves consistent high-speed data transfers using PCIe Gen4, ideal for real-time and high-volume applications.
- Seamless integration: Includes reference designs for Altera FPGAs to streamline development and deployment.
Offering Brief
Offering Brief
| Device Family | Agilex® 7 FPGA F-Series, Arria® 10 GX FPGA |
|---|---|
| Offering Status | Production |
| Design Examples Available | Yes |
| Demo | Yes |
| Hardware Platforms Supported | Agilex® 7 FPGA Starter Kit |
| Latest Quartus Version Supported | 23.1.0 |
| Development Language | Encrypted VHDL |
Encrypted IP core
Reference Designs Quartus Project
Ordering Information
muXpressDrive4-IP-A7F
from Direct
muXpressDrive4-IP-A7F
from Macnica
muXpressDrive4-IP-A7F
from Uniquest
