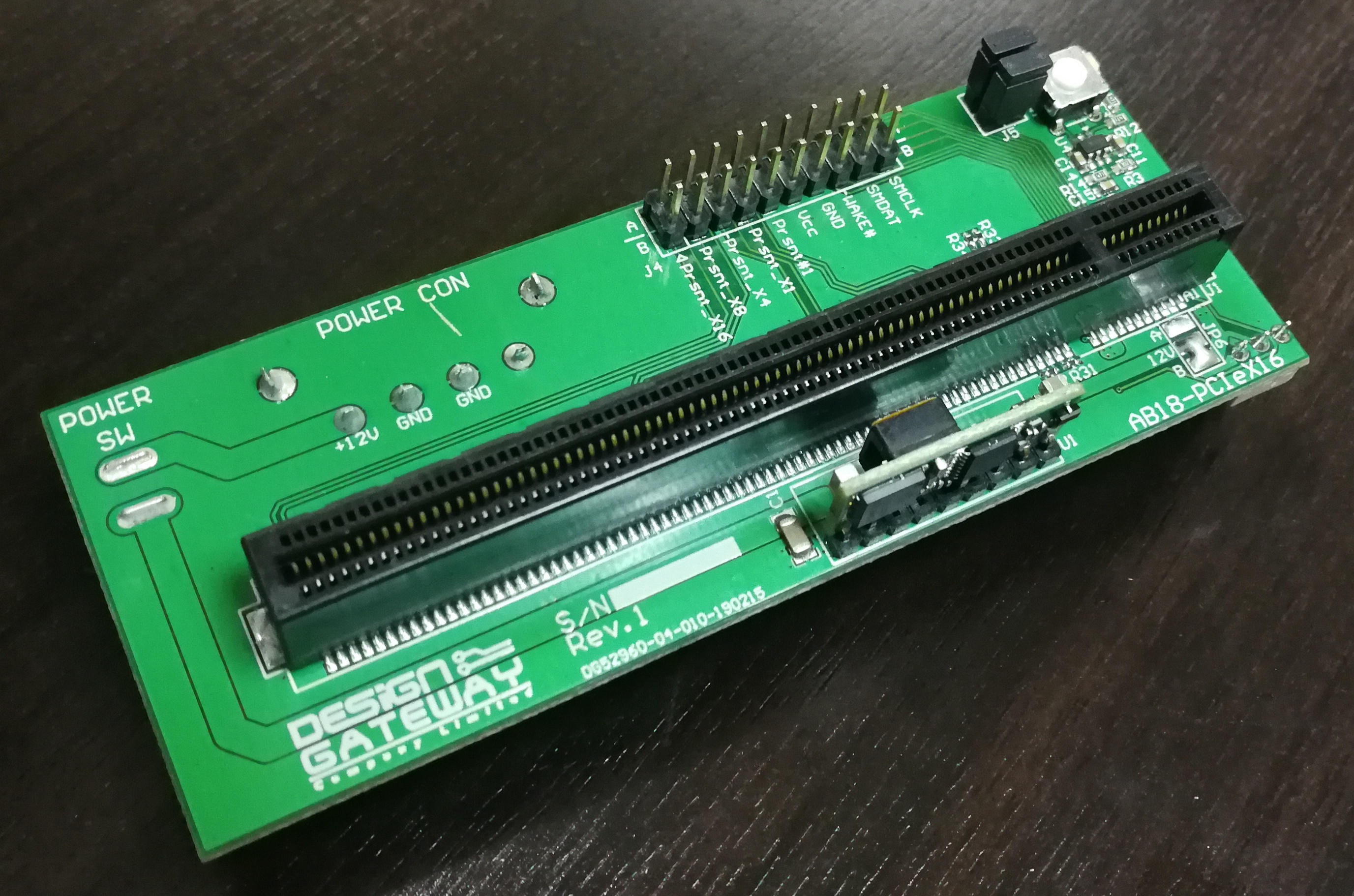

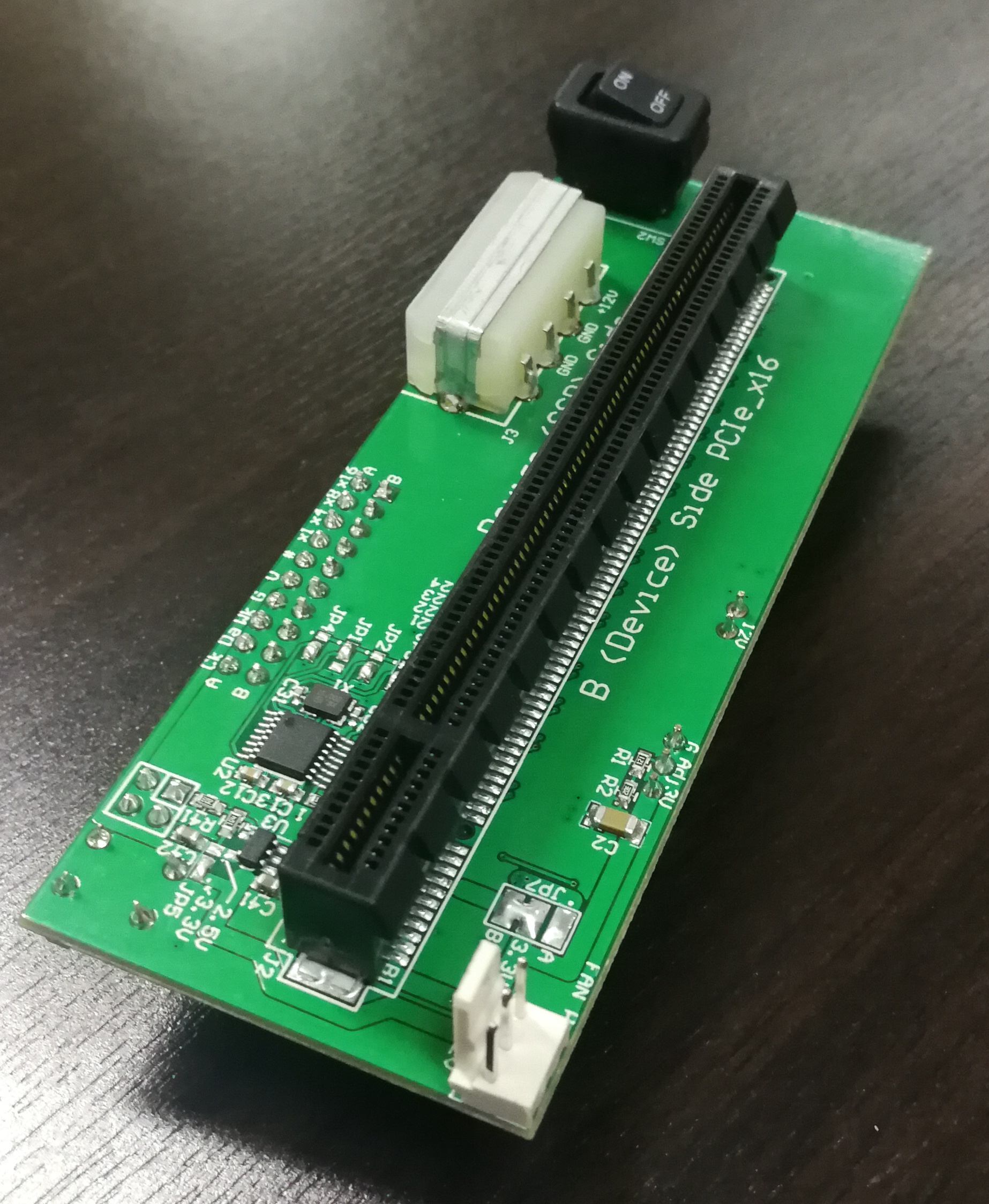

This adapter board supports 1/4/8/16-lane PCIe (PCI Express) and enables conversion between PCIe host and PCIe device. It is compatible with Altera FPGA evaluation boards. The board features two 16-lane PCIe socket connectors—one for connecting to an FPGA board and the other for connecting to an NVMe SSD—with TX and RX pairs internally cross-connected.
DesignGateway Co., Ltd.
Key Features
- Daughter (Adapter) Card with two 16-lane PCIe sockets
- Supports PCIe Gen4 with 16/8/4/1-lane for host and device side connections.
- Includes low-jitter reference clock (100MHz default) for stable operation.
Offering Brief
Offering Brief
| Device Family | Agilex® 5 FPGA E-Series, Agilex® 7 FPGA F-Series, Cyclone® 10 GX FPGA, Stratix® 10 GX FPGA |
|---|---|
| Offering Status | Production |
| Device OPN(s) on Board | 1SG280HU2F50E2VG;AGFB014R24B1E1V;10CX085YF672E5G;A5ED065BB32AE5SR0 |
| Form Factor | 16-lane PCI Express interface |
| Power | +12V ATX power supply |
| Interfaces | Two 16-lane PCI Express interfaces |
| Memory | NA |
| Connectors | 16-lane PCI Express interface |
| Switches & LEDs | Power Switch & Power LED |
| Latest Quartus Version Supported | 23.1.0 |
AB18-PCIeX16 adapter board 1pc
Ordering Information
AB18-PCIeX16
from Mouser
AB18-PCIeX16
from Direct
