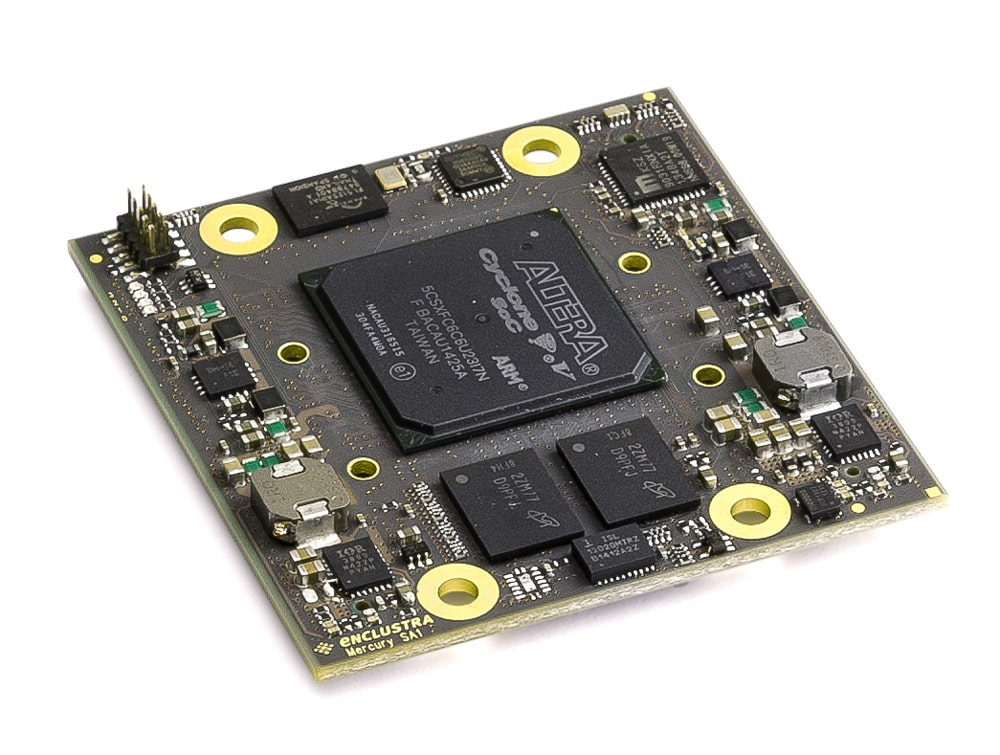

Mercury+ SA2 Cyclone® V SoC Module (SOM)

Enclustra GmbH

Select

The Mercury+ SA2 SoC module integrates Cyclone® V SoC FPGA with DDR3L SDRAM, SPI flash, Ethernet PHYs, and an RTC, delivering a high-performance embedded processing solution. It combines CPU flexibility with FPGA real-time parallel processing power.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Altera Cyclone® V ARM® Processor-based SoC FPGA ARM® dual-core Cortex™-A9 (32 bit, up to 800 MHz) Altera Cyclone V 28nm FPGA fabric 18 ARM peripheral I/Os (2 × CAN, SPI, SDIO, 2 × I2C, 2 × UART) 234 FPGA I/Os (including 32 I/Os shared with USB 3.0 9 MGT transceivers @ 6.144 Gbit/s PCIe® Gen1/Gen2 ×4 Up to 2 GB DDR3L SDRAM 64 MB QSPI flash Gigabit Ethernet Dual Fast Ethernet USB 3.0 device controller USB 2.0 device controller Small form factor (74 × 54 mm) 5 to 15 V supply voltage
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Cyclone® V SX FPGA
Offering Status Production
Device OPN(s) on Board 5CSXFC6C6U23I7N
Form Factor 74 × 54 mm
Power 5 to 15 V
Interfaces Gigabit Ethernet Dual Fast Ethernet USB 3.0 device controller USB 2.0 device controller
Memory Up to 2 GB DDR3L SDRAM 64 MB QSPI flash
Connectors 18 ARM peripheral I/Os (2 × CAN, SPI, SDIO, 2 × I2C, 2 × UART) 234 FPGA I/Os (including 32 I/Os shared with USB 3.0 9 MGT transceivers @ 6.144 Gbit/s PCIe® Gen1/Gen2 ×4 Up to 2 GB DDR3L SDRAM 64 MB QSPI flash Gigabit Ethernet Dual Fast Ethernet USB 3.0 device controller USB 2.0 device controller
Switches & LEDs n/a
Latest Quartus Version Supported 26.1.0

Altera Cyclone® V ARM® Processor-based SoC FPGA ARM® dual-core Cortex™-A9 (32 bit, up to 800 MHz) Altera Cyclone V 28nm FPGA fabric 18 ARM peripheral I/Os (2 × CAN, SPI, SDIO, 2 × I2C, 2 × UART) 234 FPGA I/Os (including 32 I/Os shared with USB 3.0 9 MGT transceivers @ 6.144 Gbit/s PCIe® Gen1/Gen2 ×4 Up to 2 GB DDR3L SDRAM 64 MB QSPI flash Gigabit Ethernet Dual Fast Ethernet USB 3.0 device controller USB 2.0 device controller Small form factor (74 × 54 mm) 5 to 15 V supply voltage

Ordering Information

ME-SA2-D6-7I-D11

from Direct

Get Pricing and Availability
