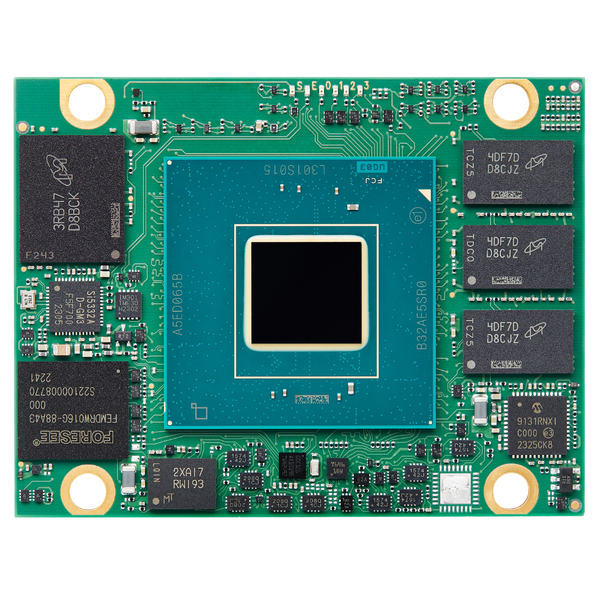

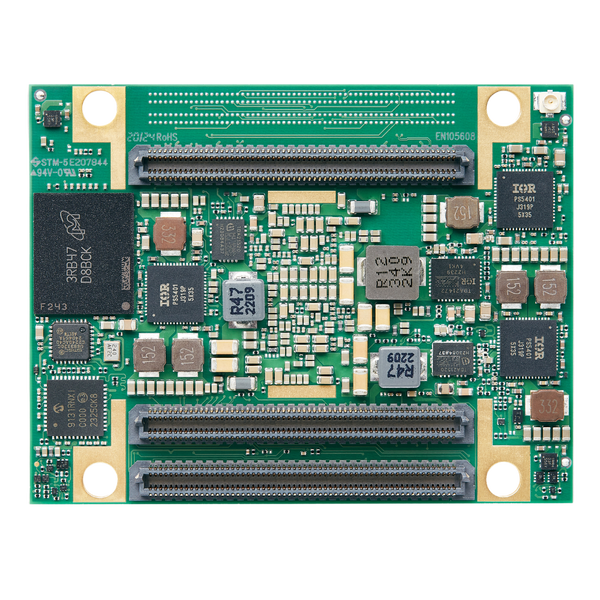

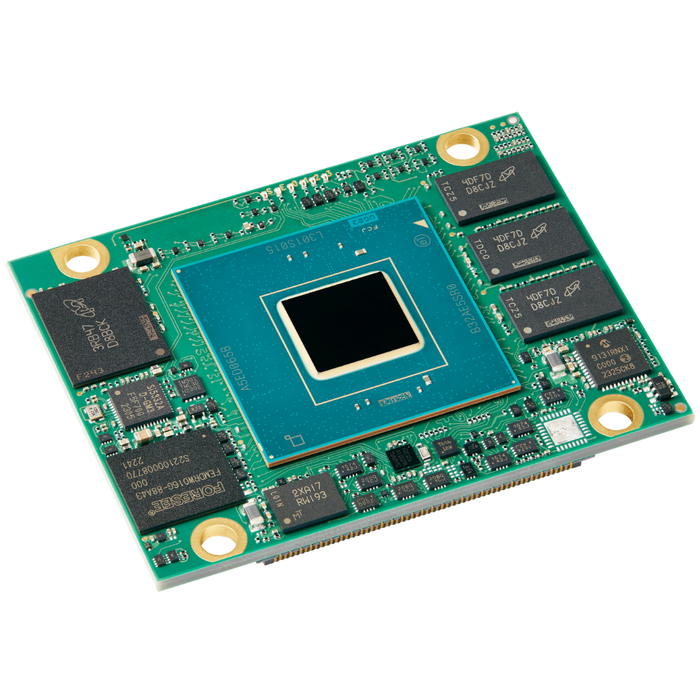

The Andromeda IAE50 system-on-chip (SoC) module combines the power optimized Altera Agilex® 5 E-Series devices with fast low-power DDR5 memory, eMMC and QSPI flash, dual Gigabit Ethernet PHY, USB 3.1 and thus forms a complete and powerful embedded processing system. The module is suitable for a wide range of applications, from vision (thanks to its integrated MIPI and video IP support), to test and measurement system (for real time processing of sensor data and applications requiring low latency and high bandwidth), security and communication systems.
Enclustra GmbH
Key Features
- A complete and powerful embedded processing system in a compact, space-saving form factor
- Agilex 5 E-Series SoC FPGA 85-656 k Logic Elements, 1.7 – 26 TOPS, ARM dual-core Cortex A55 @1.5GHz, ARM dual-core Cortex A76 @ 1.8GHz
- Large, low power and high-bandwidth memory, with up to 4GB DDR4 ECC SDRAM and up to 8GB LPDDR5 SDRAM
- High bandwidth data transfer: PCIe Gen4x4, USB 3.1 at low integration cost
- High number of transceivers available for various communication protocols
- Support for Linux operating system
- Temperature Range: -40C to +85C
Offering Brief
Offering Brief
| Device Family | Agilex® 5 FPGA E-Series |
|---|---|
| Offering Status | Sampling |
| Device OPN(s) on Board | A5ED065AB32AI2V;A5ED065BB32AI4S;A5ED028AB32AI3V;A5ED028BB32AI4S |
| Form Factor | 68 x 52mm (Andromeda M form factor) |
| Power | 12V Power Input, 25A Core Power Supply |
| Interfaces |
2 x Gigabit Ethernet PHY (HPS + FPGA) USB 2.0 PHY (USB 3.1 with GTS) 270 user I/Os: 92 HSIO (1-1.3V) 124 HVIO (1.8-3.3V) 24 HVIO (1.8V) 18 HVIO-LS 12 HPS (1.8V) |
| Memory | Up to 4GB DDR4-2667 x40 (with ECC), Up to 2x 8 GB LPDDR5-3733 x32 memory, 16 GB eMMC flash (HPS), 64 MB QSPI flash (HPS) |
| Connectors | board-to-board connector |
| Switches & LEDs | None |
| Latest Quartus Version Supported | 24.3.1 |
User Guide
Ordering Information
AM-IAE50-065A-I2V-D4E
