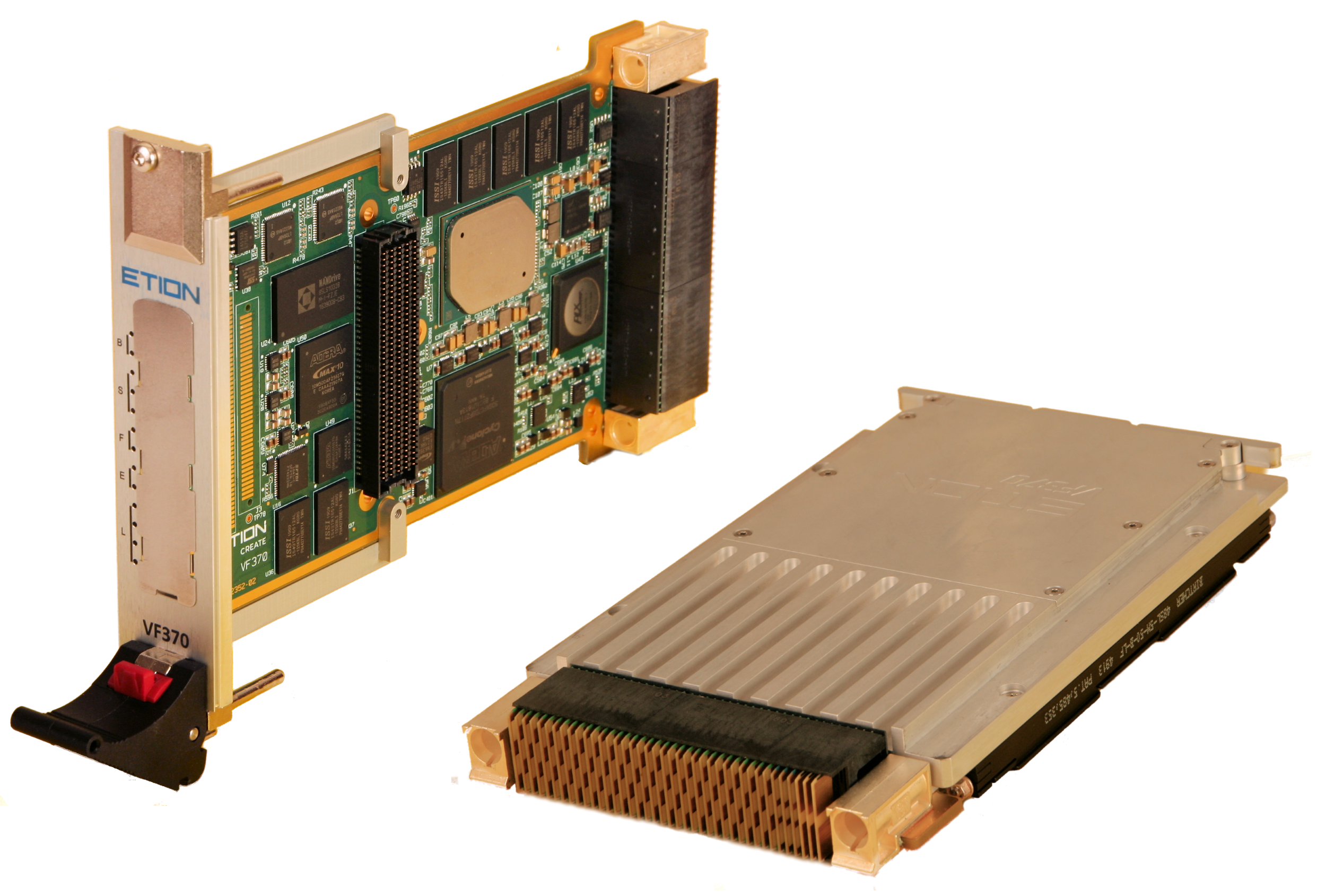

The VF370 is a 3U OpenVPX Single Board Computer (SBC) module that utilises the Atom® E3900 series of embedded processors, Altera Cyclone® V FPGA technology and a FMC mezzanine site, to provide a module with scalable processing power and flexible IO options for reduced Size, Weight and Power (SWaP) applications.
Etion Create Pty (Ltd)
Key Features
- FPGA and Processor combination
- FMC site for flexible IO options
- Reduced Size, Weight and power (SWaP)
- Front panel and Backplane IO options
Offering Brief
Offering Brief
| Device Family | Cyclone® V GX FPGA, MAX® 10 FPGA |
|---|---|
| Offering Status | Production |
| Device OPN(s) on Board | 10M08SCU169I7G;10M50DAF256I7G;5CGXFC7D6F27I7N |
| Form Factor | 3U OpenVPX |
| Power | 16 Watt |
| Interfaces |
PCIe, SATA, USB3, Ethernet, RS422/485, I2C, GPIO, LVDS, HSSI DP/HDMI, HD Audio |
| Memory | DDR3 |
| Connectors | R-VPX VITA 46 |
| Switches & LEDs | Front panel LEDs |
| Latest Quartus Version Supported | 20.1.1 |
VF370 FPGA Processing card with board support package and User Manual
Ordering Information
VF370-P50-FC7-S32M-ES-UI-V5-DD-AA-SSS-MA5C-R10
from Direct
VF370-P50-FC7-S32M-ES-UI-V5-DD-AA-SSS-MA5C-R10
from Sundance Multiprocessor Technology
