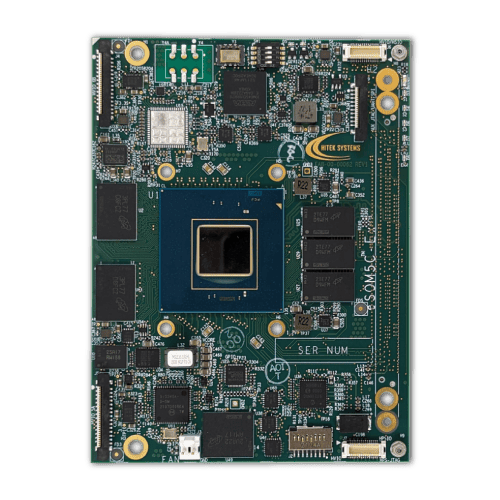

The Agilex® 5 Series FPGA-based compact embedded SOM (eSOM™) module is designed for embedded, edge AI/ML processing, wireless communication, and networking-centric designs. It targets a broad range of applications that require high performance, lower power consumption, and a smaller form factor. The module features a highly flexible interface and clocking architecture, with an option for a high-performance integrated network synchronizer. It is drop-in compatible with the eSOM7C-xF, Hitek’s Agilex® 7 F-Series SOM with single and dual F-Tiles.
Hitek Systems LLC
Key Features
- FPGA: Agilex® 5 E-Series, Group A and Group B FPGAs in B32 package with up to 24 XCVRs
- Supported Devices: A5E065A/B, A5E043A/B
- Connectors: One 400-pin K-2 socket mezzanine connector, up to 24 transceivers (28G for Group A, 17G for Group B NRZ), up to 42 SE 1.2V and 12 true-differential LVDS I/Os
- Processor: Dual-core Arm® Cortex®-A76 and dual-core Cortex®-A55 processing complex with Ethernet, USB 3.1 / USB 2.0, UART, SPI, I³C / I²C interfaces and I/Os
- Synchronization (Optional): Integrated Skyworks Si5518 timing synchronizer, PTP/1588-based with JESD clocking support
Complete Linux BSP support package
Comprehensive APIs for board management
Quartus reference projects
Carrier boards design guide for custom carrier designs
