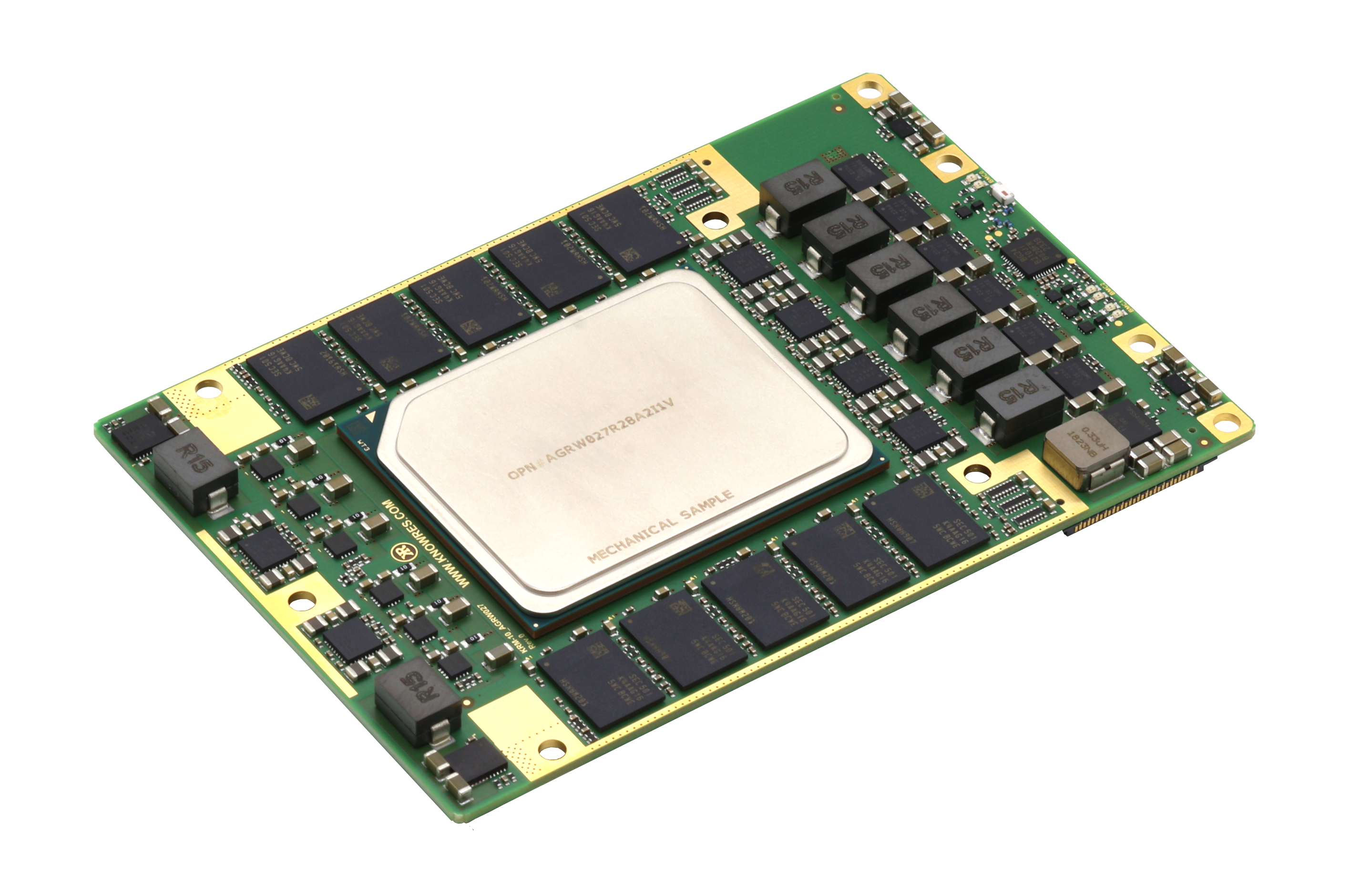

This highly sophisticated SoM features Agilex® 9 DirectRF with 8 channels RF ADC and DAC with 64 GS each. The infrastructure required to synchronize multiple devices is also available.
Knowledge Resources GmbH
Key Features
- SoC FPGA: Altera Agilex9 AGRW027
- Direct RF-Subsystem: 8x RF ADC and DAC @ 64GS
- Digital I/O: 22+22x HPS_A & B I/O to 1V8 - 48x LOGIC I/O - 32x 58 Gb PAM-4 / HPS UART
- Memory Configuration: 2/4GB, 40 bit DDR4 HPS RAM - 2 x 4/8GB 72 bit DDR4 ECC RAM
- Power: Single 12V supply
- Dimensions: 120 x 80 mm
Offering Brief
Offering Brief
| Device Family | Agilex® 9 FPGA Direct RF-Series |
|---|---|
| Offering Status | Sampling |
| Device OPN(s) on Board | AGRW027R28A2I2V |
| Form Factor | 120 x 80 mm |
| Power | single 12 V supply |
| Interfaces |
- 22 & 22x HPS_A & B I/O to 1V8 - 48x LOGIC I/O - 32x 58 Gb PAM-4 / HPS UART |
| Memory | 2/4GB, 40 bit DDR4 HPS RAM - 2 x 4/8GB 72 bit DDR4 ECC RAM |
| Latest Quartus Version Supported | 25.3.1 |
heat spreader for heat management and improved mechanical performance
Ordering Information
KRM-10A9W027
