CoaXPress 1.1 Device Package

Macnica Americas

Select

CoaXPress is defined by JIIA (Japan Industrial Imaging Association) for high-speed image data transmission mainly for Machine Vision applications. CoaXPress IP uses 75Ω coaxial cable as a physical medium and supports transfers up to 6.25Gbps/cable. Utilizing this IP core and reference design allows you to easily develop a device compliant with CoaXPress.

Macnica has got much experience with GenICam through GigE Vision IP and USB3 Vision IP.

CoaXPress IP package also includes a software library to help you support GenICam development.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Compliant with CoaXPress Version 1.1.1
  • Data rate up to 6.25Gbps/lane
  • Supports up to 4 Connections
  • Supports up to 4 Streams
  • Supports GenICam
  • Tested under “Inter Operability Test” by JIIA
Expand Close

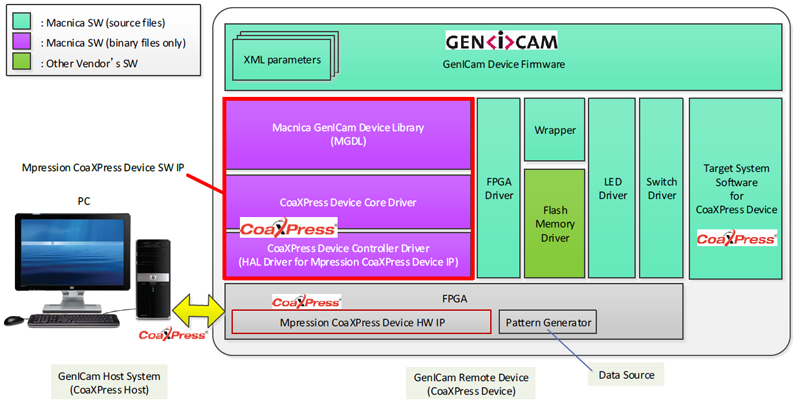

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Arria® 10 GX FPGA, Cyclone® 10 GX FPGA, Cyclone® III FPGA
Offering Status Production
Evaluation License Yes
Design Examples Available Yes
Development Language Verilog

Encrypted RTL (Verilog HDL)

Reference design

Firmware for CoaXPress/GenICam including XML generator
