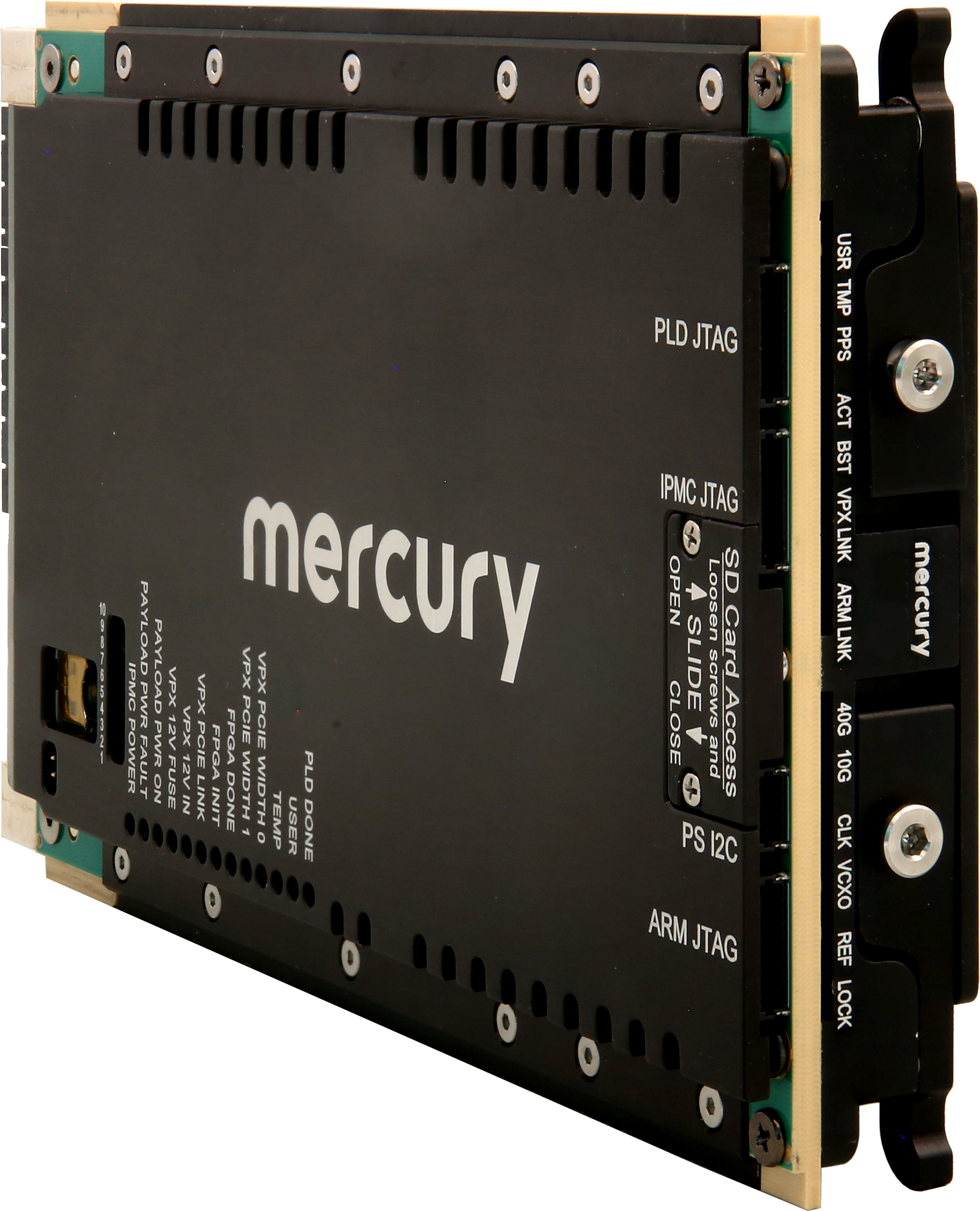

The DRF5580 is a SOSA* aligned 3U OpenVPX board featuring four 64 Gsps ADCs and DACs that are integrated into the Agilex® 9 SoC FPGA’s multiprocessor architecture, 16 GB DDR4 SDRAM, dual 100 GigE optical interfaces, a 10 GigE Interface, and a 40 GigE Interface, delivering multichannel data conversion and digital signal processing. Available in a ruggedized and conduction-cooled 3U form factor, it supports applications such as radar, high-bandwidth data streaming, waveform signal generators, communication receivers and transmitters, and electronic warfare transponders.
Mercury Systems
Key Features
- SOSA 3U VPX industry standard COTS board. Provides customers immediate access to Agilex 9 development with a direct path to deployable hardware.
Offering Brief
Offering Brief
| Device Family | Agilex® 9 FPGA Direct RF-Series |
|---|---|
| Offering Status | Production |
| Device OPN(s) on Board | AGRW014R17B2I2V |
| Latest Quartus Version Supported | 25.1.0 |
Full product documentation, pre-installed data acquisition and waveform generation application example with 100 GigE optical support
Ordering Information
DRF5580
