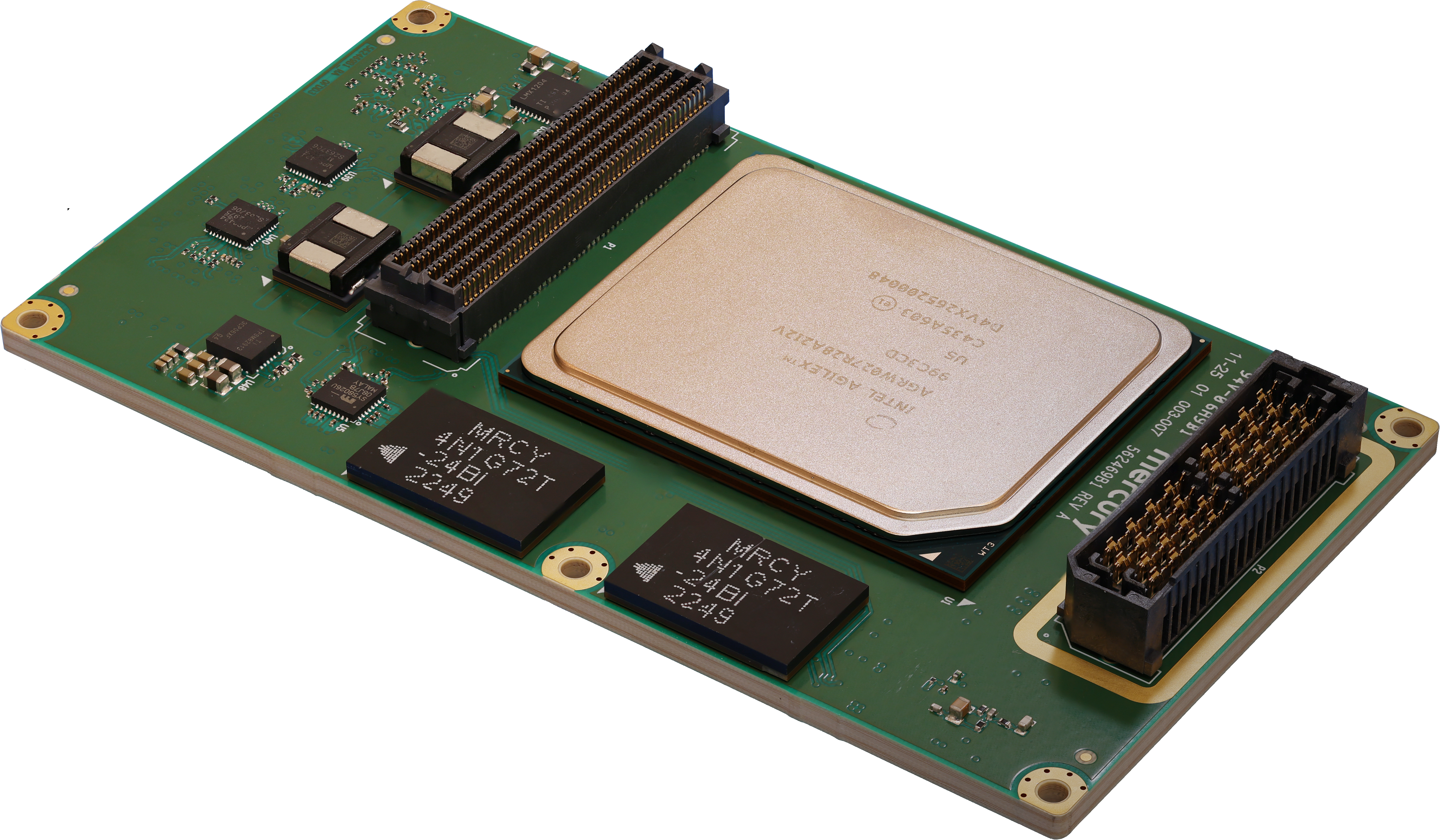

Designed to deliver low-latency digital signal processing to a wide range of defense and edge applications, the DRF2270 is a 2.6" x 4.75", 8-Channel, 64 GSPS A/D and D/A system on module based on the Altera® Agilex® 9 SoC FPGA Direct RF-Series. It features 16 GB of DDR4 SDRAM, LVDS connections to Agilex® 9 FPGA for custom I/O, GT connections for gigabit serial communication and a flexible system on module design that allows engineers to immediately start application development, port IP, and deploy on traditional and custom form factors for expendables, unmanned platforms, and ground stations.
Mercury Systems
Key Features
- Small system on module provides customers immediate access to Agilex 9 development in a variety of industry standard form factors for commercial and military applications. An available carrier design package enables customers to design custom carriers when an application specific format is required.
Offering Brief
Offering Brief
| Device Family | Agilex® 9 FPGA Direct RF-Series |
|---|---|
| Offering Status | Production |
| Device OPN(s) on Board | AGRW027R28A2I2V |
| Latest Quartus Version Supported | 25.1.0 |
Full documentation, carrier design package is available
Ordering Information
DRF2270
