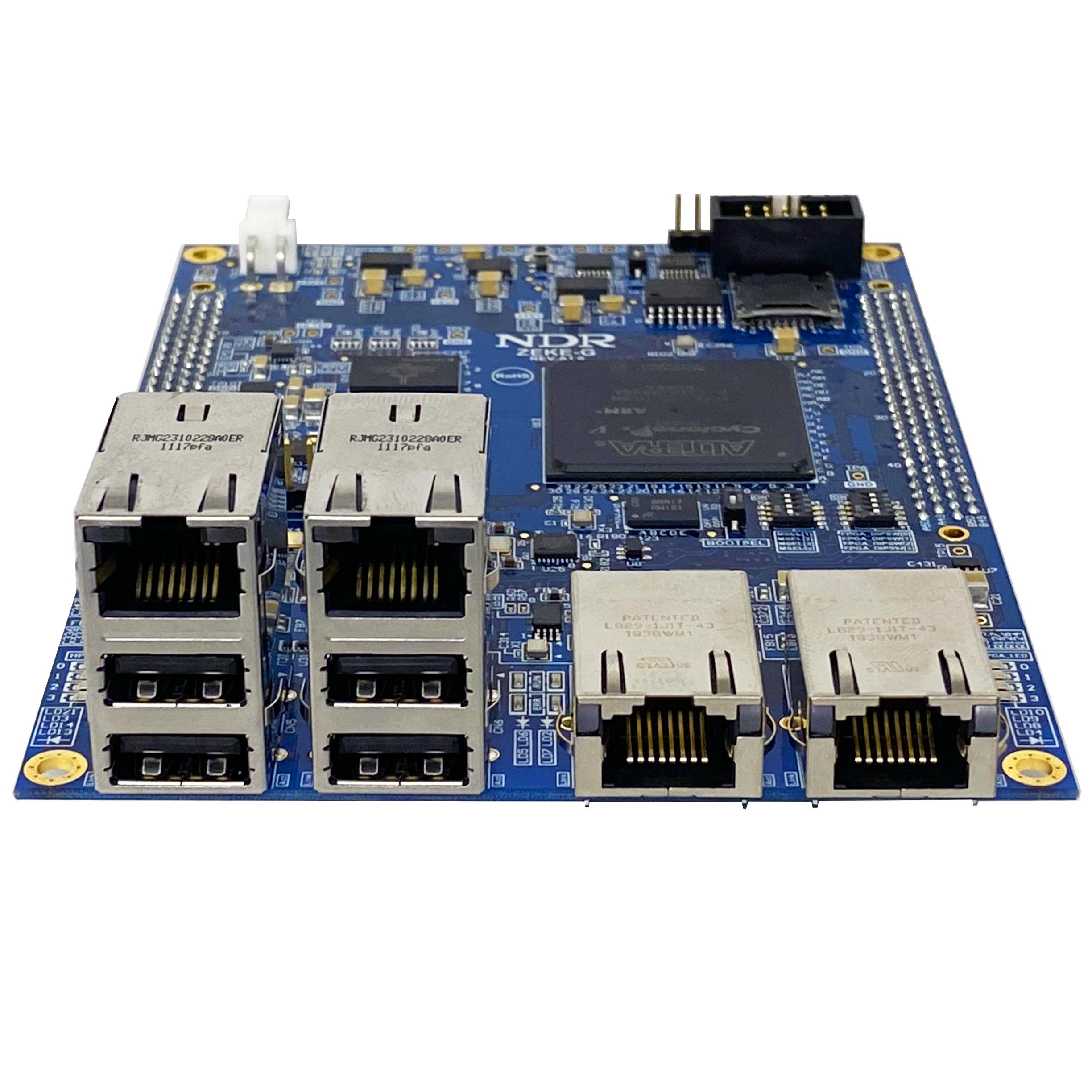

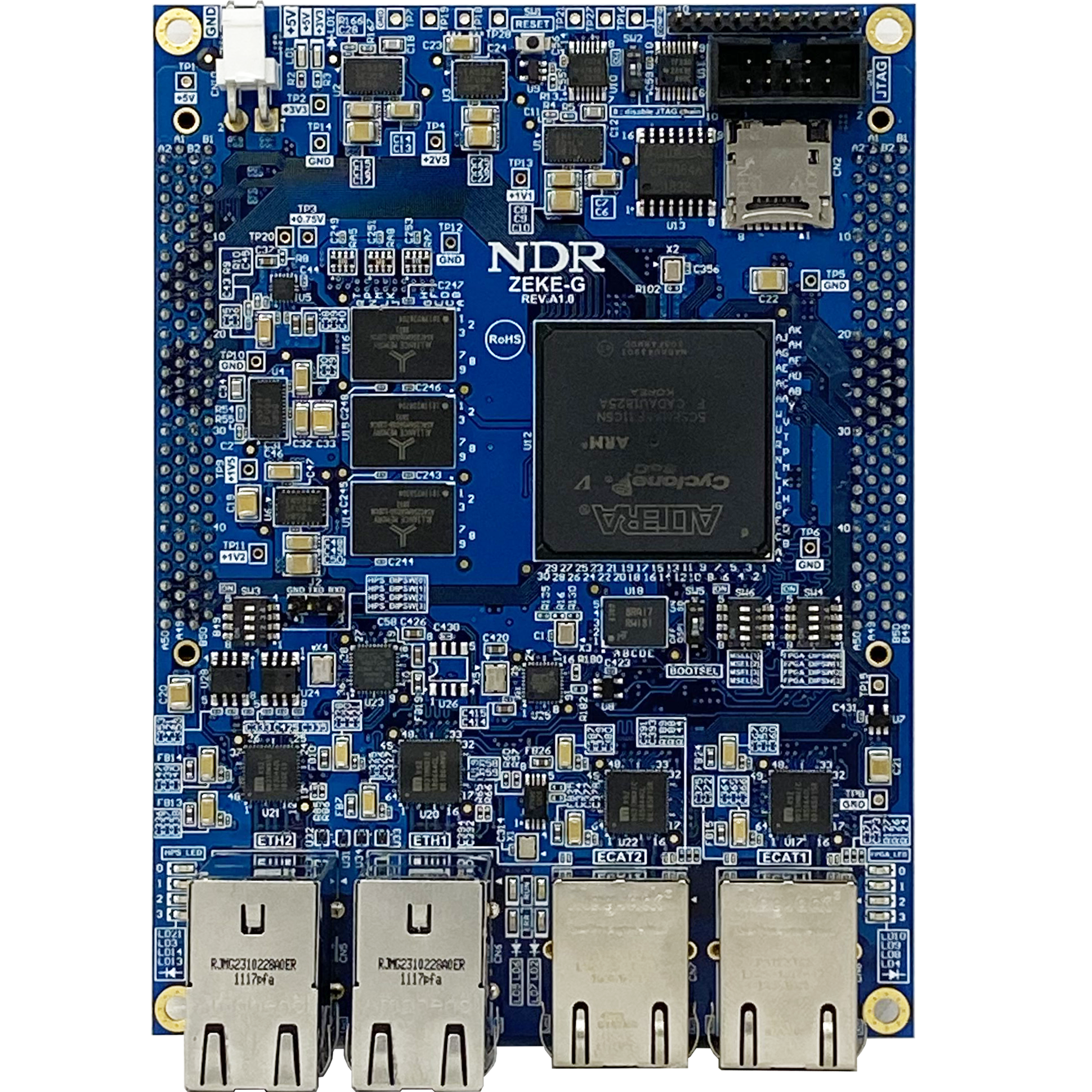

The N-EMB-110 Platform is a platform primarily developed for the industrial Ethernet field. Equipped with a high-performance CPU board featuring a dual-core Arm Cortex A9 @925MHz, it allows for the use of operating systems such as Linux in SMP mode. It is the only board where both Gigabit Ethernet ports and USB of the Arm processor are usable. Since the FPGA is equipped with two 10/100/1000 PHYs, it is possible to use Altera's TSE MAC, etc.
NDR Co.,LTD.
Key Features
- The N-EMB-110 platform is a high-performance product specialized for the industrial Ethernet field.
- Supports both Hardware and Software EtherCAT Master and Slave Functions, Enabling Diverse System Configurations
- Equipped with Multiple Ethernet Ports, GPIO, and Memory Interfaces for Easy Connection to Various Industrial Devices
Offering Brief
Offering Brief

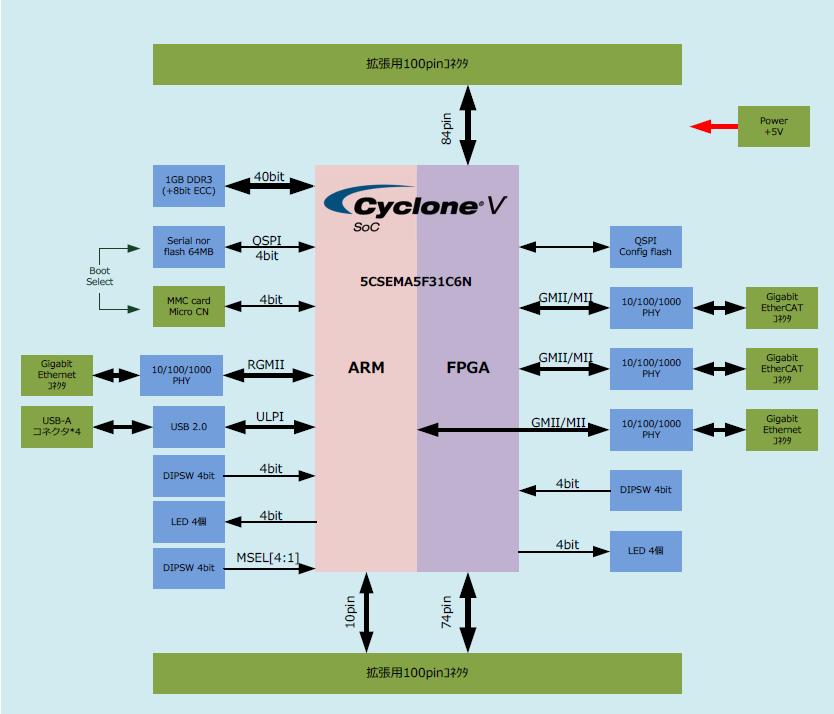

| Device Family | Cyclone® V SE FPGA |
|---|---|
| Offering Status | Sampling |
| Device OPN(s) on Board | 5CSEMA5F31C6N |
| Form Factor | - |
| Power | Input Voltage: 5.0V DC |
| Interfaces |
HPS (Arm) Ethernet: 2 x Gigabit Ethernet (10/100/1000 Mbps) ports FPGA Ethernet: 2 x Gigabit Ethernet (10/100/1000 Mbps) ports USB: Fully supported GPIO: Total 168 channels via expansion connectors |
| Memory | RAM: DDR3 256M x 32-bit with 8-bit ECC, 400MHz |
| Connectors | Expansion: 2 x 100-pin 1.27mm pitch staggered connectors |
| Switches & LEDs | User: 8 x Green LEDs (4 for HPS, 4 for FPGA) / DIP Switches: 3 x 4-position DIP switches |
| Latest Quartus Version Supported | 17.1.0 |
