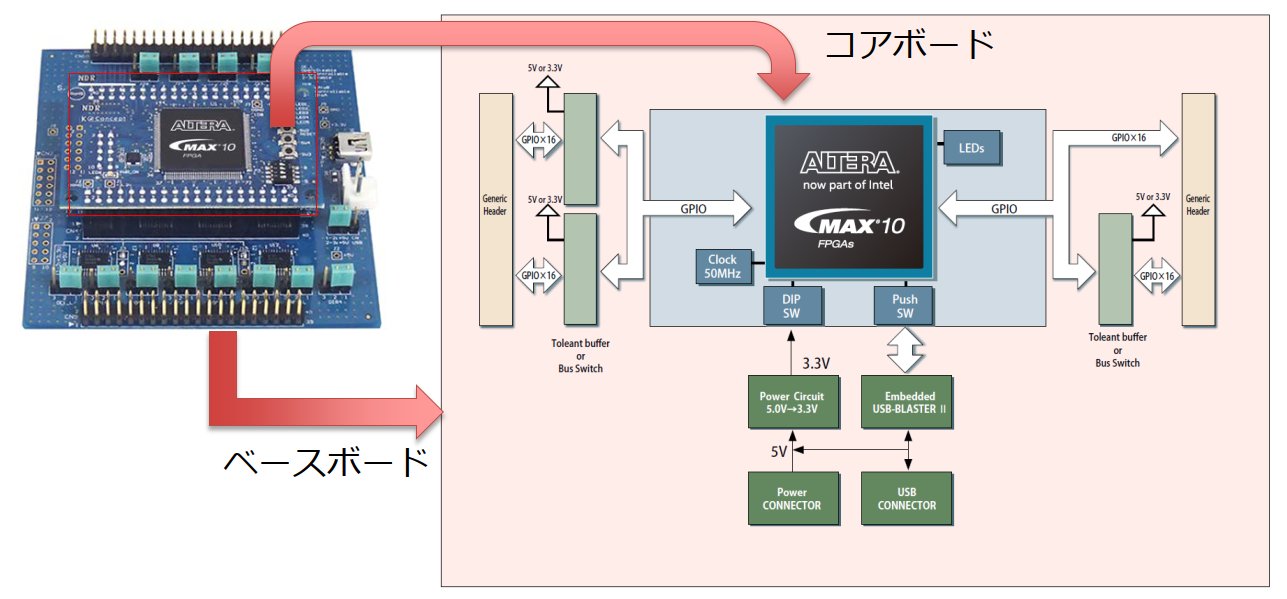

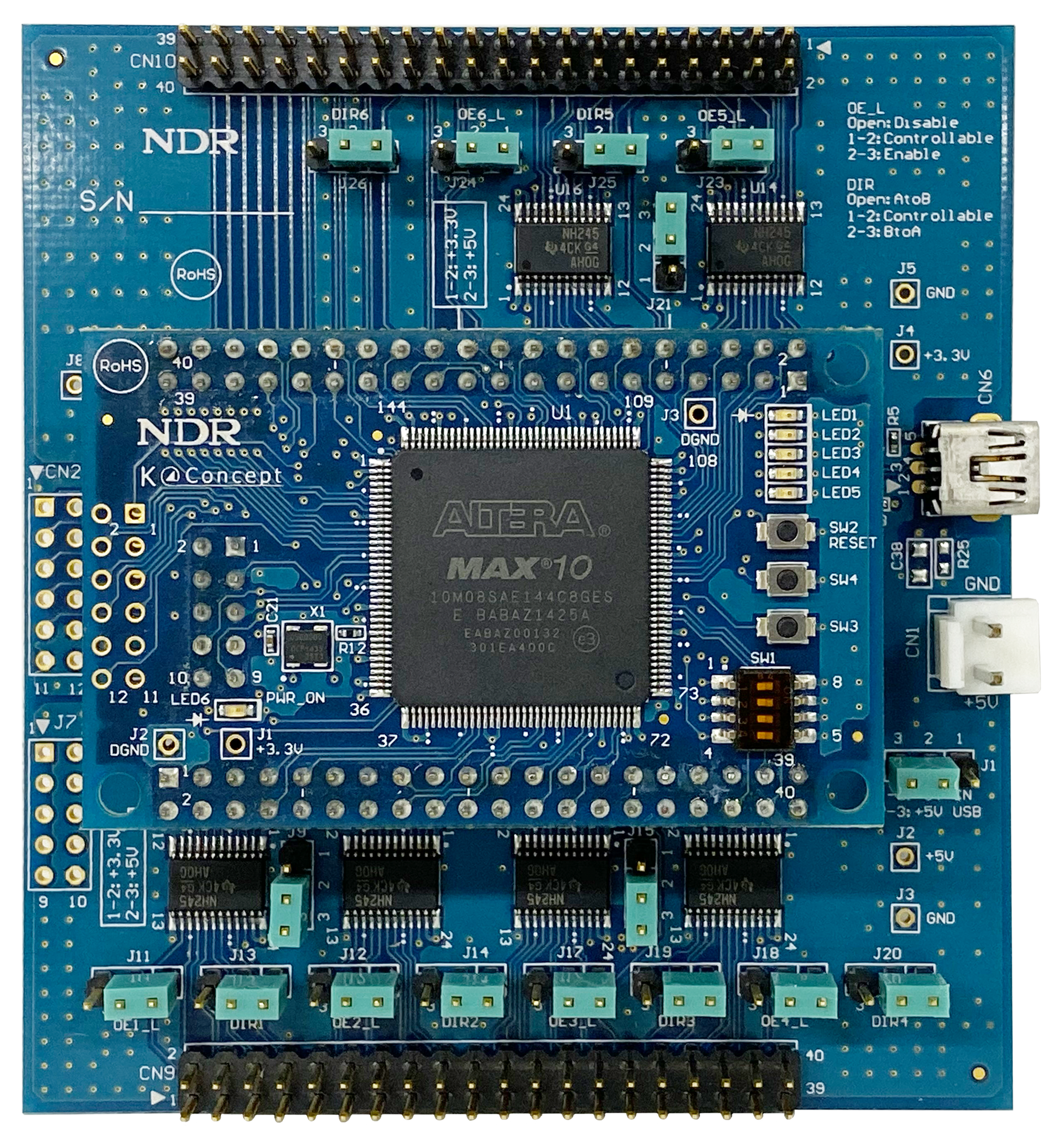

The N-EMB-500 Platform is an evaluation platform for the development of our own ASSP and as a countermeasure for discontinued ICs. Equipped with MAX® 10 10M08SA: Operable with a single 3.3V power supply and has a built-in configuration ROM, allowing for single-chip operation. Supports dual boot and can also implement Nios II. It is also possible to manage the board's power sequence and power management using the analog functions of the MAX® 10.
NDR Co.,LTD.
Key Features
- Available in Bus Switch and 5V Tolerant Models, Featuring Embedded USB Blaster II.
- Serves as an Evaluation Platform for In-House ASSP Development and End-of-Life IC Solutions.
- Equipped with Multiple I/O Interfaces to Support Connection with Various Peripherals.
Offering Brief
Offering Brief
| Device Family | MAX® 10 FPGA |
|---|---|
| Offering Status | Production |
| Device OPN(s) on Board | 10M08SAE144C8G |
| Form Factor | - |
| Power | Base Board Input: 5.0V DC / Core Board Supply: 3.3V DC |
| Interfaces |
GPIO: Total 72 channels available via expansion connectors. Type A Base Board: Features 3.3V/5V tolerant standard buffers (SN74LVC8T245PW). Includes 48 buffered channels and 24 direct-FPGA channels. Type B Base Board: Features 3.3V/5V tolerant FET |
| Memory | - |
| Connectors | Expansion: 2 x 40-pin 2.54mm pitch connectors |
| Switches & LEDs | Core Board: 1 x Green Power LED, 5 x User-programmable LEDs. / DIP Switches: 1 x 4-position DIP switch |
| Latest Quartus Version Supported | 17.1.0 |
