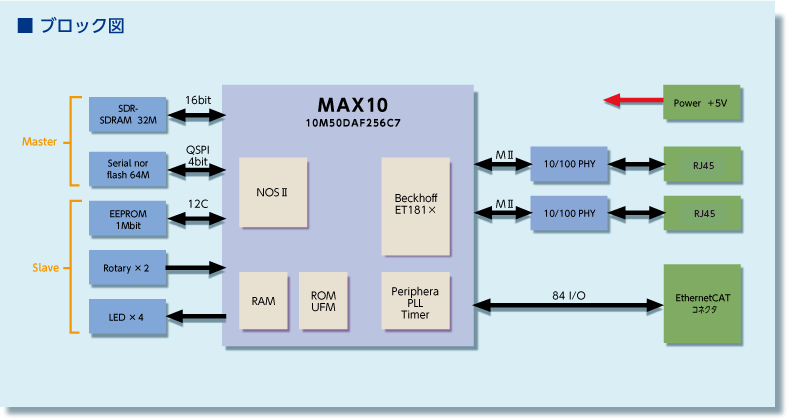

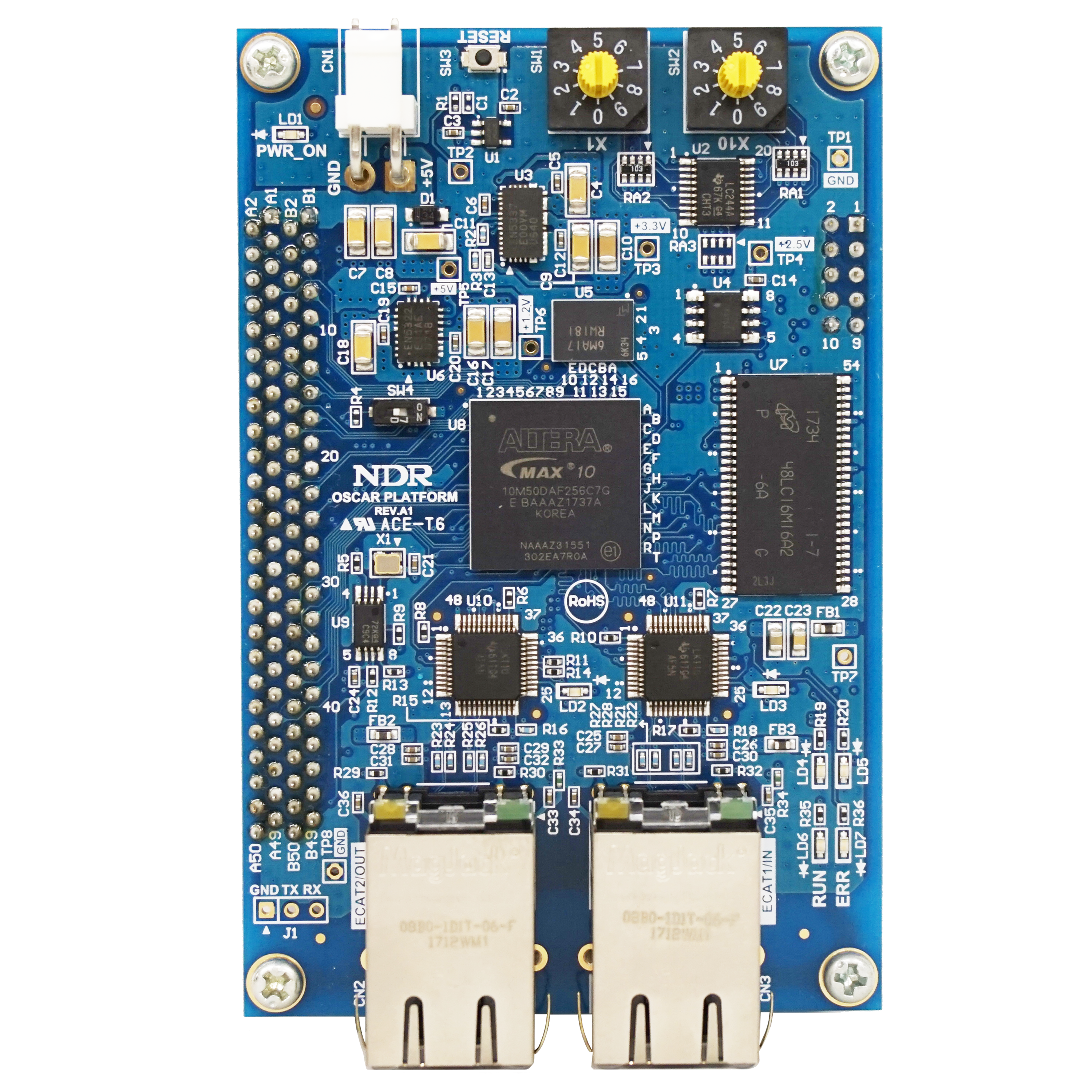

The N-EMB-120 Platform is a platform primarily developed for the industrial Ethernet field. Equipped with MAX® 10 10M50: With sufficient RAM capacity and FLASH usable as configuration ROM, a custom CPU can be implemented on a single chip by using Nios II. Equipped with external SDRAM and QSPI Flash: Expansion is also possible according to the software application capacity. Since the FPGA is equipped with two 10/100 PHYs, network-enabled devices can be easily realized by using Altera's TSE MAC, etc.
NDR Co.,LTD.
Key Features
- Supports EtherCAT Master/Slave Functionality for Simplified Industrial Network Construction.
- Equipped with MAX® 10 FPGA, Allowing for Customer-Specific Customization
- Features Multiple Ethernet Ports and I/O Interfaces for Versatile Industrial Device Connectivity.
Offering Brief
Offering Brief
| Device Family | MAX® 10 FPGA |
|---|---|
| Offering Status | Production |
| Device OPN(s) on Board | 10M50DAF256C7G |
| Form Factor | - |
| Power | Input Voltage: 5.0V DC |
| Interfaces |
Fast Ethernet: 2 x 10/100 Mbps Ethernet ports on the FPGA side GPIO: 81 channels available for the FPGA section via expansion connectors |
| Memory | SDRAM: 32 MByte (x16-bit), Max 167MHz |
| Connectors | Expansion: 2 x 100-pin 1.27mm pitch staggered connectors |
| Switches & LEDs | User: 2 x Green LEDs / Rotary Switches: 2 x Decimal rotary switches |
| Latest Quartus Version Supported | 17.1.0 |
Schematics
BOM
User's Manual
FPGA Sample Project
Power Cable
Ordering Information
N-EMB-120
