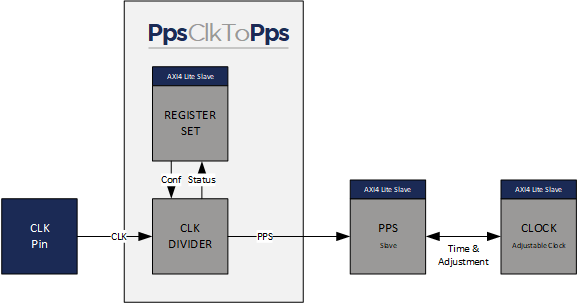

NetTimeLogic’s PPS Clock to PPS core is a full hardware (FPGA) only implementation of a PPS generator out of a clock of configurable frequency, it is intended to be connected to a PPS Slave core able to syntonize to a Pulse per Second. The core also checks if the input clock is in the configured range and only if so will generate a PPS.
NetTimeLogic GmbH
Key Features
- Configurable input frequency from 100Hz to 100MHz
- Input frequency supervision
- PPS duty cycle configurable in ms steps
- PPS Generation runs directly on Input Clock (minimal Jitter)
- AXI4Lite register set or static configuration
Offering Brief
Offering Brief
| Device Family | Agilex® 3 FPGA C-Series, Agilex® 5 FPGA D-Series, Agilex® 5 FPGA E-Series, Agilex® 7 FPGA F-Series, Agilex® 7 FPGA I-Series, Agilex® 7 FPGA M-Series, Agilex® 9 FPGA Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX FPGA, Arria® V GT FPGA, Arria® V GX FPGA, Arria® V GZ FPGA, Arria® V ST FPGA, Arria® V SX FPGA, Cyclone® 10 GX FPGA, Cyclone® 10 LP FPGA, Cyclone® IV E FPGA, Cyclone® IV GX FPGA, Cyclone® V E FPGA, Cyclone® V GT FPGA, Cyclone® V GX FPGA, Cyclone® V SE FPGA, Cyclone® V ST FPGA, Cyclone® V SX FPGA, MAX® 10 FPGA, Stratix® 10 AX FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX FPGA, Stratix® 10 TX FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA |
|---|---|
| Offering Status | Production |
| Integrated Testbench | Yes |
| Evaluation License | Yes |
| Design Examples Available | Yes |
| Latest Quartus Version Supported | 25.1.0 |
| OS Support | Not required |
| Development Language | VHDL |
