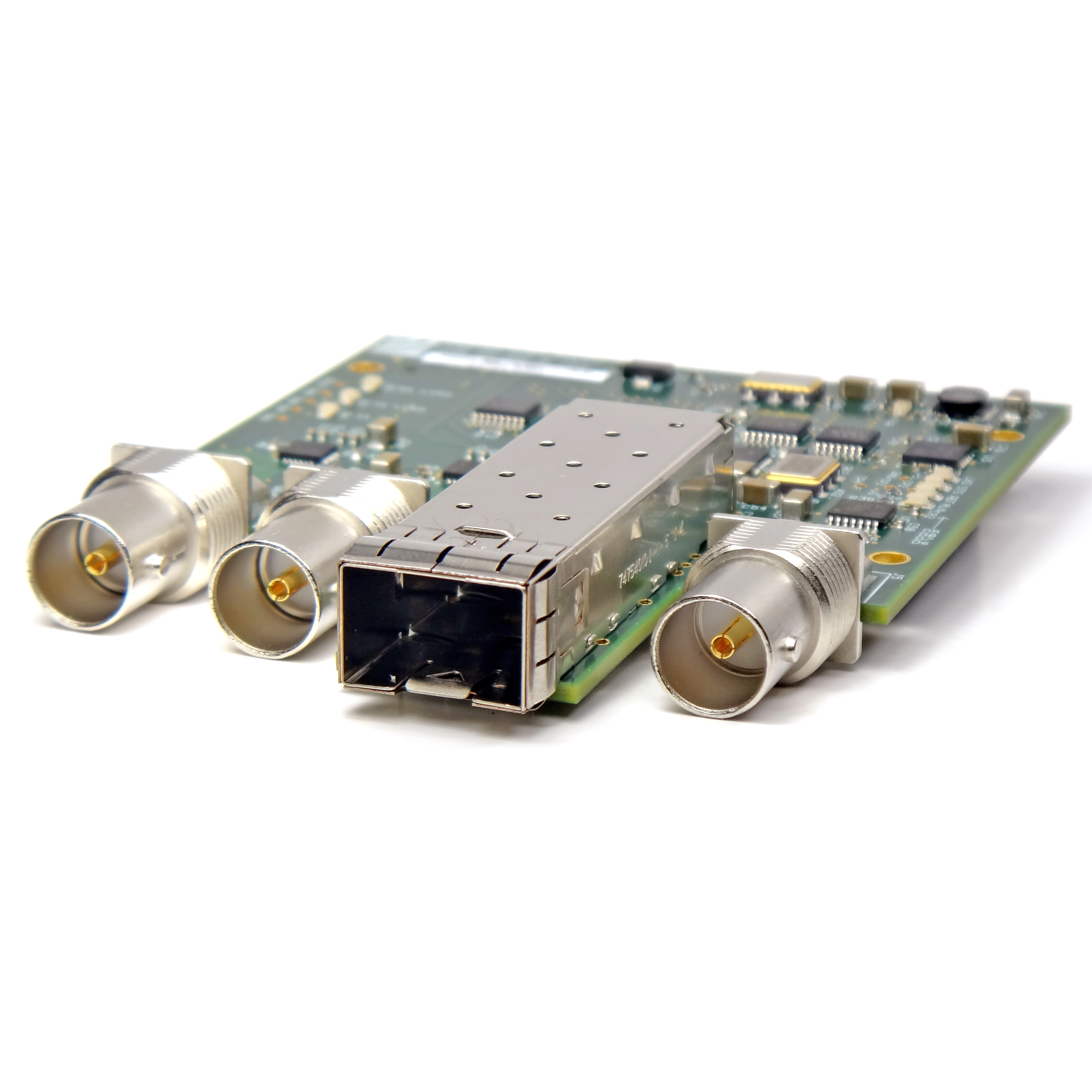

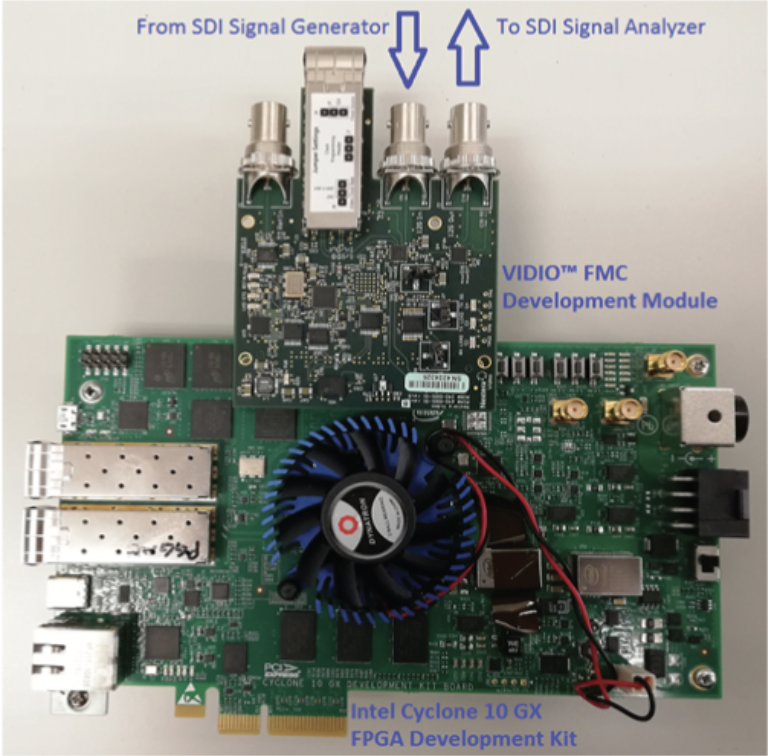

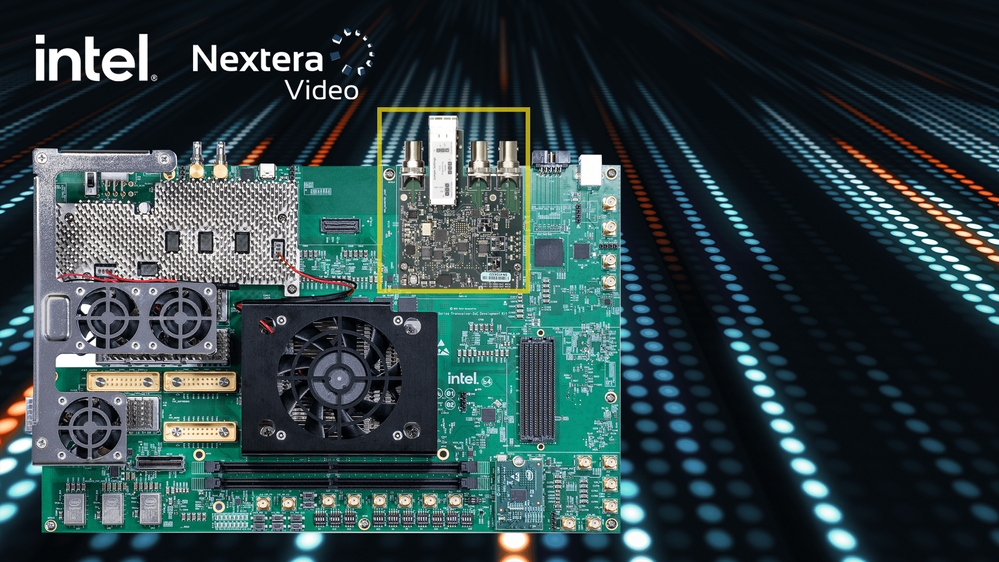

The VIDIO 12G SDI FMC Daughter Card is an FMC HPC standard compliant module providing 12G-SDI and 10G IP interfaces for high-resolution video processing up to 4Kp60, compatible with a range of Altera (Arria® 10, Cyclone® 10, Stratix® 10, Agilex®) FPGA development boards. Full Turn-Key Design Package (Schematics, Gerbers, PCB stackup, assembly/fabrication drawings, bill of materials, and example projects) is available to help jump-start your hardware design.
Nextera Video
Key Features
- Highest Quality SDI FMC Card
- 4Kp60 I/O for SD/HD/3G/6G/12G/Fiber
- SFP+ connector for 1G/2.5G/10G Ethernet/Video
- Bi/Tri Level Genlock, supports Blackburst
- Full Turn-Key Design Package Included
- No Software Required
Offering Brief
Offering Brief
| Device Family | Agilex® 3 FPGA C-Series, Agilex® 5 FPGA D-Series, Agilex® 5 FPGA E-Series, Agilex® 7 FPGA F-Series, Agilex® 7 FPGA I-Series, Agilex® 7 FPGA M-Series, Agilex® 9 FPGA Direct RF-Series, Arria® 10 GX FPGA, Cyclone® 10 GX FPGA, Stratix® 10 GX FPGA |
|---|---|
| Offering Status | Production |
| Device OPN(s) on Board | A3CZ100BB18AE7S;10AX027H3F34I2LG;10CX085YF672E5G;A5DD064AB32BE3VR0;AGFA012R24B1E1V;1SG10MHN3F74E2LG;AGRW027R28A2I2VQ0;A5EC065BB32AE5SR0;AGIB027R31B2E2V;AGMF039R47A1E2VRG |
| Form Factor | Daughter Card |
| Power | N/A |
| Interfaces | BNC, SFP+ |
| Memory | N/A |
| Connectors | HPC FMC |
| Switches & LEDs | Yes |
| Latest Quartus Version Supported | 25.1.0 |
User Guide
Reference Designs
Schematics
Gerbers
PCB Stackup
BOM
Assembly drawings
Fabrication drawings
Ordering Information
VIDIO-12G-A
from Direct
$1495.00
VIDIO-12G-A
from Digikey
$1495.00
