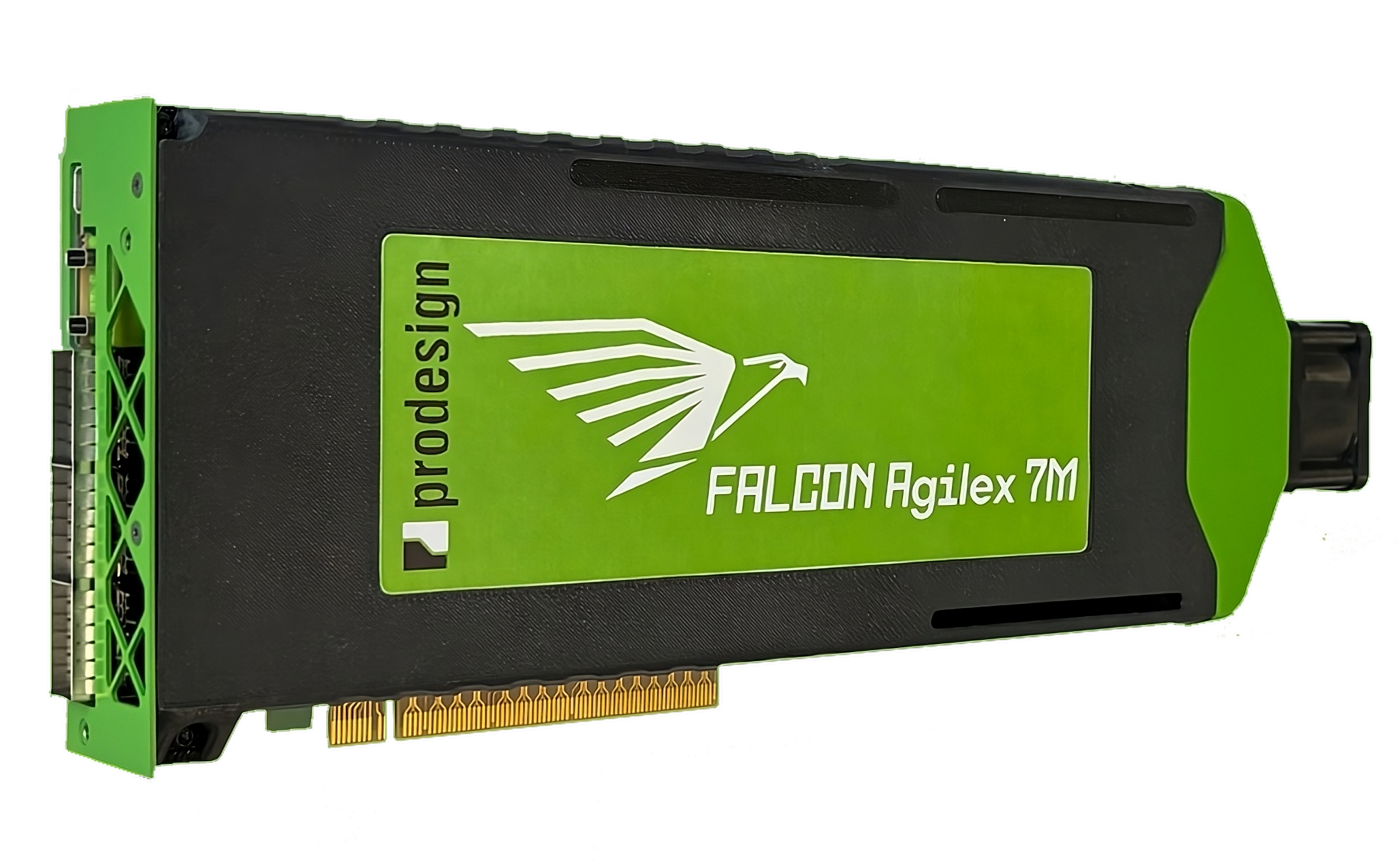

The board is based on PCIe Gen5 x16 and offers three 400GE QSFP-DD front ports supporting 6x 200Gbit/s or 3x 400Gbit/s. Further, it offers three programmable SODIMM sockets and three high-speed NovaRay® connectors for connecting multiple memory modules or peripherals. Supporting HDL, CXL flows.
PRO DESIGN Electronic GmbH
Key Features
- Agilex® 7 M-Series FPGA Acceleration Board
- 3x 400Gbps I/O (QSFP)
- 3x SO-DIMM sockets for DDR5
- PCIe Gen5x16
Offering Brief
Offering Brief
| Device Family | Agilex® 7 FPGA M-Series |
|---|---|
| Offering Status | Development |
| Device OPN(s) on Board | AGMF039R47A1E2VC |
| Form Factor | 275 mm x 111.28 mm (Full height) |
| Power | 1x 12VHPWR 12-pin and PCIe slot 12V (supporting up to 675 W) 250 W typical max power consumption (depends on application) |
| Interfaces |
- 3x Samtec NovaRay® connectors with up to 8x 32 Gbit/s each and 7 GPIOs each - 3x QSFP-DD connectors: 6x QSFP56 (200 Gbit/s each) - PCIe Gen5 x16 interface direct to FPGA |
| Memory | 3x SODIMM sockets: Up to 5600 MT/s (64b/ 80b) and 32 GB DDR5 per SODIMM Custom memory modules Custom daughter cards with programmable I/Os and voltage levels |
| Connectors | Samtec NovaRay® connectors / PCIe Gen5 x16 / SODIMM sockets |
| Switches & LEDs | 6RGB LEDs |
prodesign SDK including BIST, BMC firmware, drivers
Acceleration card with cooling and cables
