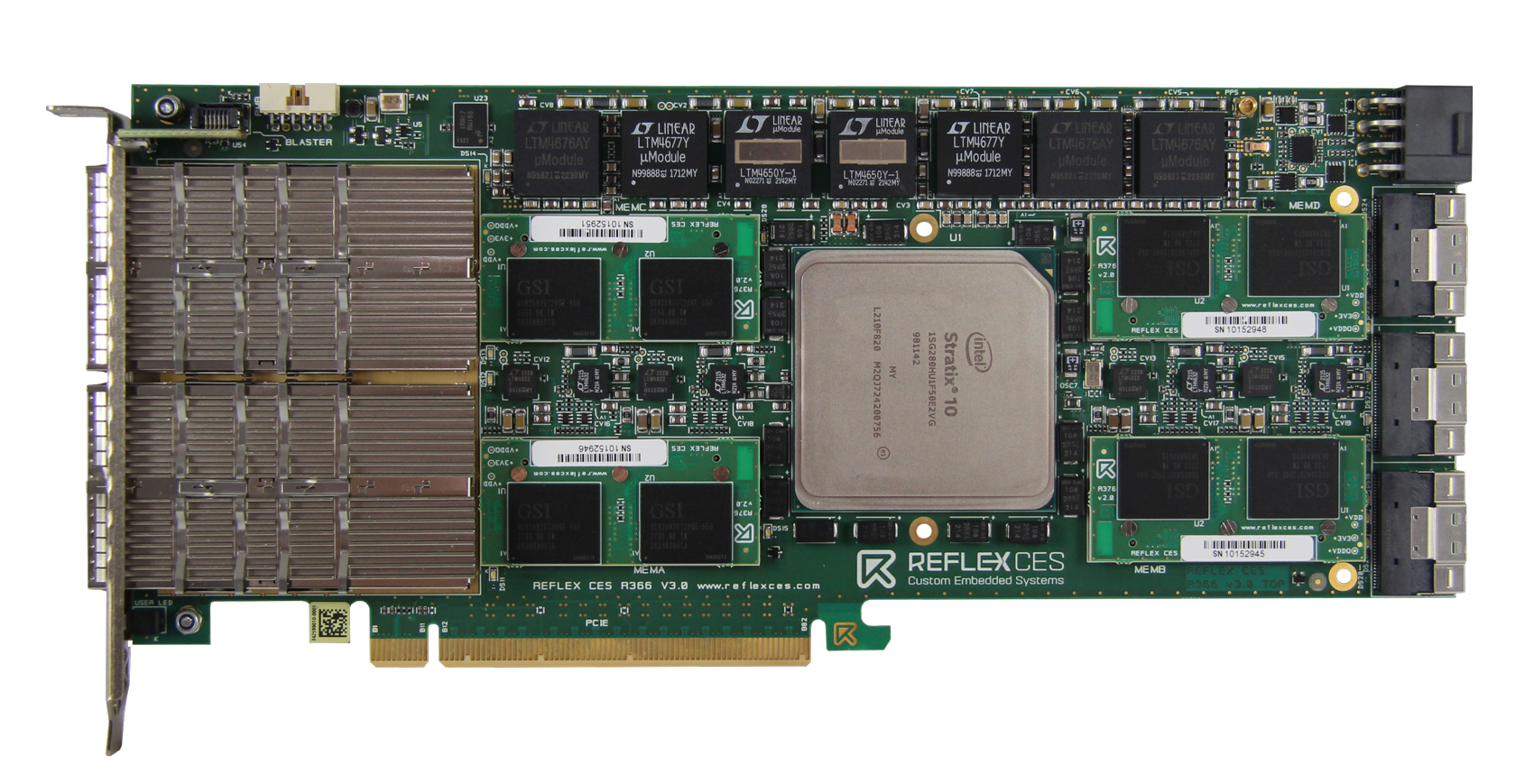

PCIe FPGA board equipped with a Stratix® 10 FPGA, specially designed for applications requiring extreme network connectivity. Unlike other PCIe FPGA boards, it offers transmission capacity of up to 800G via its QSFP-DD interfaces, making it ideal for 5G infrastructures, data centers and advanced data flow processing. Its optimized memory architecture and PCIe Gen4 bandwidth guarantee high performance for hardware acceleration and real-time analysis.
reflex ces

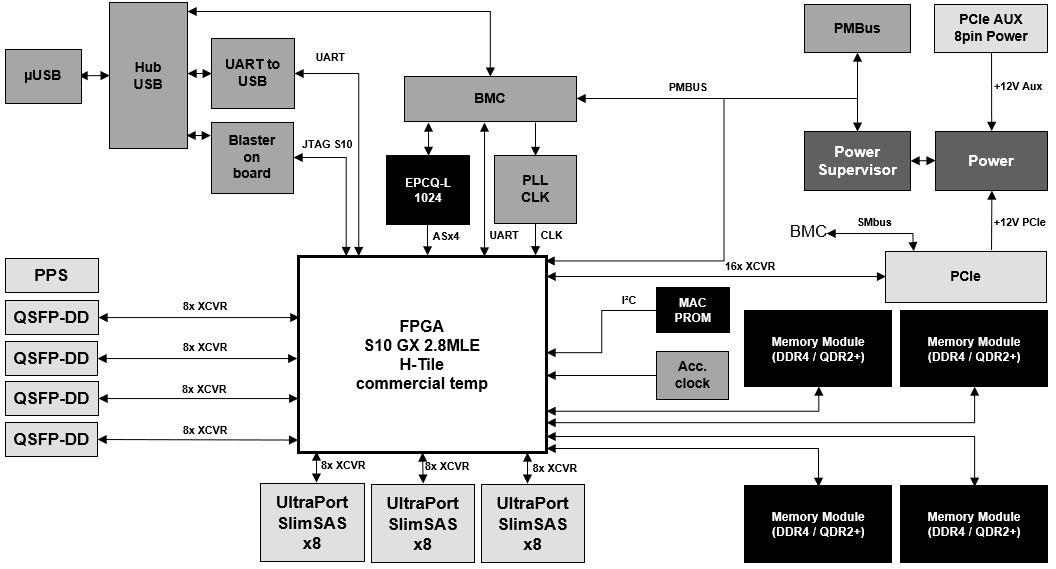

Key Features
- Full height PCIe board using altera® Stratix® 10 GX 2800 KLE FPGA
- Designed for Acceleration and Low Latency Applications
- PCIe Gen3 x16
- 4 independent memory banks compatible DDR4 and QDR2+
- 4 QSFP-DD optical cages, 10/25/40/100 GbE
- Board Management Controller (BMC)
- 3 Ultraport Slim SAS connectors for storage solution
Offering Brief
Offering Brief
| Device Family | Stratix® 10 GX FPGA |
|---|---|
| Offering Status | Production |
| Device OPN(s) on Board | 1SG280HU1F50E2VG |
| Form Factor | PCIe |
| Power | Max 200W |
| Interfaces |
PCIe Gen4 x16 100G / 200G / 400G / 800G Ethernet support High-speed serial transceivers DDR4 ECC memory interfaces SmartNIC and packet processing interfaces UART, SPI, I²C |
| Memory | On board memory module with mix memory type DDR4 or QDRII // 0 to 4 banks DDR4, 8GBytes each, x72bits, up to 2400MT/s // 0 to 4 banks QDRII+ 576Mbits each, x36bits, up to 550MHz |
| Connectors | PCIe Gen4 x16 edge connector // QSFP-DD optical cages supporting ultra-high-speed Ethernet // DDR4 DIMM interfaces |
| Switches & LEDs | FPGA configuration and reset management |
| Latest Quartus Version Supported | 24.2.1 |

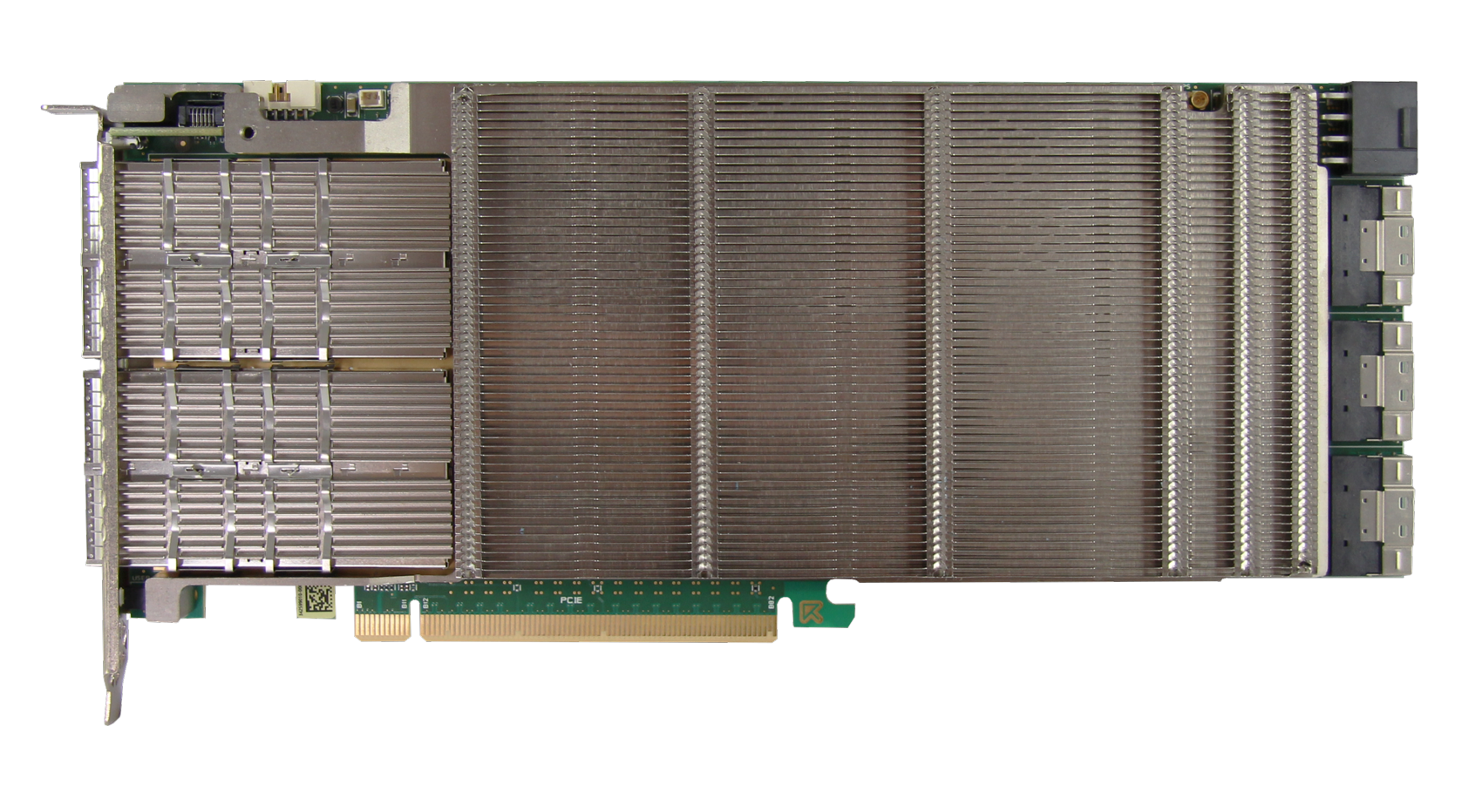

Full height 1 slot PCIe board with passive heat-sink and PCIe bracket
Board Support Package (Manuals, HDL reference designs)

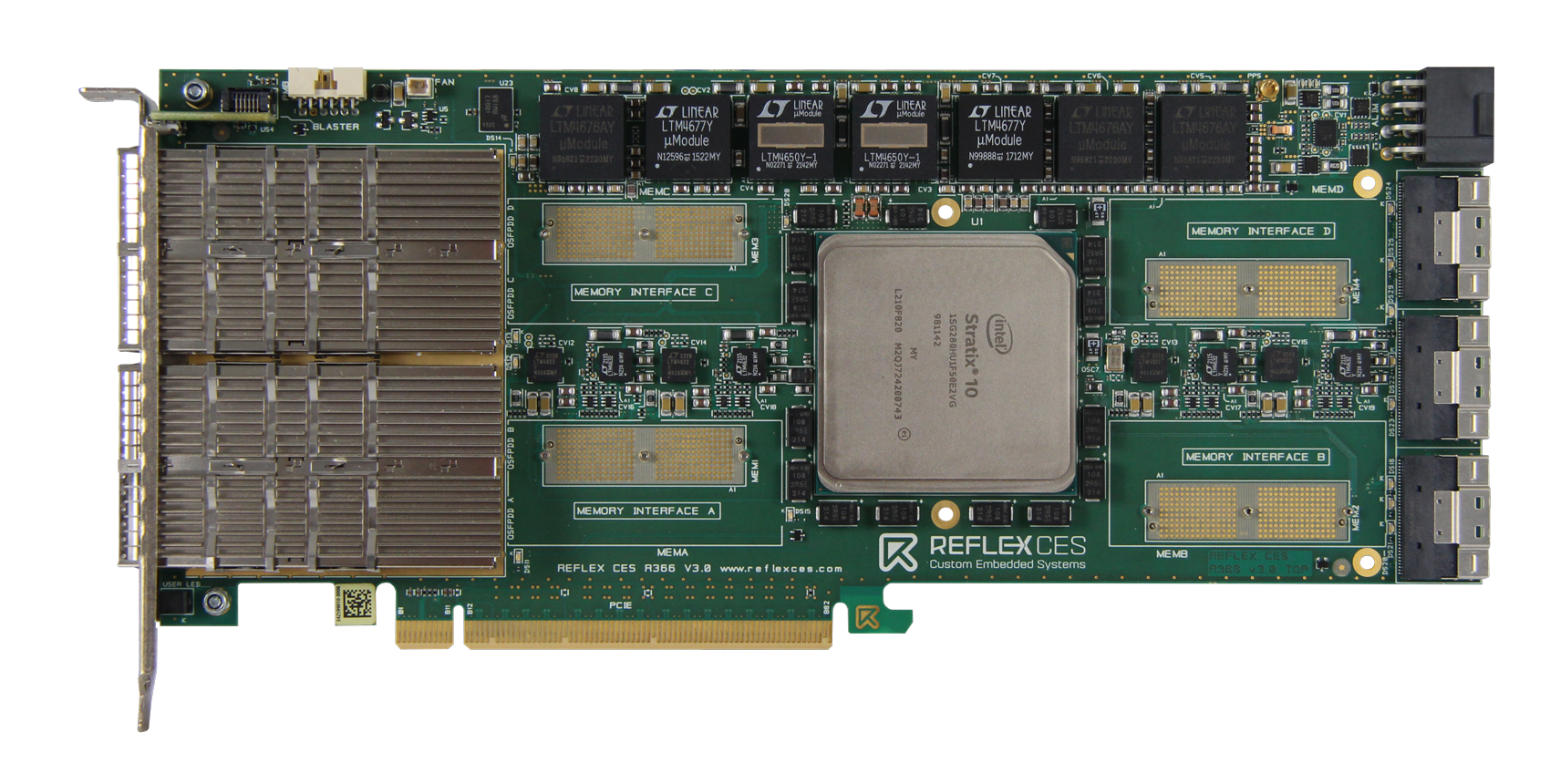

4 memory modules DDR4 or QDRII+ (depends on the board version)
DWF/STEP models and 2D drawing (upon request)
LTPowerPlay project
Ordering Information
XpressGXS10H-FH820GT
from Mouser
