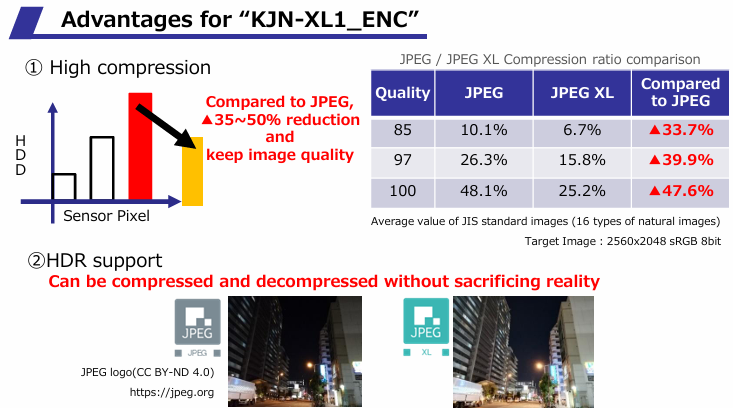

The KJN-XL1_ENC conform to the JPEG format which is a high-compression, high-quality JPEG standard established by ISO/IEC JTC 1/SC29/WG1 18181 in January 2022. This product has encoder-only functions.
Shikino High-Tech CO.,LTD
Key Features
- High quality
- High compression
- Latest JPEG standard
- HDR
- Hardware encoder
- AMBA interface
Offering Brief
Offering Brief
| Device Family | Agilex® 3 FPGA C-Series, Agilex® 5 FPGA D-Series, Agilex® 5 FPGA E-Series, Agilex® 7 FPGA F-Series, Agilex® 7 FPGA I-Series, Agilex® 7 FPGA M-Series, Agilex® 9 FPGA Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX FPGA, Arria® V GT FPGA, Arria® V GZ FPGA, Stratix® 10 AX FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX FPGA, Stratix® 10 TX FPGA, Stratix® III FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA |
|---|---|
| Offering Status | Production |
| Integrated Testbench | Yes |
| Evaluation License | Yes |
| Design Examples Available | Yes |
| Compliance | Yes |
| Compliance Link | Compliance Link |
| Latest Quartus Version Supported | 25.1.1 |
| OS Support | Safari,Safari On iOS,Edge(Up to r131),Firefox,Opera(Up to r114),Pale Moon,Chrome(Up to r109) |
| Development Language | Verilog |
RTL Source Code (Verilog)
Synthesis Constraints
Testbench
Design Documentation
Specification Document
C Model
Ordering Information
KJN-XL1_ENC
