TEI0187 is a System-on-Module based on Agilex® 5 E-Series SoC devices, combining FPGA fabric and an integrated Hard Processor System (HPS).

The current reference configuration, TEI0187-02-T4E111A, uses an A5ED065BB32AE4S device in the B32A package. It provides 1 GB of 32-bit LPDDR4 memory for the HPS and a separate 1 GB of 32-bit LPDDR4 memory for the FPGA fabric, together with 256 MB QSPI flash, 8 GB eMMC and two EEPROMs.

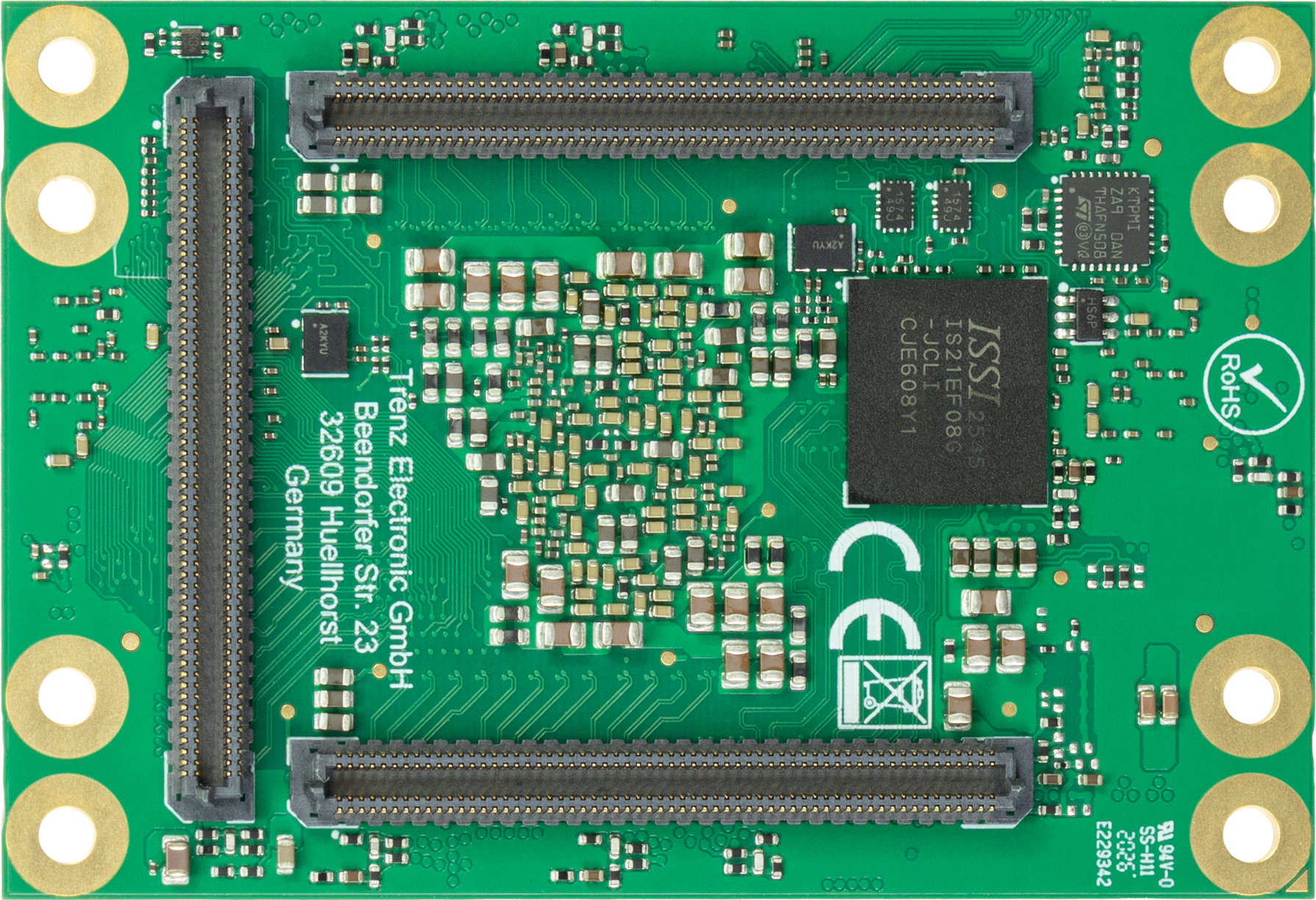

The 52 × 76 mm module connects to a carrier board through three 240-pin Samtec AccelerateHD ADM6 connectors. Interfaces include Gigabit Ethernet through an onboard RGMII PHY, USB 2.0 through an ULPI PHY, MIPI D-PHY and FPGA and HPS I/O. Revision 02 includes TPM 2.0.

The offering targets industrial and general test applications. Device, memory and I/O configurations depend on the selected ordering part number. The delivery scope is the module only.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Agilex® 5 E-Series SoC with FPGA fabric and HPS
  • 96 differential / 192 single-ended HSIO, 120 HVIO and 19 HPS I/O
  • 52 × 76 mm System-on-Module
  • 3 × 240-pin Samtec AccelerateHD ADM6 connectors
  • Separate 32-bit LPDDR4 memories: 1 GB for HPS and 1 GB for FPGA fabric
  • 256 MB QSPI flash
  • 8 GB eMMC in revision 02
  • Gigabit Ethernet PHY with RGMII
  • USB 2.0 PHY with ULPI
  • MIPI D-PHY with 4 data lanes
  • TPM 2.0 in revision 02
  • 24 transceivers in the reference configuration
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 5 FPGA E-Series
Offering Status Production
Device OPN(s) on Board A5ED065BB32AE4S
Form Factor 52 x 76 mm
Power 5 V or 12 V input supply.
Interfaces Gigabit Ethernet PHY (RGMII); USB 2.0 PHY (ULPI); USB 3.1 Gen1 support using one transceiver; MIPI D-PHY with 4 data lanes; 24 transceivers in the reference configuration; 96 differential / 192 single-ended HSIO; 120 HVIO; 19 HPS I/O supporting inter
Memory Reference configuration: 1 GB LPDDR4 for HPS and 1 GB LPDDR4 for FPGA fabric, both 32-bit; 256 MB QSPI flash (2 Gbit); 8 GB eMMC; 2 Kbit and 128 Kbit EEPROMs.
Connectors 3 × 240-pin Samtec AccelerateHD ADM6 board-to-board connectors.
Switches & LEDs No switches, push buttons or LEDs on the module.
Latest Quartus Version Supported 26.1.1

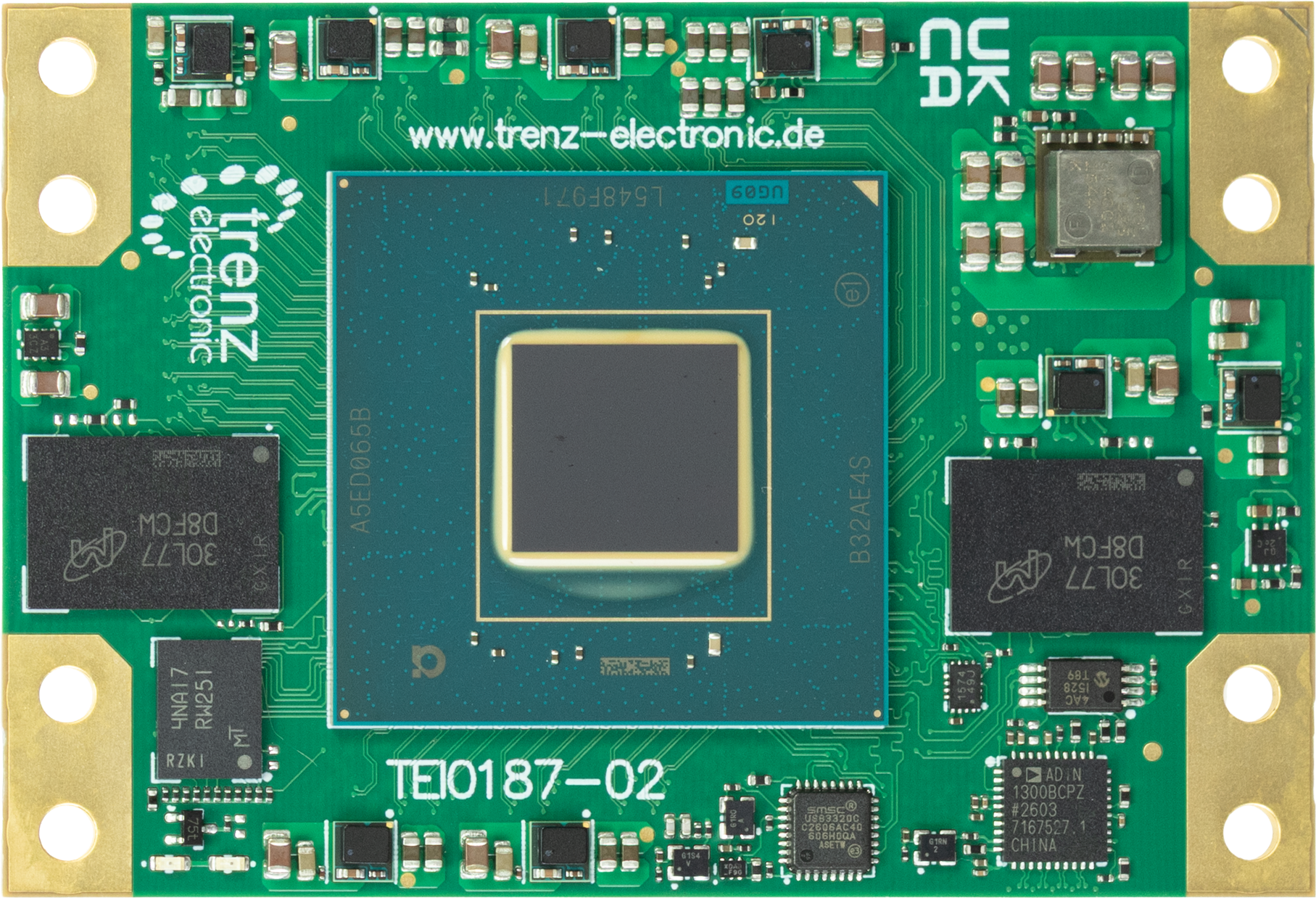

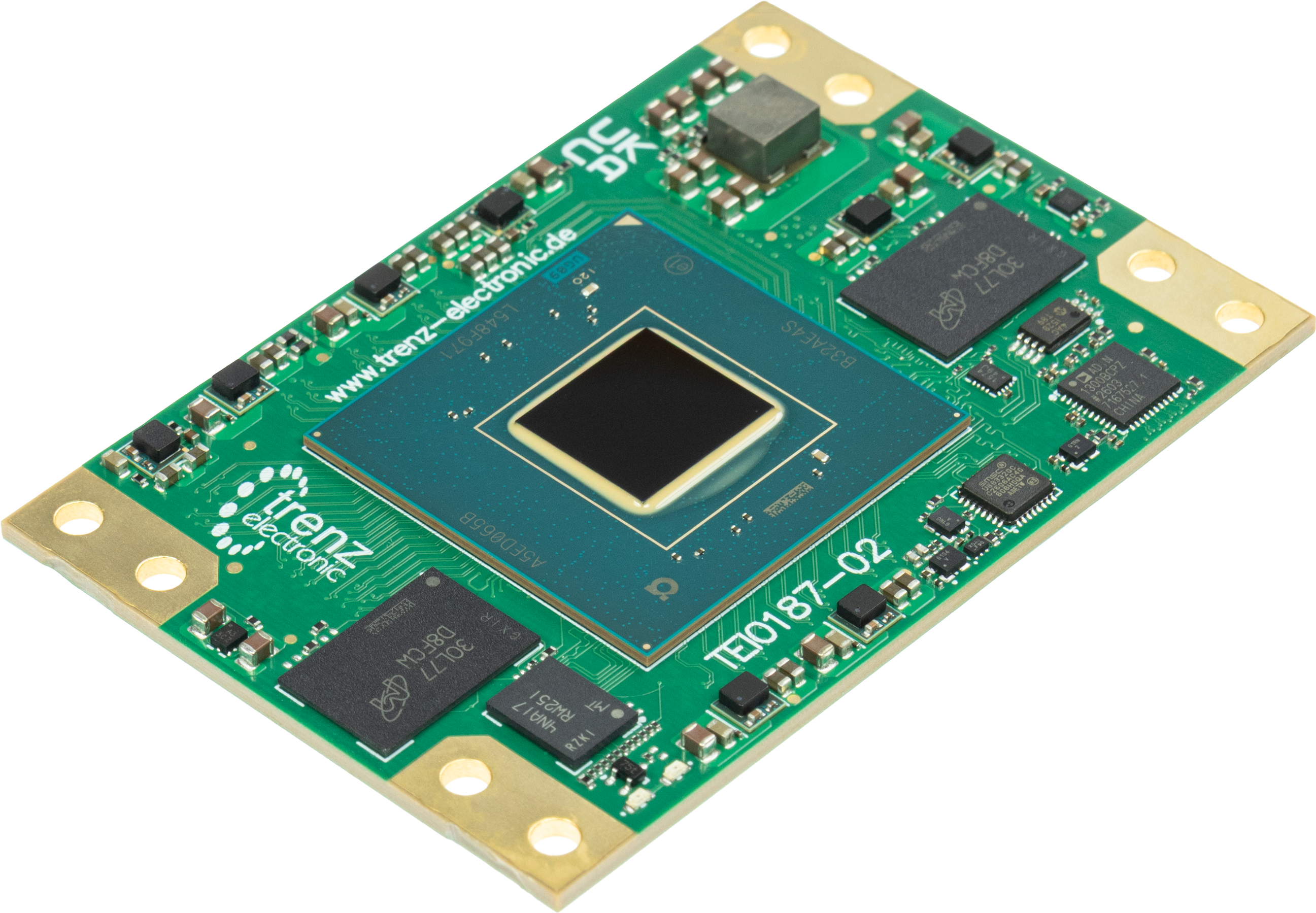

TEI0187 SoC module
