TEI0009 Cyclone® 10 LP FPGA Reference Kit

Trenz Electronic GmbH

Select

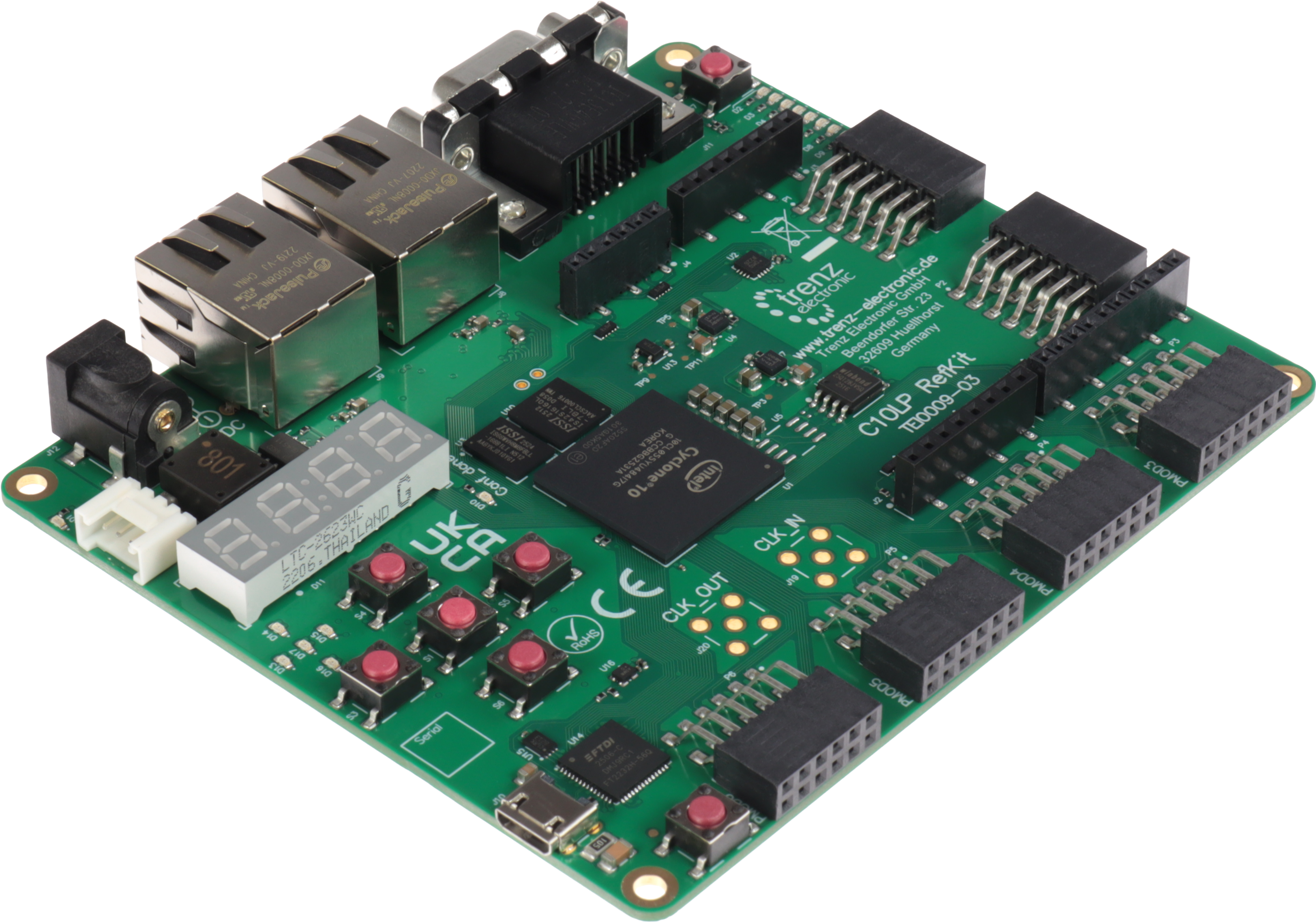

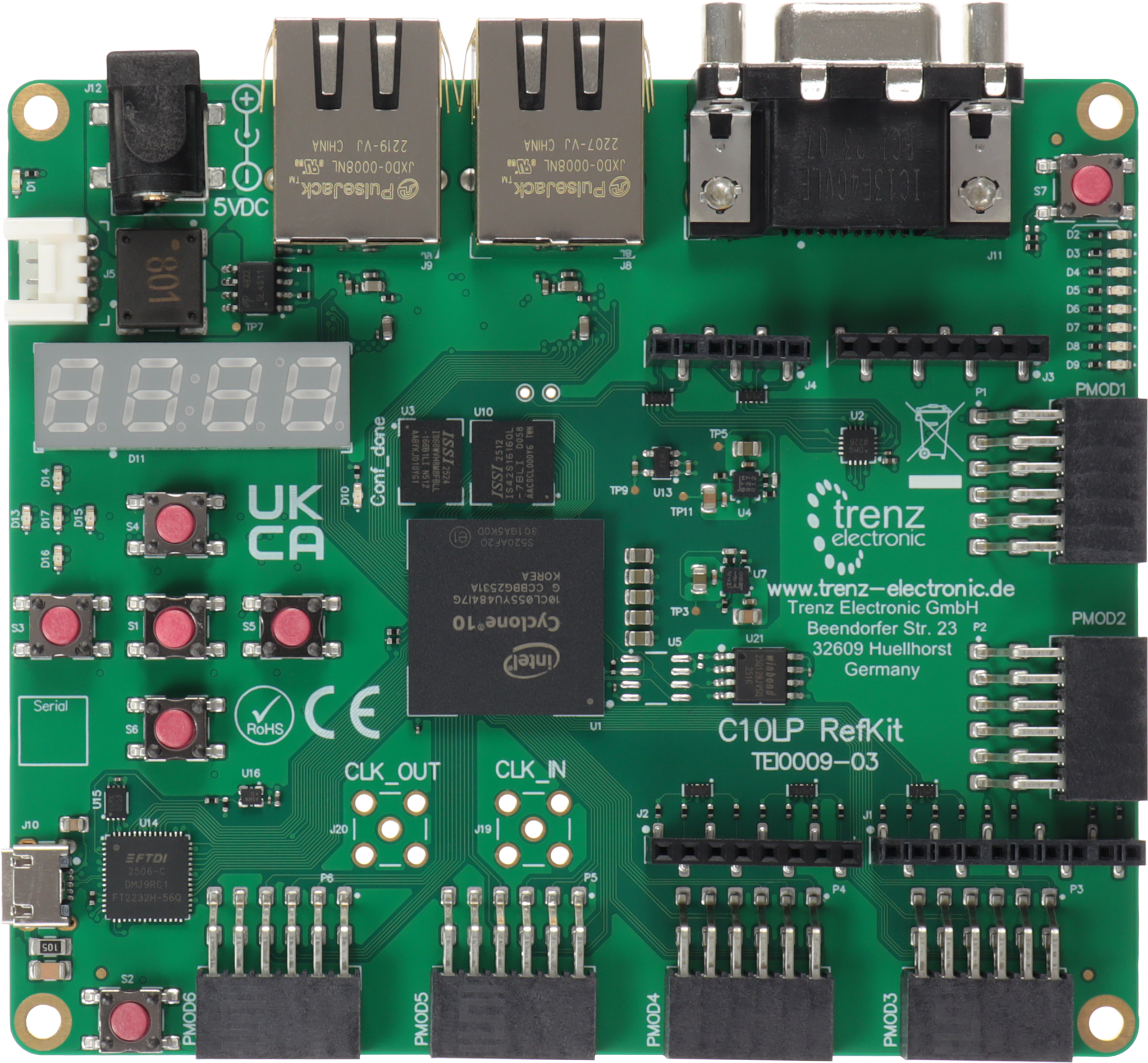

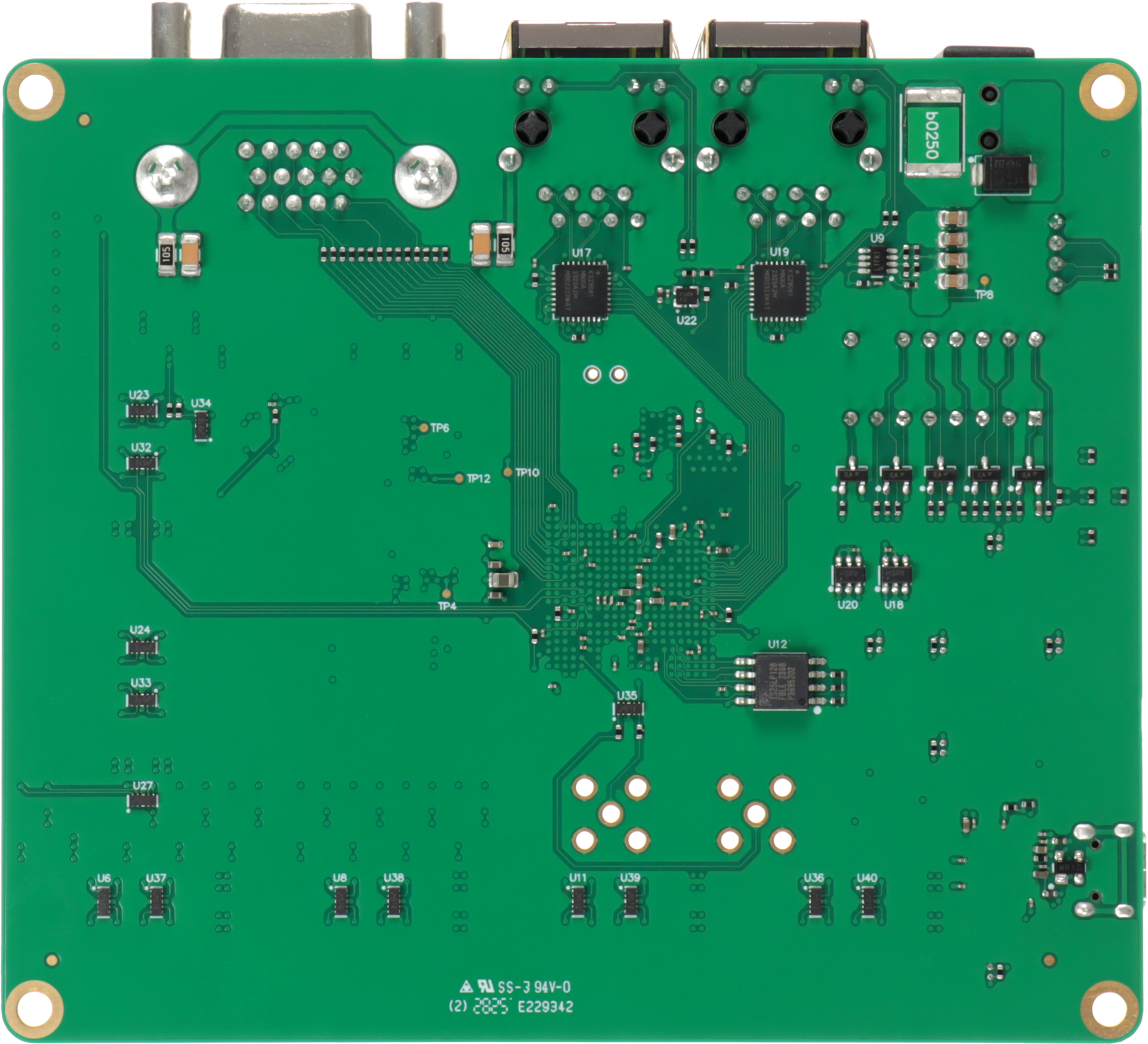

The TEI0009 Cyclone® 10 LP FPGA Reference Kit provides a development and evaluation platform for industrial and general test applications.

This offering covers TEI0009-03-PHIQ2A, based on a Cyclone® 10 LP 10CL055YU484I7G FPGA. Its memory configuration includes 32 MB SDRAM, 8 MB HyperRAM, 2 MB serial configuration flash and 16 MB user Quad-SPI flash.

The board provides two Fast Ethernet ports, configurable analog I/O, Arduino-compatible headers, six Pmod-compatible connectors, a Grove connector and a VGA connector. An integrated USB programmer provides JTAG and UART connectivity.

The kit includes the development board, a power supply with cable and four power supply adapters. Specifications refer to revision 03; earlier revisions should be checked against their corresponding documentation.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Cyclone® 10 LP FPGA with 55 kLE
  • 32 MB SDRAM and 8 MB HyperRAM
  • 2 MB configuration flash and 16 MB user Quad-SPI flash
  • Integrated USB programmer with JTAG and UART
  • Two 10/100 Mbit/s Ethernet ports
  • Eight-channel configurable 12-bit ADC/DAC
  • Arduino-compatible headers and six Pmod-compatible connectors
  • Grove I2C connector and VGA connector
  • User push buttons, LEDs and seven-segment display
  • 95 × 110 mm board with 5 V DC power input
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Cyclone® 10 LP FPGA
Offering Status Production
Device OPN(s) on Board 10CL055YU484I7G
Form Factor 95 x 110 mm
Power 5 V DC input via power jack.
Interfaces Dual 10/100 Mbit/s Ethernet; USB JTAG and UART through the integrated programmer; FPGA GPIO; Grove I2C; VGA; 8-channel configurable 12-bit ADC/DAC with on-chip reference; SDRAM, HyperBus and Quad-SPI memory interfaces.
Memory 32 MB SDRAM; 8 MB HyperRAM (PSRAM); 2 MB serial configuration flash; 16 MB user Quad-SPI flash; 2 MAC-address EEPROMs.
Connectors Arduino-compatible headers; 6 Pmod-compatible connectors; 1 Grove connector; 1 VGA D-Sub connector; 2 RJ45 connectors; 1 Micro-USB 2.0 Type-B connector; DC power jack.
Switches & LEDs 5 user push buttons; 2 reset push buttons; 13 user LEDs; status and power LEDs; 1 seven-segment display.
Latest Quartus Version Supported 17.1.1

1 × TEI0009-03-PHIQ2A Cyclone® 10 LP FPGA development board

1 × 5 V / 3 A / 15 W power supply with cable

1 × set of four power supply adapters
