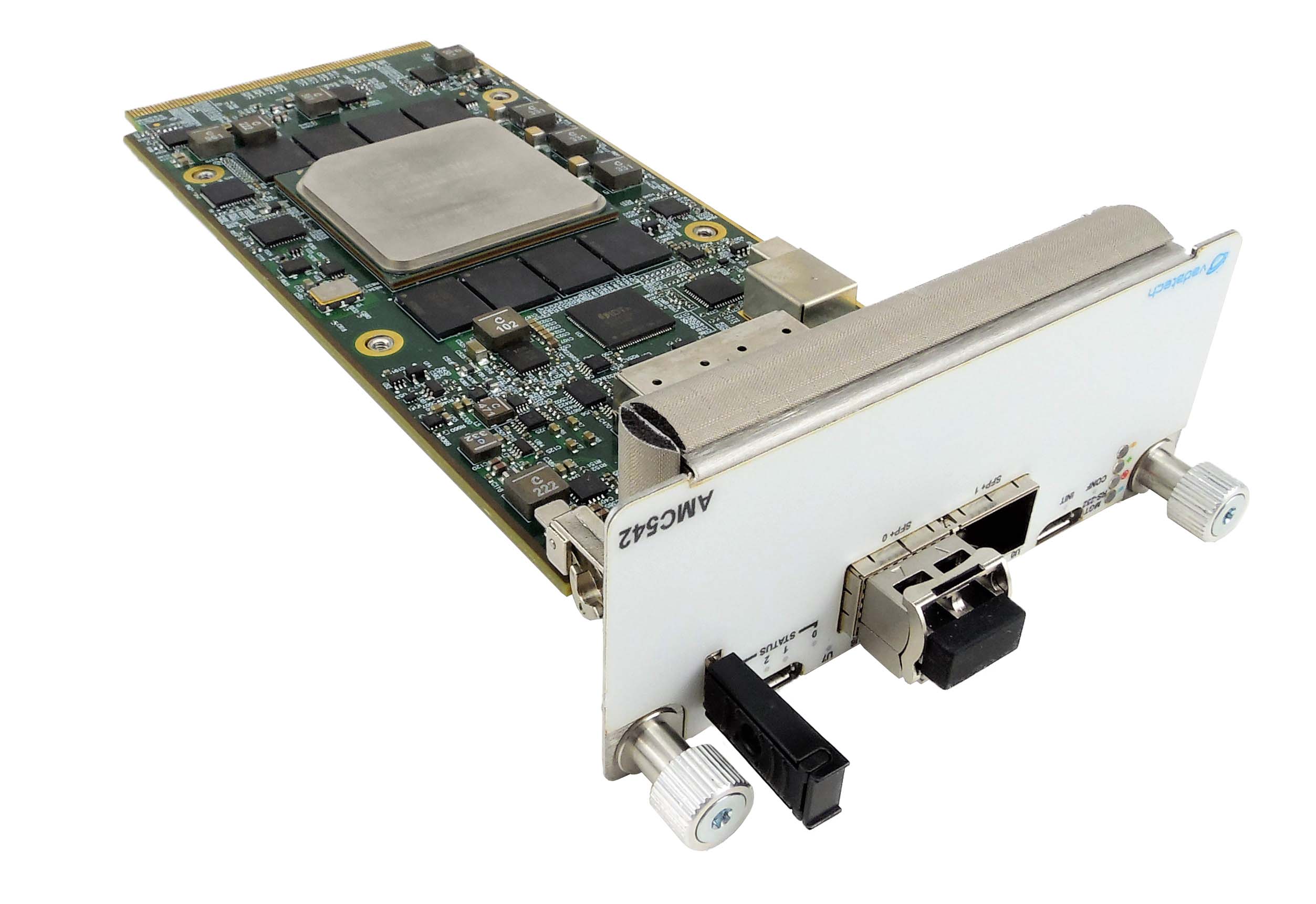

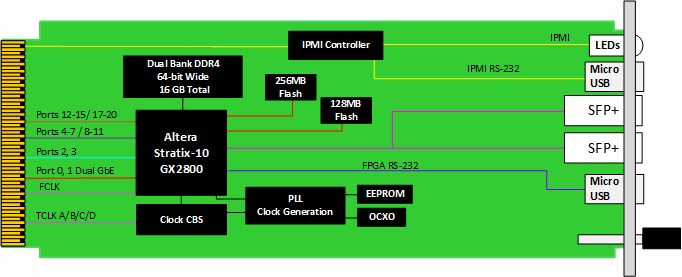

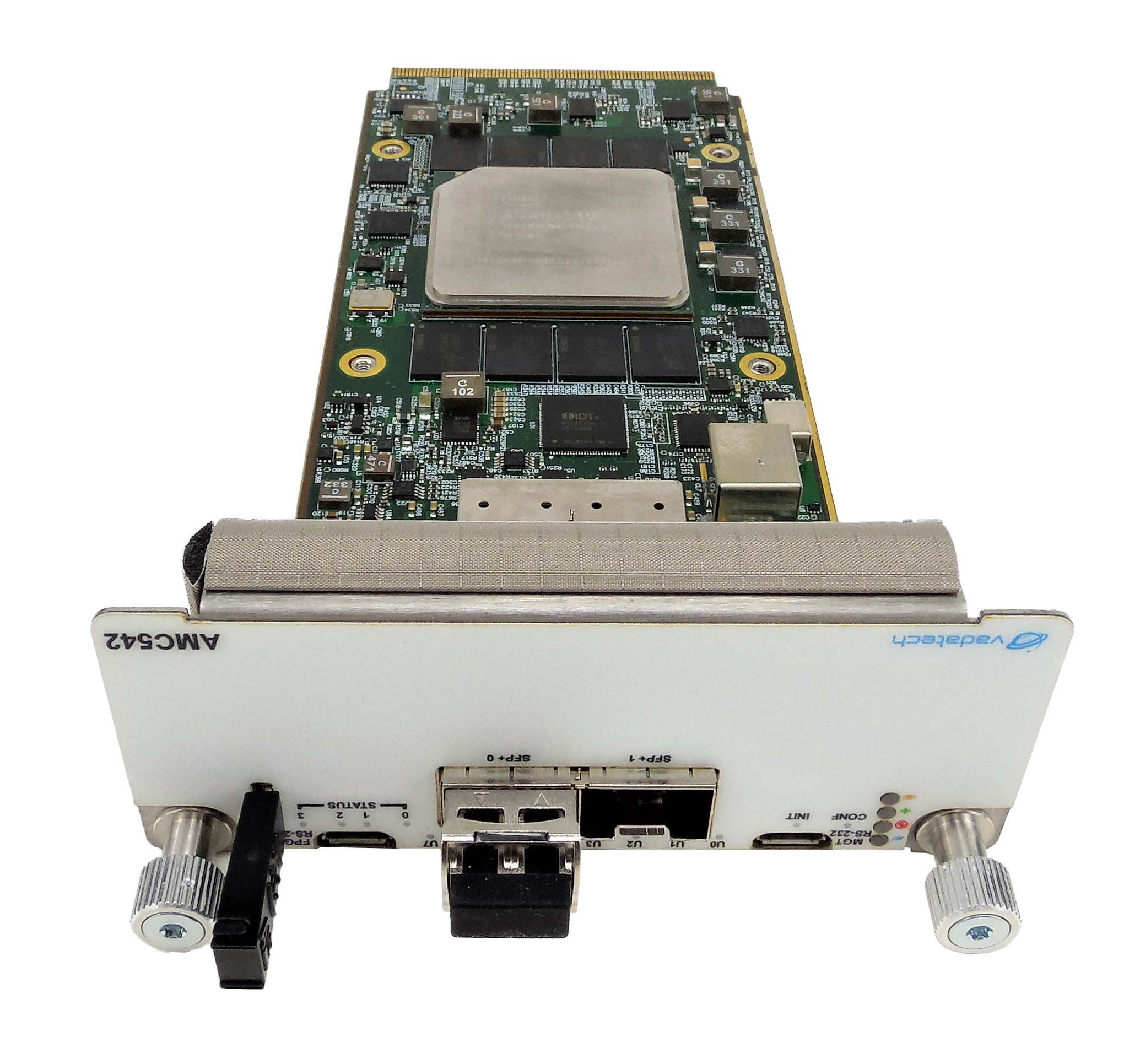

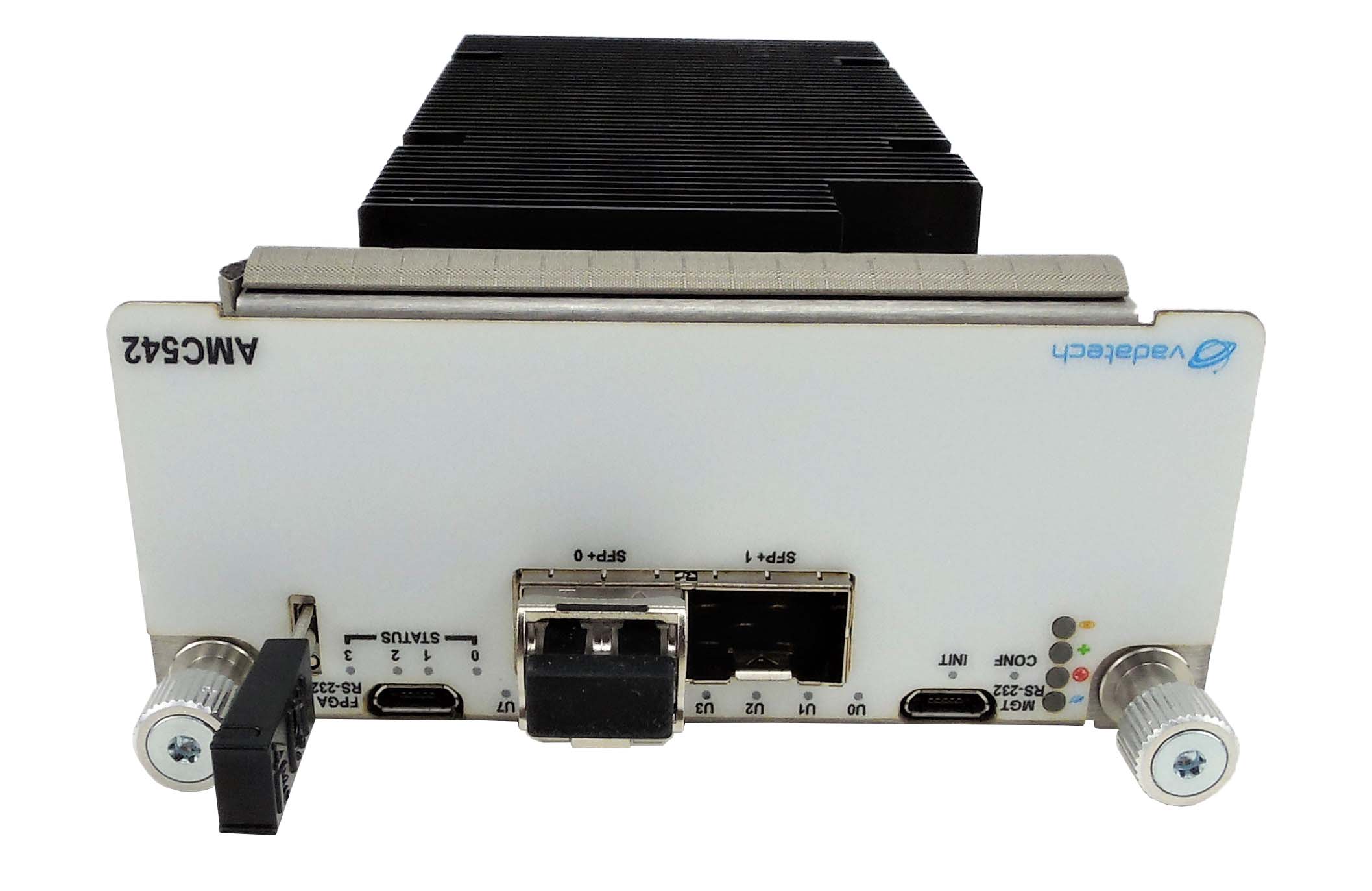

The AMC542 is based on the Stratix® 10™ GX2800 FPGA in the F1760 package and is compliant with AMC.1, AMC.2, AMC.3, and/or AMC.4 specifications. The module has a dual front panel SFP+ for 2x 10GbE fiber. The onboard, re-configurable FPGA interfaces directly to the AMC FCLKA and TCLKA-D via a Cross Bar Switch (CBS) MLVDS. It also has two banks of DDR4 (64-bit wide), giving 16 GB total memory. This allows for large buffer sizes to be stored during processing as well as for queuing the data to the host. The module includes an OCXO on-board clock reference, which generates precise protocol fixed clocks routed to the FPGA to support SyncE over GbE and 10GbE.
VADATECH, INC
Key Features
Offering Brief
Offering Brief
| Device Family | Stratix® 10 GX FPGA |
|---|---|
| Offering Status | Production |
AMC542
