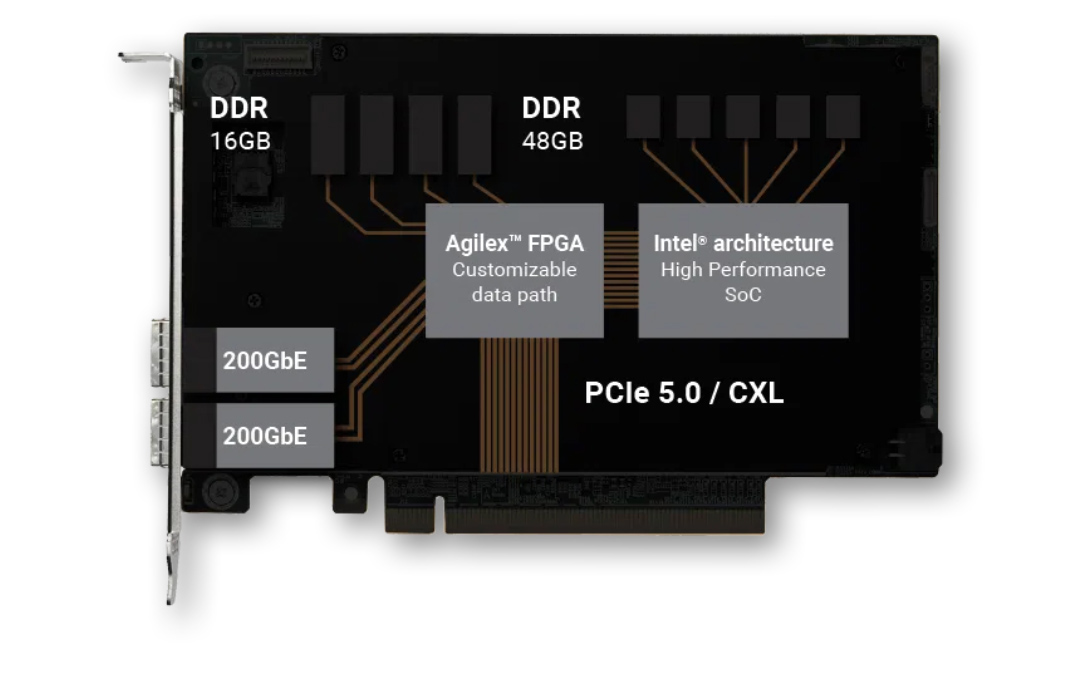

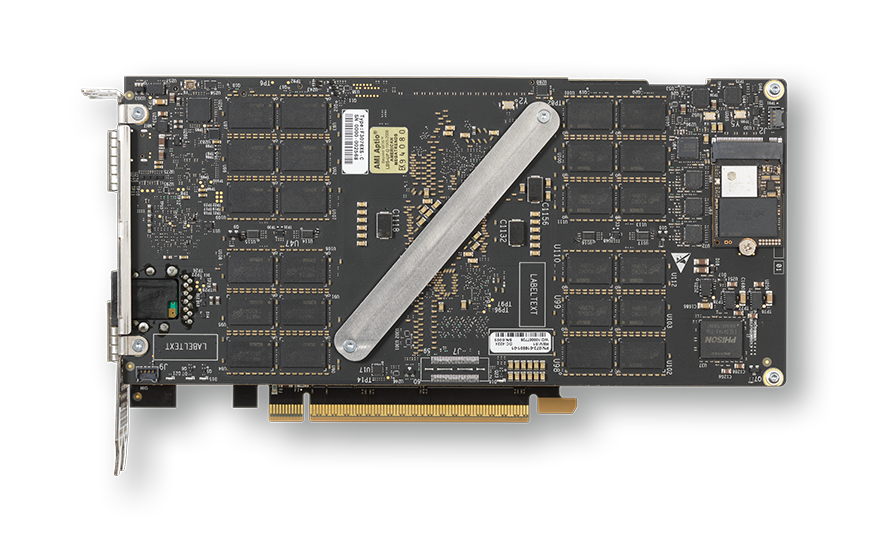

Powerful Altera®-based Data Processing Unit (DPU) The Napatech DPU F3076X is a 400G PCIe Gen5 card with an Agilex® AGI041 FPGA and a Xeon® 6 32-core SoC. The F3076X is based on DPU architecture, and the unique combination of FPGA and full-fledged Xeon® 6 CPU on a PCI card allows for unique offload capabilities. The Agilex® AGI041 FPGA provides 2×100/200Gbps Ethernet, 3x PCIe Gen 5.0 interfaces, and plenty of resources to support a 400G pipeline for line rate processing of data. One PCIe Gen 5.0 interface connects to the host, whereas another PCIe Gen 5.0 interface provides full 400G bandwidth between the FPGA and the Xeon® 6 SoC.
Napatech
Key Features
- Data plane acceleration and offload in FPGA
- Control and management plane offload in SoC
- Up to 1x400G or 2x200G Ethernet
- 2x PCIe5 x16
- 32-core Xeon SoC
Offering Brief
Offering Brief
| Device Family | Agilex® 7 FPGA I-Series |
|---|---|
| Offering Status | Sampling |
| Device OPN(s) on Board | AGIC041R31B1E2VB |
| Form Factor | Dual-slot, full-height, 3/4-length |
| Power | Passive cooling |
| Interfaces |
2x QSFP-DD network interfaces 1x400G, 2x200G, 4x100G, 8x50G, 4x40G, 16x25G, 16x10G PCIe5 x16 lane host interface (edge connector) |
| Memory | 4×4 GB DDR4-2666MT/s (40b + ECC) and 4×12 GB DDR5-5600MT/s (64b + ECC) |
| Connectors | 3x PCIe Gen 5.0 x16 (32 GT/s) |
| Switches & LEDs | . |
| Latest Quartus Version Supported | 24.2.0 |
Napatech Link-Programmable™ Software
Ordering Information
F3076X
from Direct
$0.00
