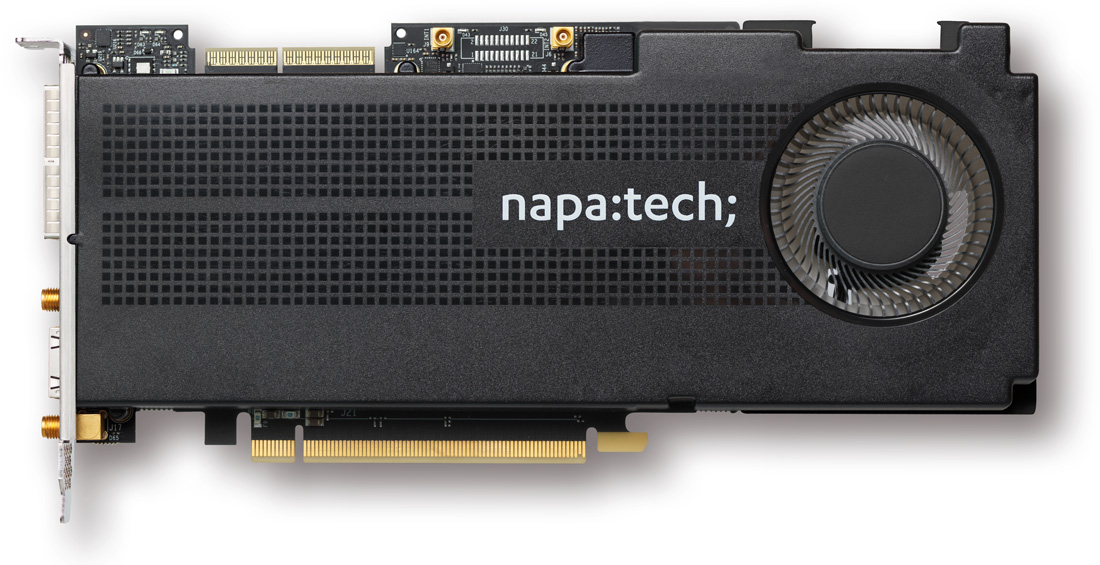

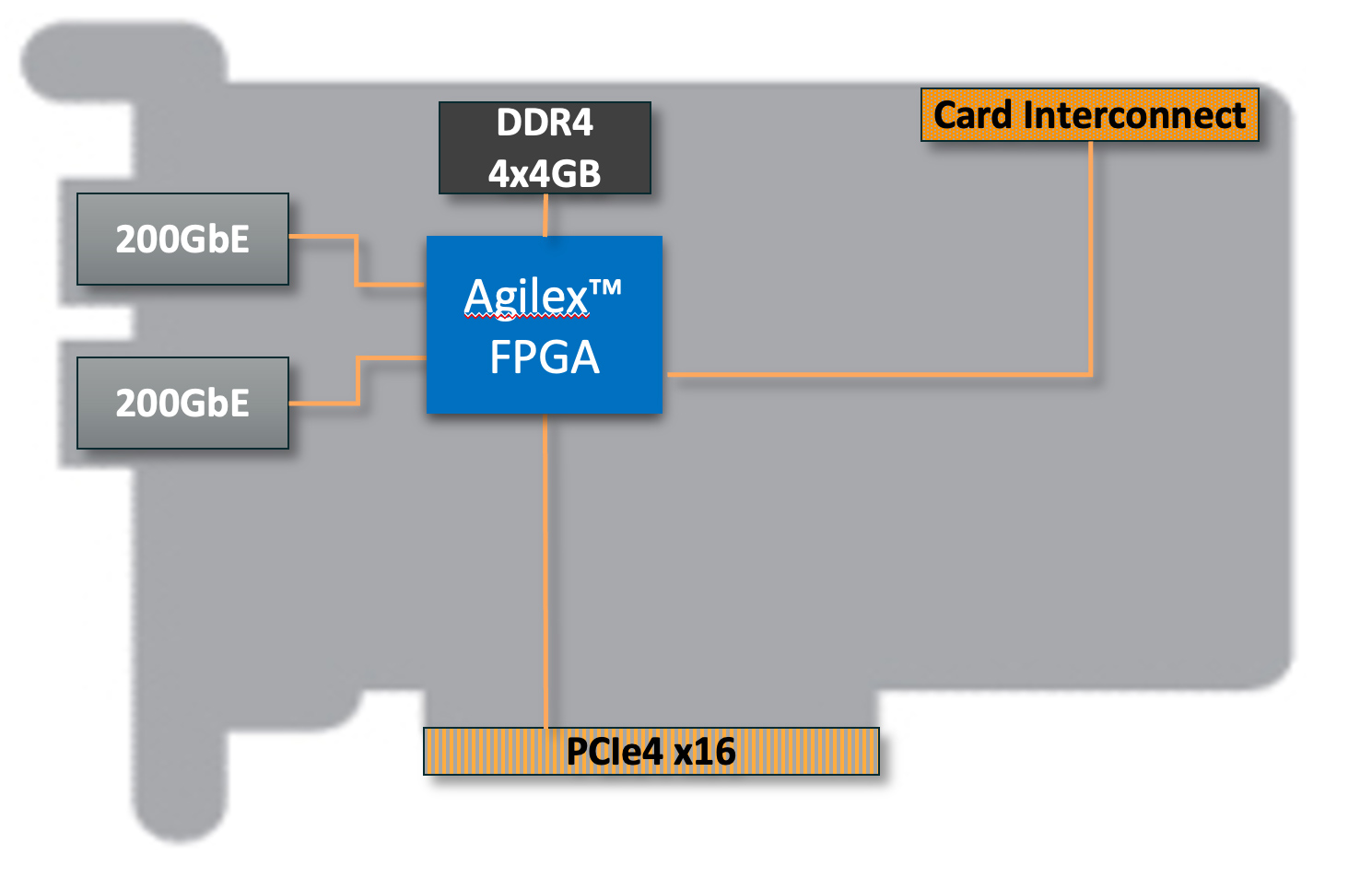

The Napatech SmartNIC NT400D13 is a 2x200G PCIe Gen4 card with Altera’s Agilex® AGFB022 FPGA. 18 GB DDR4 SDRAM (16 GB + ECC), PCIe Gen4 16 lanes @ 16 GT/s and 2 × QSFP56 network ports. The Agilex® AGFB022 FPGA provides hardened 100/200Gbps Ethernet, the PCIe4 ×16 host interface supports full-duplex 2 × 100G or 1 x 200G packet transfer between network ports and server memory. These powerful capabilities allow for unique offload capabilities, and the NT400D13 is the perfect solution for network and security data plane offload and acceleration.
Napatech
Key Features
- 400G data plane acceleration and offload in FPGA
- 220 Gbps packet transfer rate between FPGA and host
- Up to 2x200G Ethernet
- 2x200G, 2x100G, 2x40G, 8x50G, 8x10/25G
- 1x PCIe4 x16
Offering Brief
Offering Brief
| Device Family | Agilex® 7 FPGA F-Series |
|---|---|
| Offering Status | Development |
| Device OPN(s) on Board | AGFB022R25A1I1V |
| Form Factor | Full height and half length |
| Power | Active cooling and passive cooling |
| Interfaces |
2x QSFP56 network interfaces 2x200G, 2x100G, 2x40G, 8x50G, 8x10/25G PCIe4 x16 lane host interface (edge connector) 200 Gbps card interconnect interface |
| Memory | 4x4 GB DDR4-2666MT/s (64b + ECC) FPGA memory (18 GB total) |
| Connectors | PCIe4 x16 lane host interface (edge connector) |
| Switches & LEDs | . |
| Latest Quartus Version Supported | 24.2.0 |
Ethernet Front Port Compliance
EMC Compliance
Environmental Compliance
Event Handling & System Monitoring
PCI Compliance
Safety Compliance
Conflict Minerals Compliance
Shock & Vibration Robustness
Ordering Information
NT400D13
from Direct
$0.00
