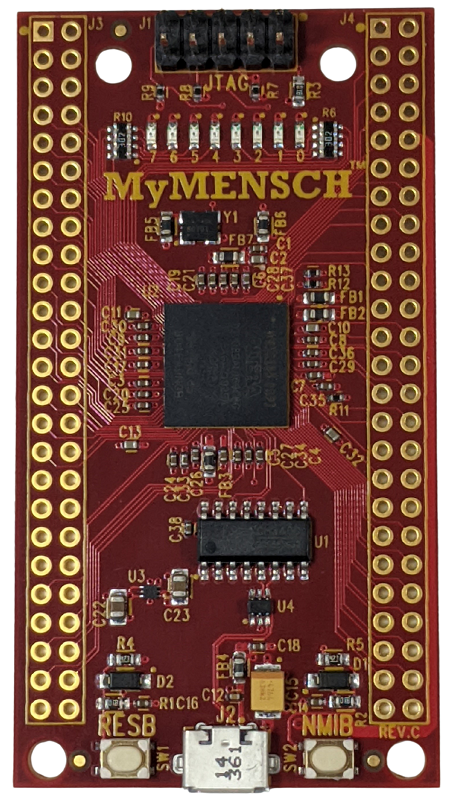

The MyMENSCH™ (W65Cx65MMC10M08) is a compact, high-flexibility single-board computer and FPGA development platform built around the MAX® 10 FPGA, designed for rapid prototyping of 65xx microcontroller-based or custom systems. At just 1.50” × 2.75" and access to 87 IO, this compact board can easily be expanded to meet your custom needs. Board comes with pre-programmed WDC microcontroller core with extensive GPIO, UART, I2C, and SPI interfaces ready for sensing, processing, communication, and actuation applications out of the box. All I/O runs at 3.3 V with USB-powered operation and support for industry standard tools and languages (Assembly, C, Verilog/HDL). MyMENSCH accelerates learning, embedded design, evaluation, and customization leveraging the MAX® 10's device resources and the legendary 65xx architecture.
WDC
Key Features
- MAX® 10 FPGA
- Access to 87 IO
- Access to dedicated and round-robin ADC
- 8x LEDS, 2x Pushbutton
Offering Brief
Offering Brief
| Device Family | MAX® 10 FPGA |
|---|---|
| Offering Status | Production |
| Device OPN(s) on Board | 10M08SAU169C8G |
| Form Factor | PCB |
| Power | 5V USB |
| Interfaces | JTAG, MicroUSB, WDC offers IP with GPIO, UART, SPI, I2C interfaces |
| Memory | No additional |
| Connectors | 2x Unpopulated 2x25 0.10" headers, JTAG, Micro USB |
| Switches & LEDs | 2x Pushbutton SPST, 8x LEDS |
| Latest Quartus Version Supported | 25.1.0 |
1x MyMENSCH™
Expansion boards available separately
Ordering Information
W65Cx65MMC-C
from Direct
$75.00
W65Cx65MMC-C
from Digikey
$75.00
