Kendrion 3T delivers interferometry-level precision at a fraction of the cost. The system is fully temperature-stabilized, production-calibrated, and highly flexible thanks to FPGA-based signal processing. Sub-nanometer accuracy is achieved without lasers, optics, or the high costs typically associated with interferometric systems. The platform is a compact, temperature-stable, and fully configurable capacitive measurement system with sub-nanometer resolution and integrated sensor diagnostics. It is designed for demanding high-tech OEM applications.
Kendrion 3T
Key Features
- Sub-Nanometer Distance-Measurement System
- Vibration monitoring | Material characterization | Coating thickness measurement | Predictive maintenance
- Designed for demanding high-tech OEM applications
Offering Brief
Offering Brief
| Device Family | Agilex® 3 FPGA C-Series, Arria® 10 GX FPGA, Cyclone® 10 LP FPGA |
|---|---|
| Offering Status | Production |
| Integrated Testbench | Yes |
| Design Examples Available | Yes |
| Demo | Yes |
| Latest Quartus Version Supported | 25.1.0 |
| OS Support | Windows |
| Development Language | VHDL |

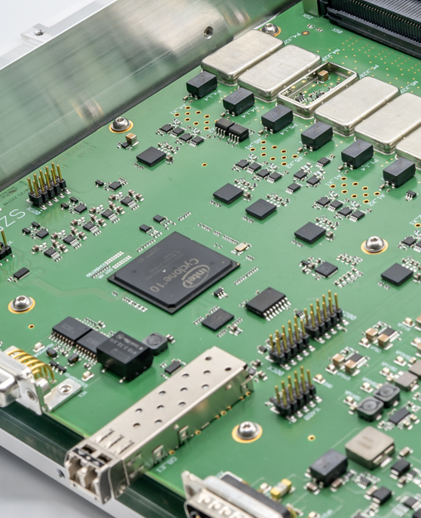

Hardware schematic, PCB layout, and FPGA IP
Ordering Information
CAP-SENSE-C10LP
from Direct
