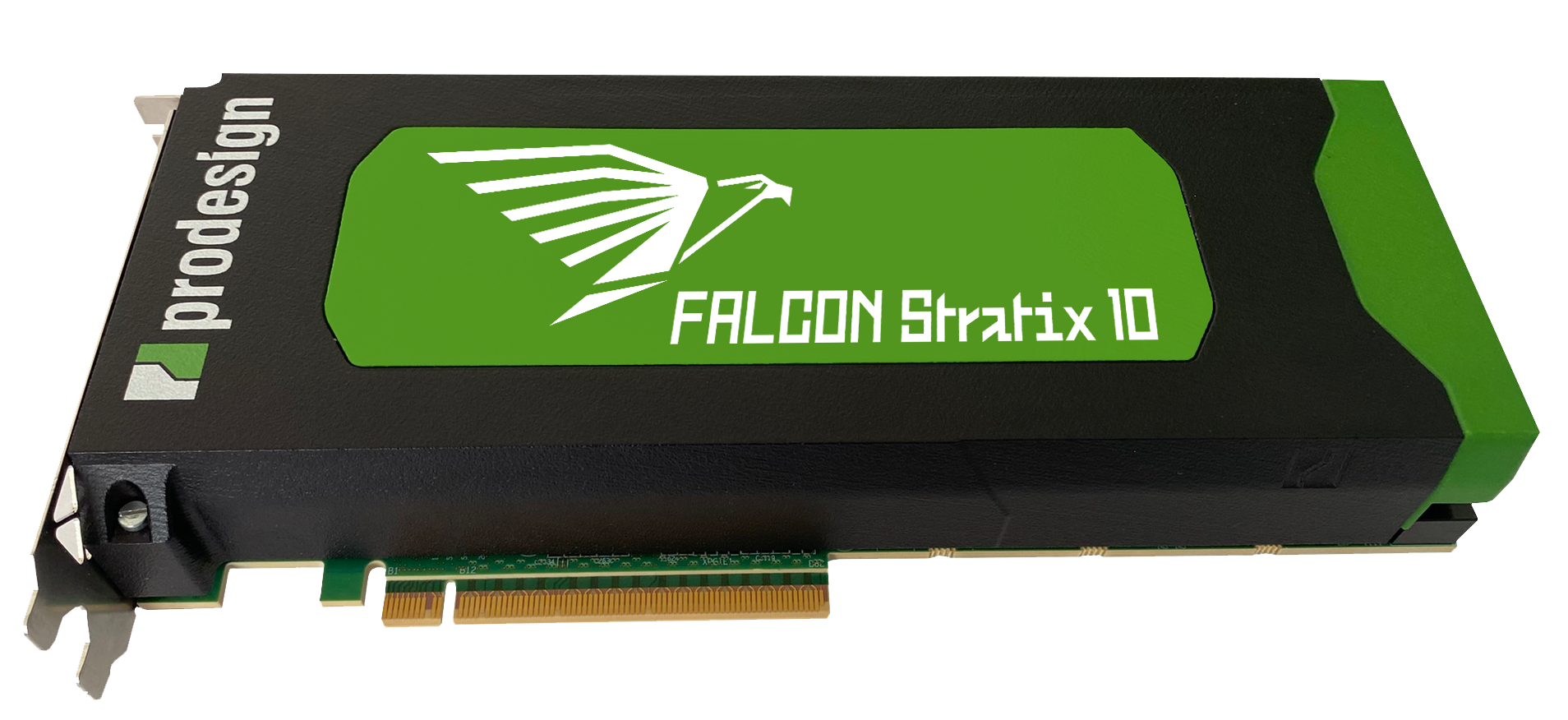

The FALCON Stratix acceleration card offers Altera® Stratix® 10 FPGA technology with high throughput HBM2 memory integration. The board is based on PCIe Gen3 x16 and offers four 100GE QSFP-DD front ports supporting 8x 100Gbit/s or 4x 200Gbit/s. Further, it offers three programmable SODIMM sockets and three high-speed NovaRay® connectors for connecting multiple memory modules or peripherals. Supporting HDL
PRO DESIGN Electronic GmbH
Key Features
- Altera® Stratix® 10 MX FPGA incl. HBM2
- PCIe Gen3 x16
- 4x QSFP28-DD network connectors with 8x 100Gbps / 4x 200Gbps
- 3x SODIMM sockets with programmable I/Os for Standard DDR4 modules or Custom memory modules or daughter cards
- 3x High-speed Samtec NovaRay® connectors for Board-to-board connection or High throughput peripheral interfaces
Offering Brief
Offering Brief
| Device Family | Stratix® 10 GX FPGA |
|---|---|
| Offering Status | Production |
| Device OPN(s) on Board | 1SG210HU1F50I2LG |
| Form Factor | 254 mm x 111.28 mm |
| Power | 2x Standard ATX 8-pin & PCIe slot 12V (100 W - 375 W) |
| Interfaces |
- PCIe Gen3 x16 interface direct to FPGA - 4x QSFP28-DD connectors |
| Memory | 3x SODIMM slots with programmable I/Os for memory and/or other interfaces |
| Connectors | 3x Samtec NovaRay® connectors (112 Gbps PAM4 Extreme Density Arrays) |
| Latest Quartus Version Supported | 25.3.1 |
Altera® Stratix® 10 MX
PCIe Gen3 x16
4x QSFP28-DD network connectors with 8x 100Gbps / 4x 200Gbps
3x SODIMM sockets with programmable I/Os
3x High-speed Samtec NovaRay® connectors
Ordering Information
PD-FALCON-1SM21
