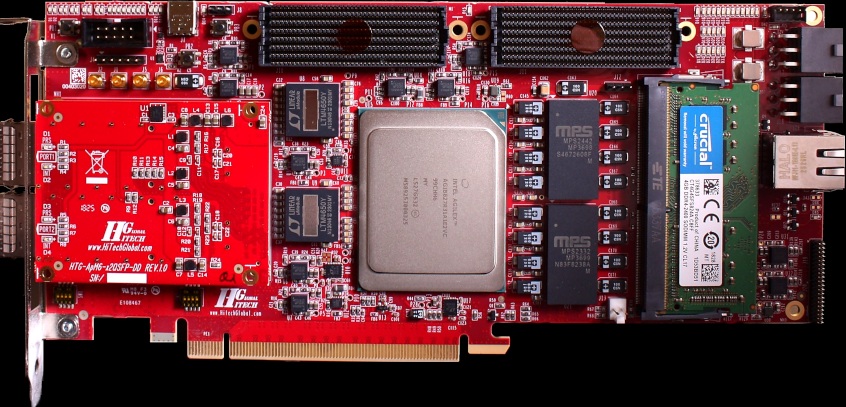

he HTG-AGLX-7P architecture allows easy and versatile functional expansion through two Vita 57.4 compliant High-Pin-Count FMC+ ports and one high-speed AcceleRate® ports (APF6). The FMC+ ports provide access to total of 32 F-tile transceivers and 320 GPIOs. The AcceleRate® ports provide access to 16 F-tile transceivers .
Key Features
- Populated with one AGI027 Agilex 7 "I" series FPGA
- x16 PCIE Gen5 end point connector
- x2 FMC+ expansion ports with total of x32 F-Title transceivers & x320 GPIOs
- x1 AcceleRate® expansion ports (APF6) with x16 F-Title transceivers
- x2 72-bit SODIMM sockets supporting up to 64GB of DDR4 memory (shipped with two 8GB SODIMMs)
- QSPI Flash for configuration
- x1 10/100/1000 Ethernet port
- x1 MicroSD socket
- x1 USB/UART port
- x1 Debug port
- Supports both PCI Express and Standalone operations
Offering Brief
Offering Brief
| Device Family | Agilex® 7 FPGA I-Series |
|---|---|
| Offering Status | Production |
| Device OPN(s) on Board | AGIB027R31B2E2V |
| Form Factor | PCI Express |
| Power | 45 |
| Interfaces | QSFP-DD, PCIE, Ethernet , USB, DDR4, UART, MicroSD |
| Memory | 64GB DDR4 |
| Connectors | APF6, FMC+ |
| Switches & LEDs | 20 |
| Latest Quartus Version Supported | 26.1.0 |
Schematic
User Manual
FPGA pinout file
DDR4 Reference Design
PCIe Reference Design
.STEP file
Ordering Information
HTG-AGLX-7P
