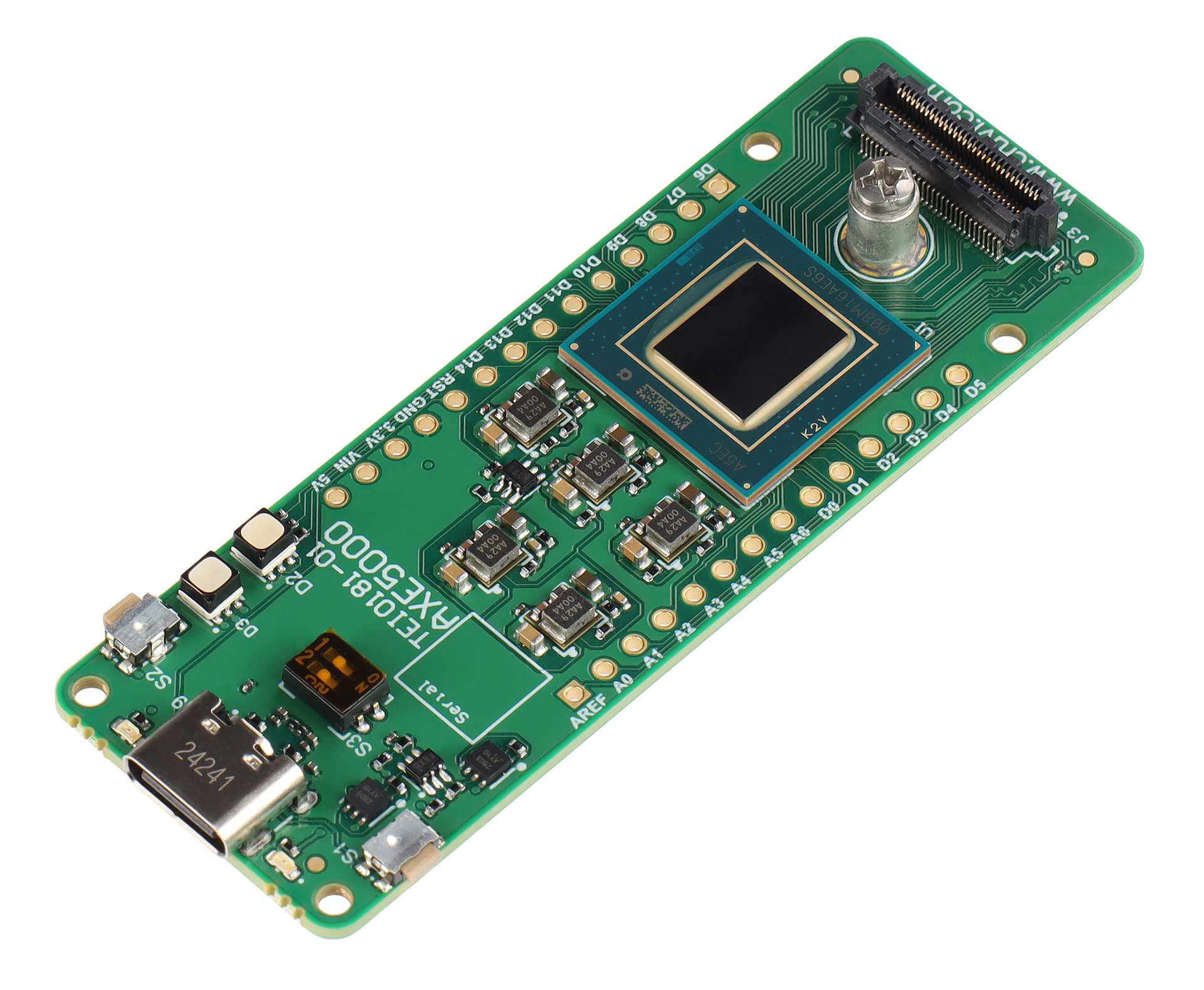

Arrow’s Devkit enables customers to evaluate the features of the Agilex® 5 E and speed up their development. With the CRUVI HS and Arduino MKR connectors, various adapter boards can be connected, to add more peripherals. Key Features: FPGA -Altera® Agilex® 5 E-Series FPGA (A5EC008BM16AE6S) -Package: MBGA 896-pin 16mm x 16mm 0.5mm pitch (M16A) -Speed Grade: 6 -Temperature: Extended (Tj = 0 °C to 100 °C) -Memory/Storage -128 Mb HyperRAM 2.1 x8 pSRAM -256 Mb QSPI for configuration via the SDM On Board: -USB Blaster III -3-axis Accelerometer -2x RGB LED's -1x LED -2x DIP Switches -2x Buttons Interfaces: -1x CRUVI HS Connector -1x Arduino MKR Connector -UART via USB Blaster Connector Power: -5 V Input supply voltage via USB-C Connector
Arrow Electronics
Key Features
- NIOS-V/g with cache, running code out of hyperram
Offering Brief
Offering Brief
| Device Family | Agilex® 5 FPGA E-Series |
|---|---|
| Offering Status | Production |
| Device OPN(s) on Board | A5EC008BM16AE6S |
| Form Factor | 55mm X 71mm |
| Power | 5V USB-C |
| Interfaces | CRUVI, MKR, USB blaster III, UART, MIPI |
| Memory | 128Mb hyperram, 256 Mb QSPI |
| Connectors | CRUVI, MKR, USB-C |
| Switches & LEDs | 2X DIP switch, 1 RGB LED, 1 Red LED |
| Latest Quartus Version Supported | 26.1.0 |
dev kit only
Ordering Information
AXE5000
from Arrow
$149.00
