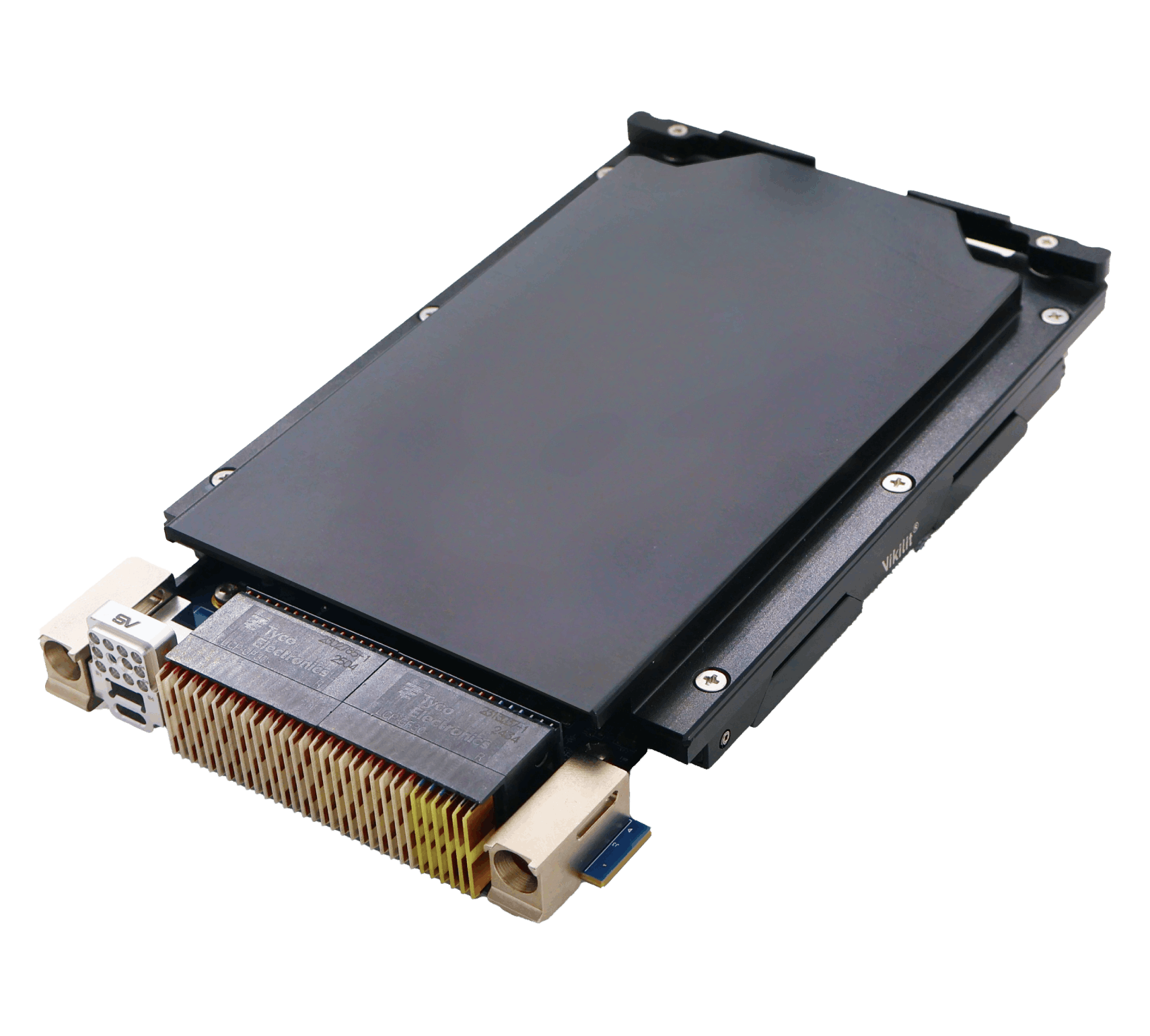

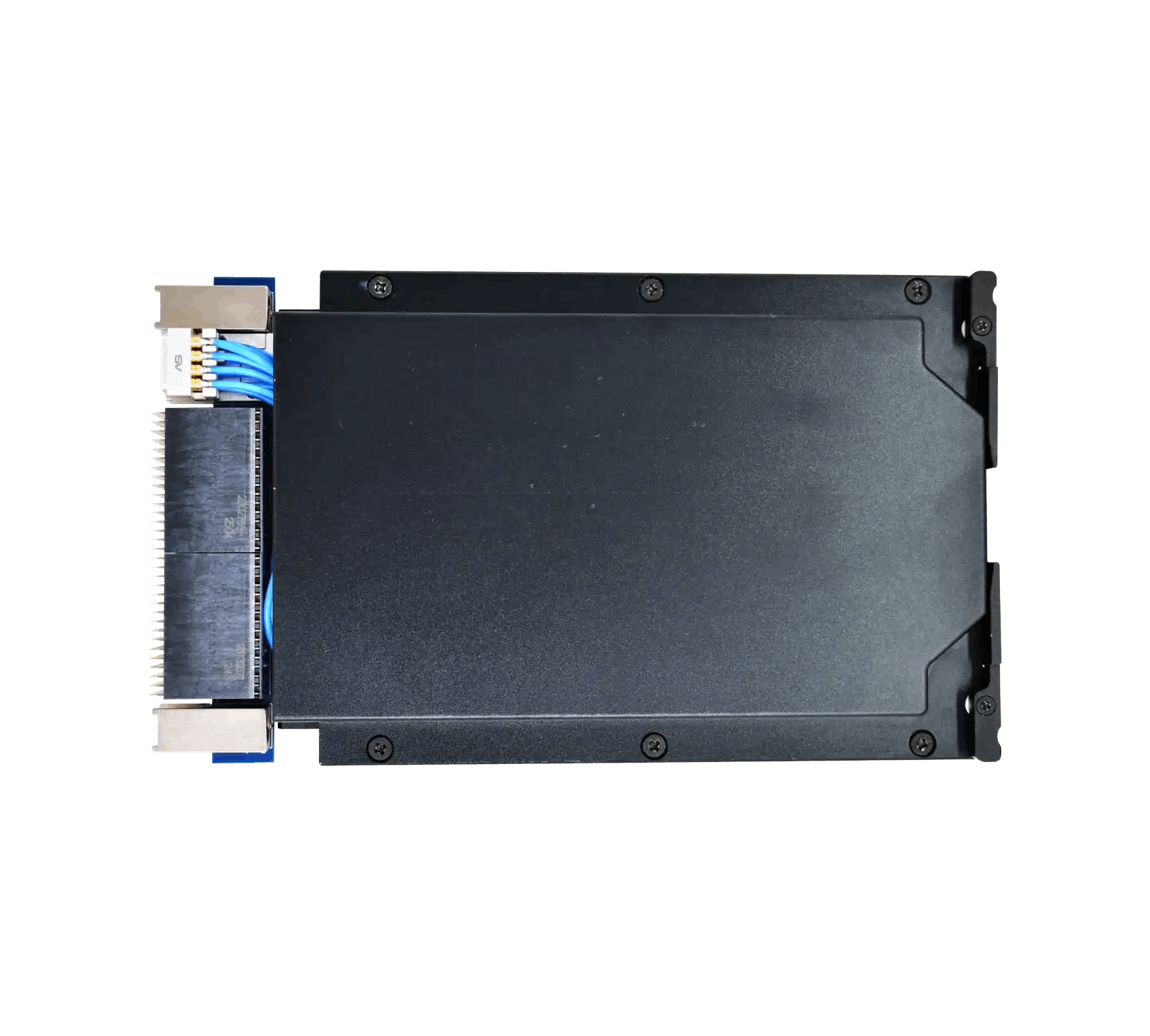

Agilex® 9 Direct RF Midband 3U VPX Plug-in Module: iG-G78V

iWave Global

Select

The iWave iG-G78V® Agilex® 9 Direct RF Midband 3U VPX Plug-in Module combines high-performance FPGA processing, integrated RF data conversion, and embedded computing in a rugged 3U VPX form factor. Powered by an Altera® Agilex® 9 AGRM027 FPGA and a quad-core Arm® Cortex®-A53 processor, it features up to 2.69M logic elements, 8-channel ADCs supporting up to 4 GSPS, and 8-channel DACs supporting up to 12 GSPS. With DDR4 memory, onboard storage, programmable RF clocking, and high-speed VPX connectivity, it is designed for advanced RF signal processing, radar, electronic warfare, and aerospace and defense applications.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Agilex® 9 Midband R31D Package – AGRM027 device
  • Quad-core 64-bit ARM® Cortex®-A53 up to 1.4GHz
  • Up to 2.7M Logic Elements, 17056 18x18 Multiplier
  • 8 DAC Channels | Up to 12GSPS | 100MHz – 7125MHz
  • 8 ADC Channels | Up to 4GSPS | 100MHz – 7125MHz
  • Integrated ultralow-noise programmable RF PLL
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 9 FPGA Direct RF-Series
Offering Status Sampling
Device OPN(s) on Board AGRW014R17B2I2V
Form Factor 3U VPX (160 mm × 100 mm), 1-inch slot pitch, conduction-cooled
Power +12V DC ±5% input through VPX connector
Interfaces 40G Ethernet Data Plane; 1G Ethernet Control Plane; 8-channel ADC up to 4 GSPS; 8-channel DAC up to 12 GSPS; USB 2.0 Type-C; Gigabit Ethernet; Debug UART; JTAG; trigger input; 10 MHz RF synchronization clock; system reference clocks and GPIO
Memory 8GB DDR4 ECC for HPS; 2 × 8GB DDR4 ECC for FPGA; 128GB eMMC; 1Gb QSPI Flash; 2Kb EEPROM
Connectors 3U VPX backplane connectors P0, P1A and P2B; 10 × NanoRF connectors; SMPM RF connectors; USB Type-C; 9-pin Ethernet header; 3-pin Debug UART header
Switches & LEDs Statues LED
Latest Quartus Version Supported 25.1.1
