Agilex® 5 Holoscan Sensor Bridge with MitySOM-A5E

Critical Link LLC

Select

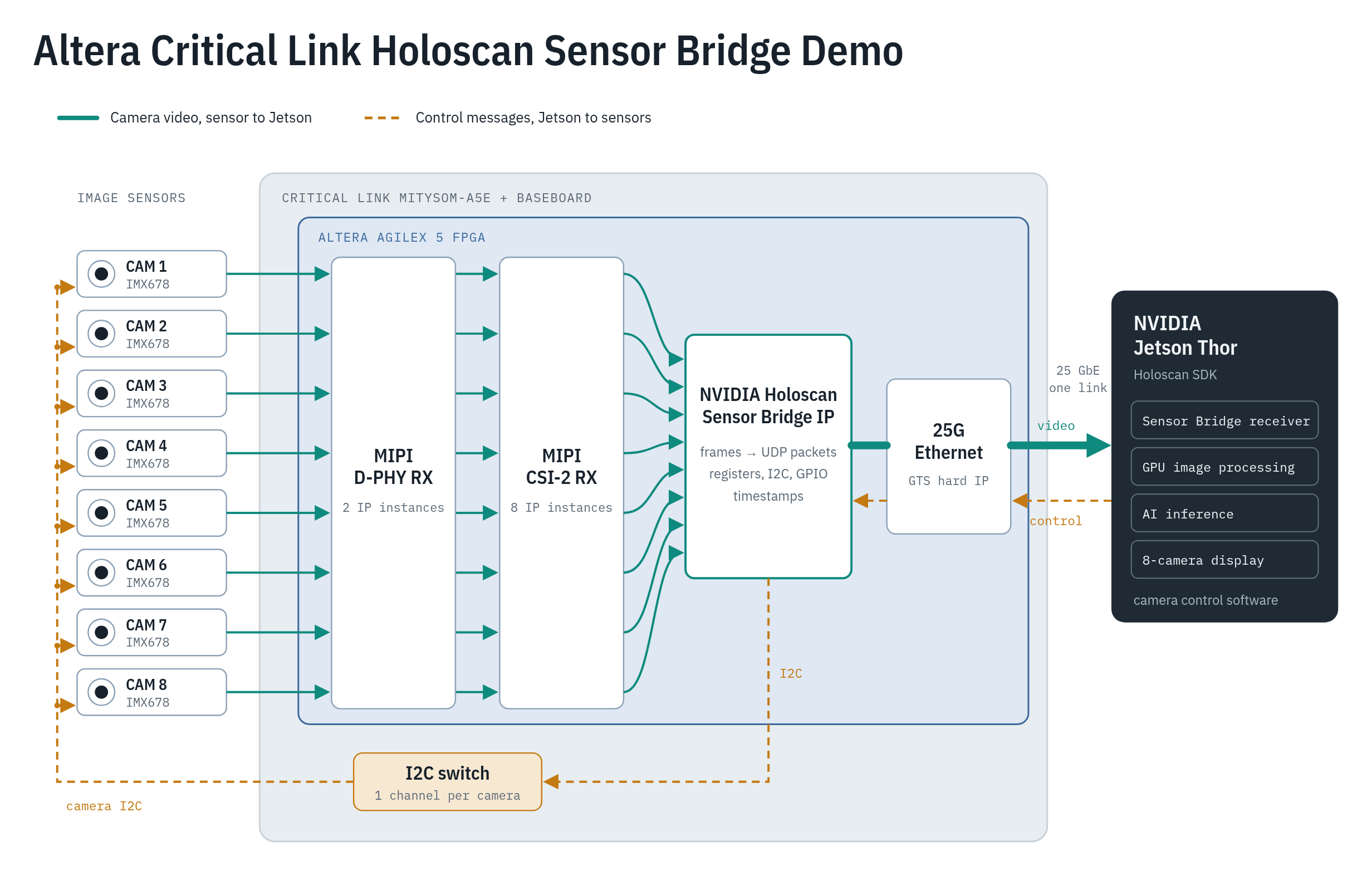

Holoscan Sensor Bridge is a low-latency, FPGA-based interface that integrates heterogeneous sensor data for real time GPU based AI processing. It simplifies sensor fusion and Edge AI application development.

Key Features of Critical Link’s HSB Solution:

-Agilex® 5 FPGA aggregates sensor inputs -8 MIPI 4-Lane CSI-2 camera interfaces -Dual 10Gb or 25Gb Ethernet transport -FMC connector for additional sensor inputs -Direct transfer to any NVIDIA GPU -Precision timing for HW-based multi-sensor synchronization -Utilizes production ready, long-lifespan SOMs

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • HSB is a low-latency, FPGA-based interface that integrates heterogeneous sensor data for real time GPU based AI processing
  • Customers get access to Critical Link's development kit base board design files to jump start their own design
  • Lifetime access to our technical support site, as well as access to application engineering resources and other services
  • MitySOM-A5E is a production-ready SOM featuring a range of FPGA densities, memory configurations, and operating temperature ranges
  • US-based engineering and production
  • Long term availability and product support
  • ISO 9001:2015 certified
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 5 FPGA E-Series
Offering Status Production
Device OPN(s) on Board A5ED065AB32AE2VI0;A5ED065BB32AM6S;A5ED065BB32AI5S;A5ED065BB32AI6S;A5ED065BB32AI6X;A5ED065BB32AE6S;A5ED065BB32AE5S;A5ED065BB32AE6X;A5ED065BB32AI4S;A5ED065BB32AE4S;A5ED065AB32AI3V;A5ED065AB32AI1VNL;A5ED065AB32AI2VNL;A5ED065AB32AI2ENL;A5ED065AB32AI3VNL;A5ED065AB32AE2E;A5ED065AB32AE2V;A5ED065AB32AE3V;A5ED065AB32AI1V;A5ED065AB32AI2E;A5ED065AB32AI2V;A5ED065AB32AE3VNL;A5ED065AB32AE2ENL;A5ED065AB32AE2VNL;A5ED065AB32AE1VNL
Form Factor 6.0" x 7.0"
Power 5-12Vdc Input

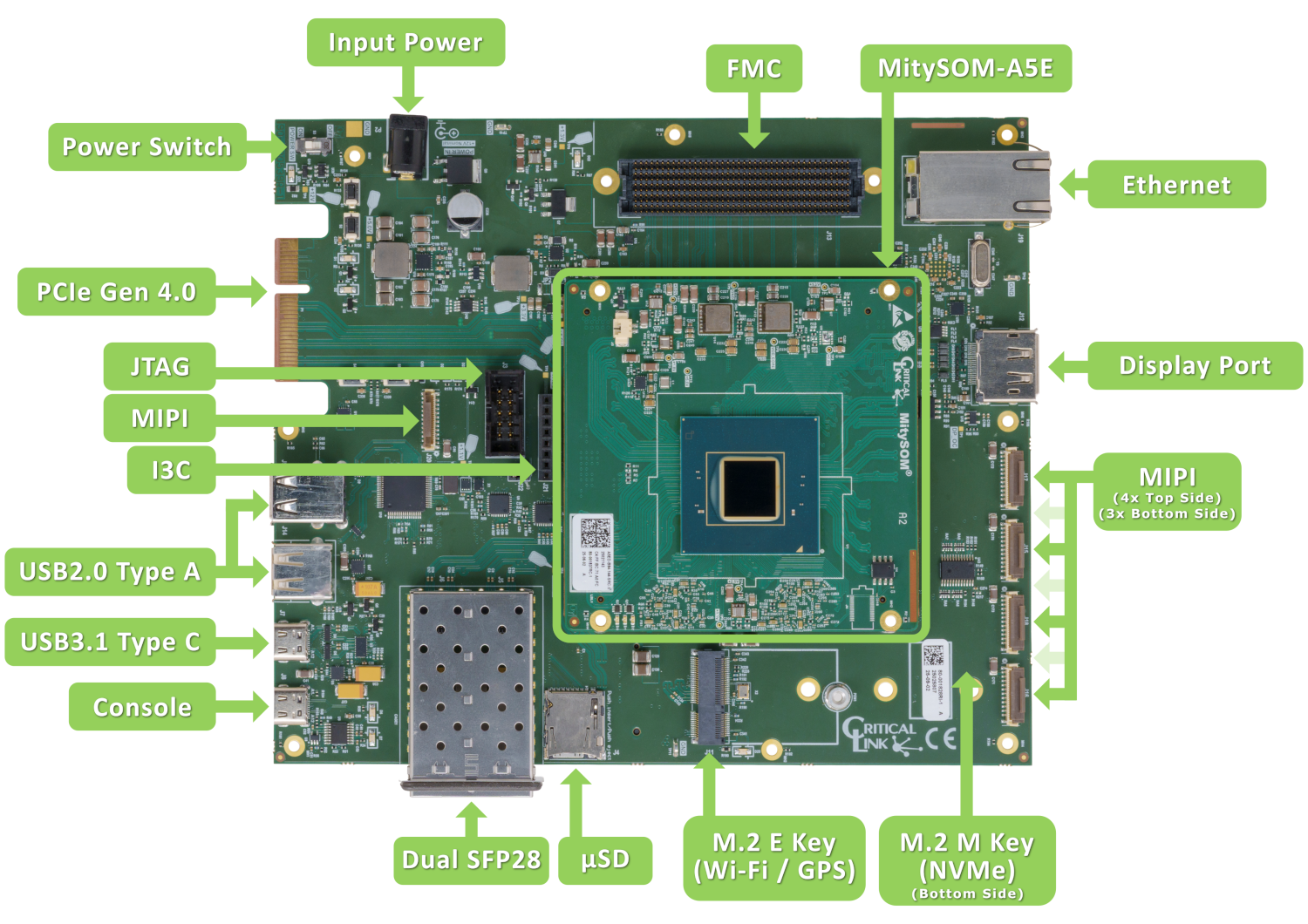

Interfaces Features an array of interfaces such as DisplayPort, USB 3.1, Gigabit Ethernet, Dual SFP+, five x4 lane MIPI CSI camera inputs, PCIe 4.0, USB-C console interface, Micro-SD card, and LPC FMC expansion interface.
Memory Up to 8 GB HPS FPGA shared LPDDR4 (32 bits wide, 10.6/14.9 GB/sec burst rate); Up to 8 GB FPGA LPDDR4 (32 bits wide, 10.6/14.9 GB/sec burst rate); 32 MB QSPI Configuration FLASH
Connectors Dual 400-pin board-to-board connector
Switches & LEDs Power switch, other toggle switches, and numerous LEDs
Latest Quartus Version Supported 26.1.0

HSB Base Board + MitySOM-A5E system on module with Agilex 5 FPGA, Group A or B device, depending on configuration

Power Supply

MicroSD card for the HPS-first designs, written with the release's SD card image

Ethernet cable, USB-A to MicroUSB cable, Fan +12V heat sink and FPGA package clip

Quick Start Guide

Ordering Information

Multiple p/ns available - see https://www.criticallink.com/product/holoscan-sensor-bridge-with-mitys
