[DISCONTINUED per PDN2513. Please see DK-A3W135BM16AEA as an alternate]

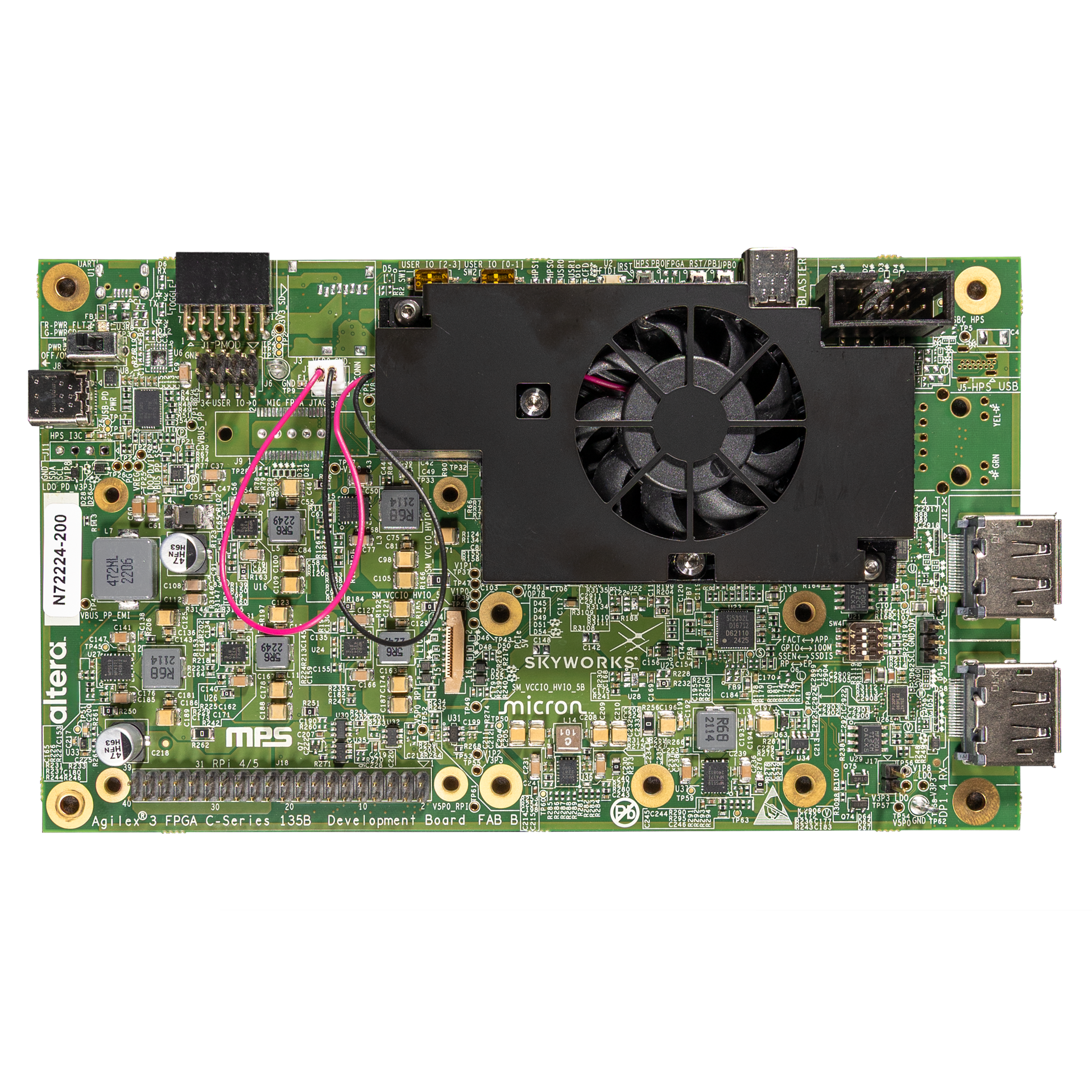

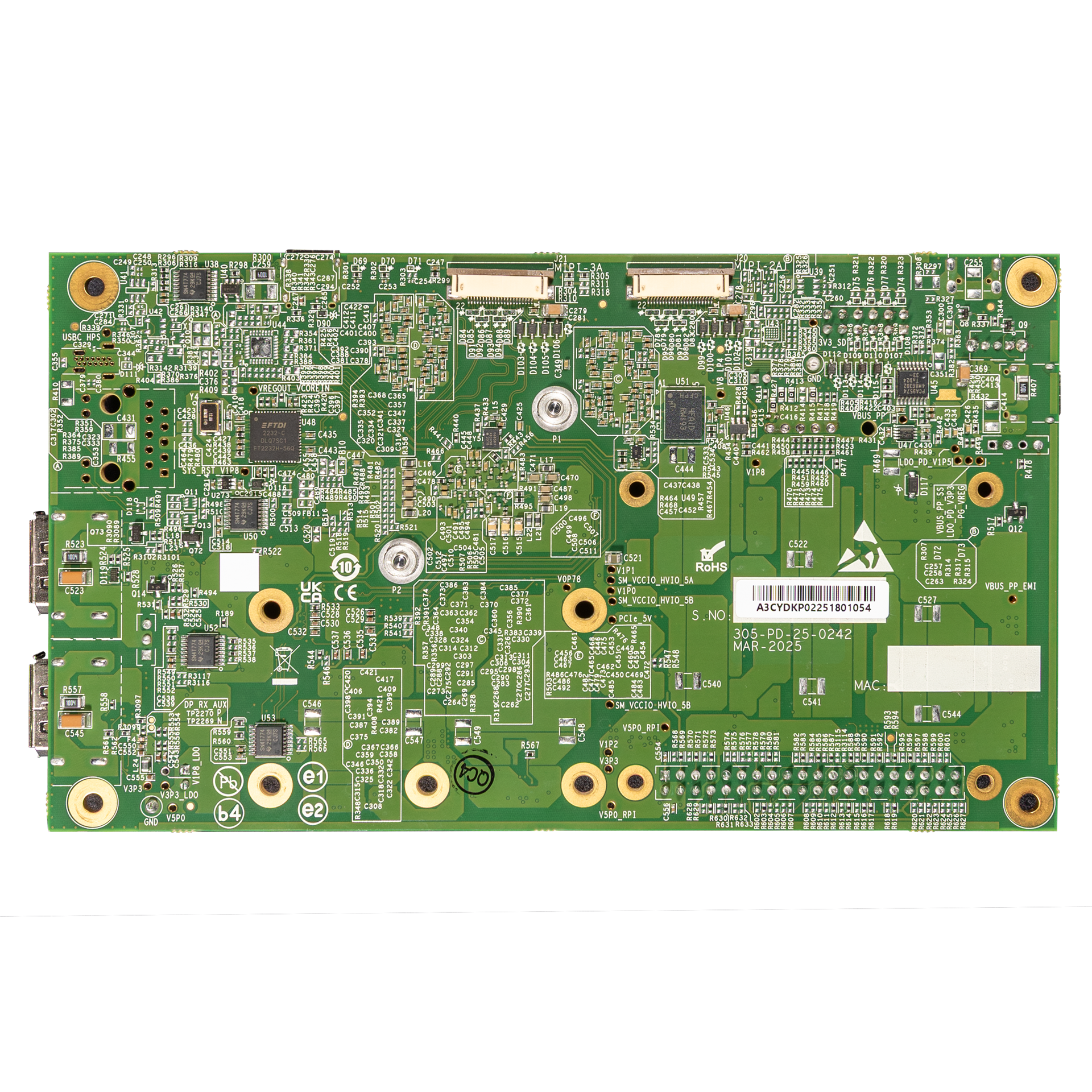

DK-A3Y135BM16AEA: Agilex™ 3 FPGA C-Series Development Kit

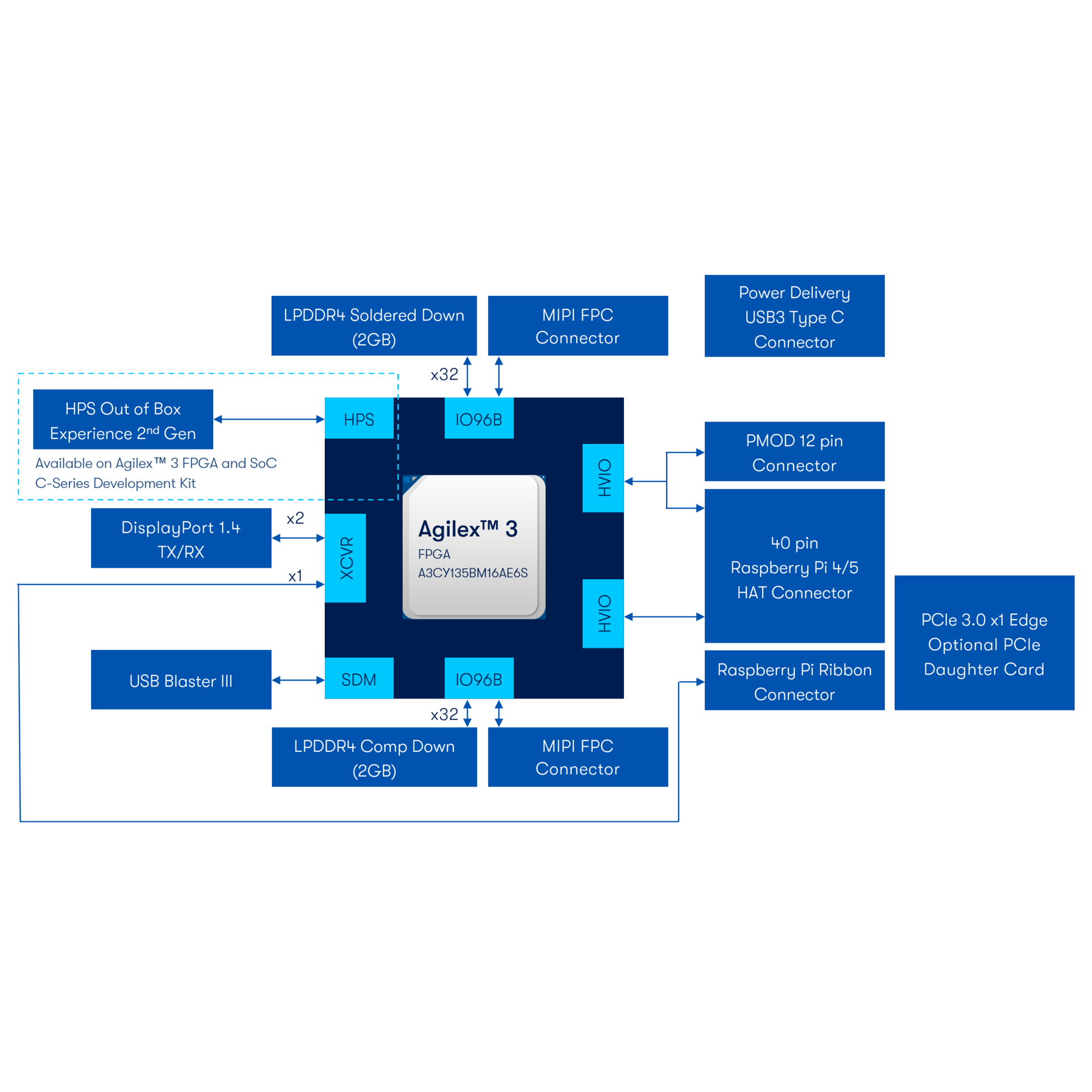

This Development Kit is a robust platform for evaluating and prototyping high-performance FPGA and SoC designs. It supports a wide range of connectivity options including PCIe 3.0 (via optional DC-A3SOCPCIE OR DC-A3PCIE card), DisplayPort 1.4, dual MIPI interfaces, and high-speed transceivers, making it ideal for applications requiring advanced data throughput and multimedia capabilities. The kit includes dual LPDDR4 memory banks, onboard USB-Blaster III, and a comprehensive Board Test System GUI for rapid validation and development.
Designed for flexibility, the kit supports both bench-top and PCIe add-in card operation. It features expansion headers for Raspberry Pi 4/5 HATs and Digilent Pmod modules, enabling integration with popular ecosystems. With its compact form factor, active cooling, and USB-PD power input, the Agilex 3 C-Series kit is well-suited for a wide range of embedded, edge, and compute-intensive applications. For Agilex 3 SoC FPGA evaluation, please see the DK-A3W135BM16AEA development kit, which adds HPS interfaces such as USB, Ethernet, UART, and microSD, enhancing embedded development
