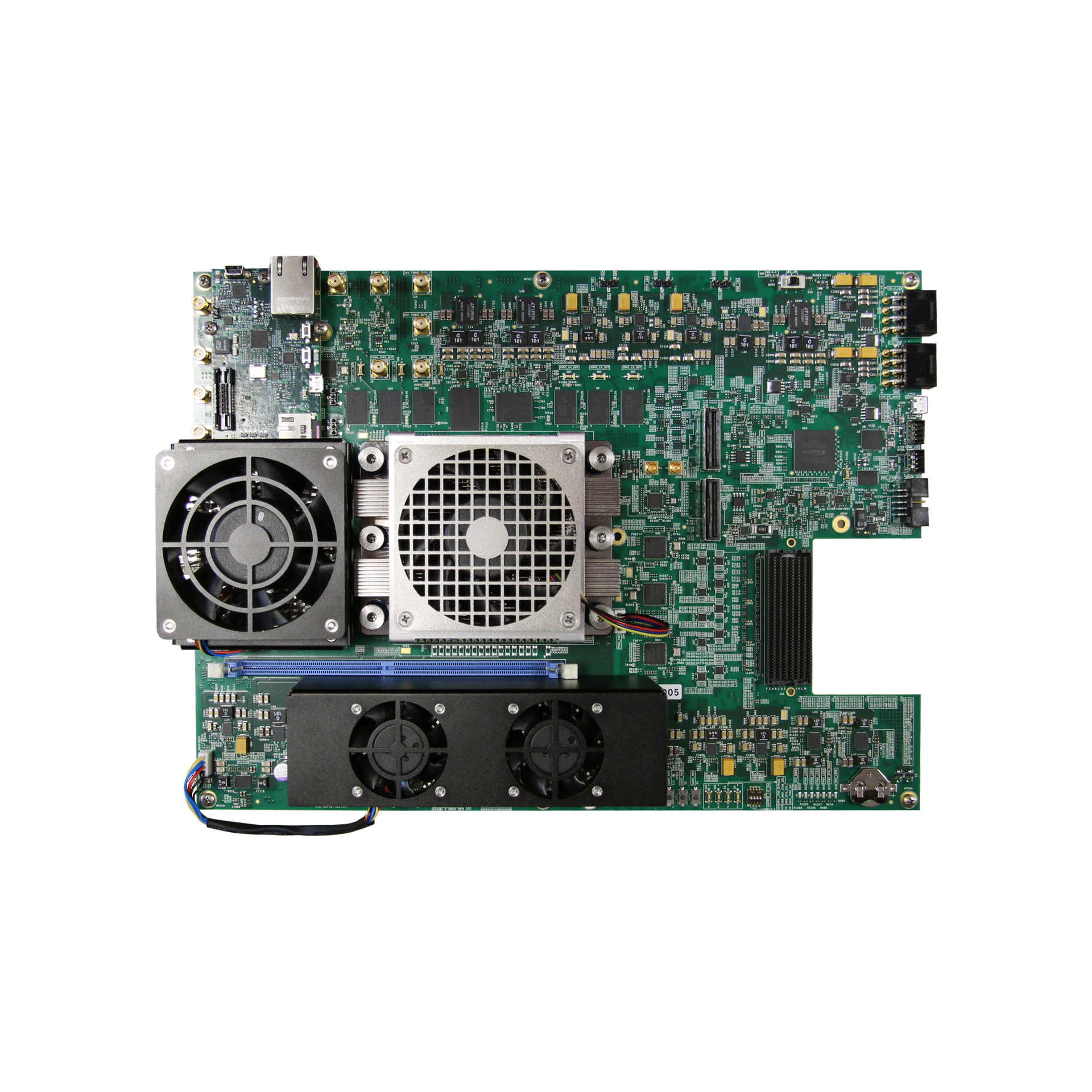

DK-DEV-AGM039EA: Agilex™ 7 FPGA M-Series Development Kit - HBM2e Edition

Built for memory‑intensive, high‑bandwidth workloads, this high‑performance platform combines in‑package HBM2e with broad support for external memory interfaces including DDR5 DIMMs, LPDDR5, and component‑based DDR5. The kit includes a robust power delivery system, thermal management, and a comprehensive suite of software tools for configuration, diagnostics, and performance monitoring.

Connectivity is a standout feature of this kit. It includes two QSFPDD ports, one QSFPDD800 port, and a PCIe 5.0 x16 interface via MCIO, enabling up to high speed PAM4 signaling. The FMC+ connector supports additional expansion, and the HPS OOBE daughter card provides Ethernet, USB, and UART interfaces. With its extensive I/O, programmable clocks, and integrated GUI tools, this kit is ideal for prototyping next-generation FPGA designs in networking, data center, and AI workloads.

Contact Now

Contact Altera

LeadSource

ASAP Account ID

Record Type Name

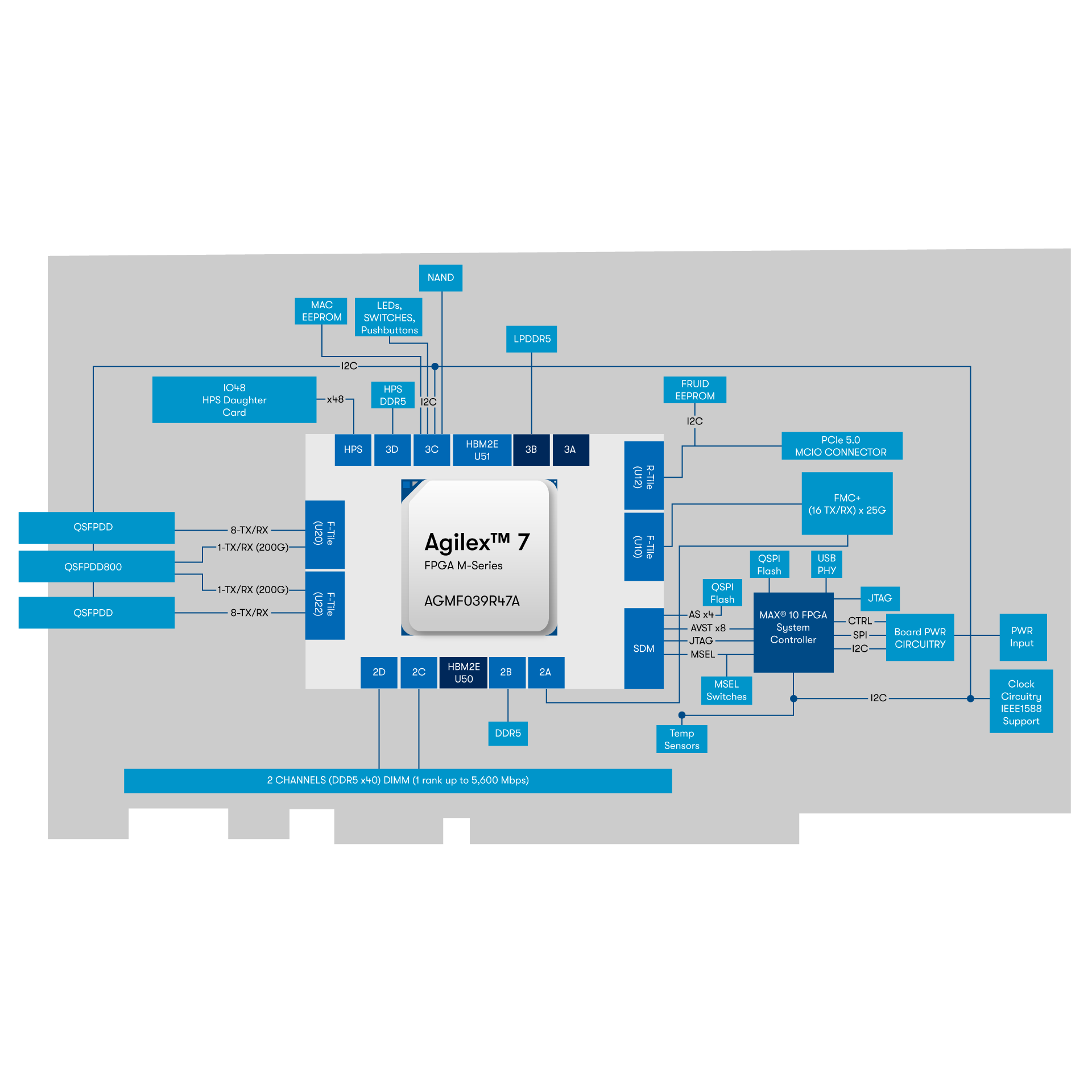

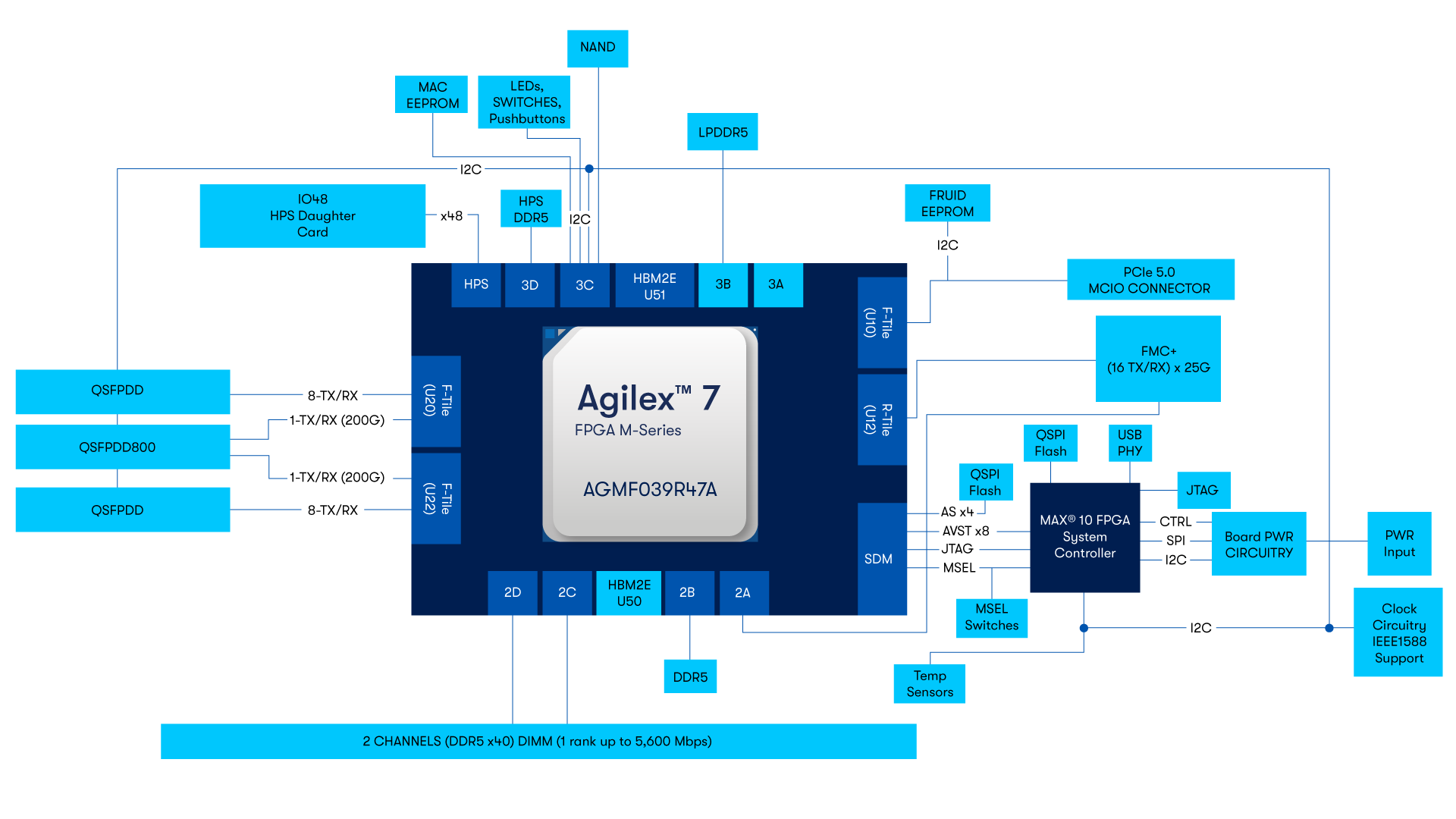

Key Features

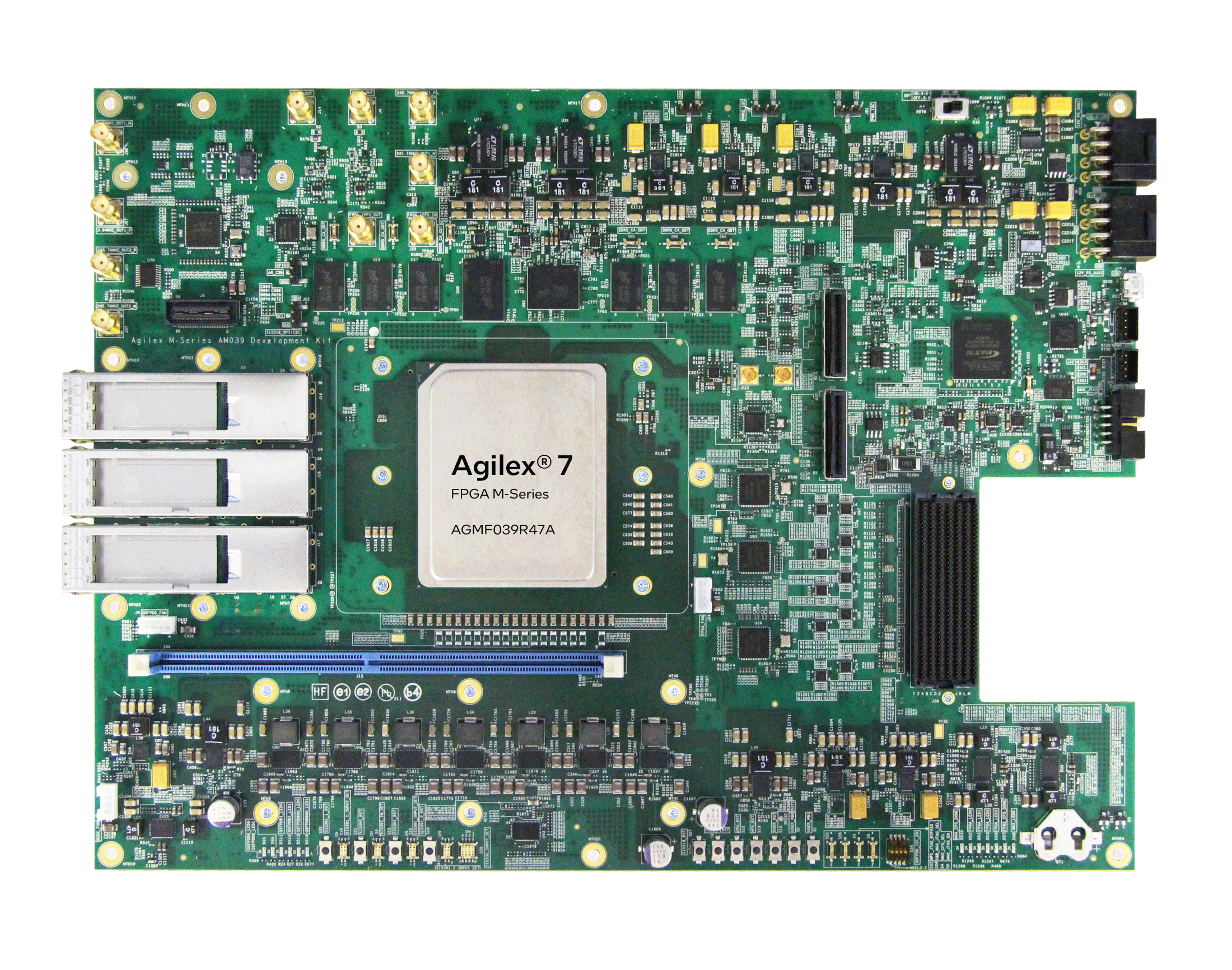

Features Agilex™ 7 M-Series FPGA with integrated HBM2e, and 3x F-Tiles, and 1x R-Tile (AGMF039R47A1E2VC)
Includes 2x QSFPDD, 1x QSFPDD800, and PCIe 5.0 x16 via MCIO for high-speed connectivity
Provides 2x DDR5 DIMM slots, 2x DDR5 component interfaces, and 2x LPDDR5 channels
Features onboard FPGA Download Cable II and external JTAG header for flexible programming
Integrated MAX 10 system controller for power sequencing, monitoring, and fan control
Comes with BTS GUI, Clock Controller, and Power Monitor for board validation and diagnostics
Offers programmable clocking with Si5391, Si5392, Si5395, Si5332, and Si5518
Includes HPS Out-of-Box Experience (OOBE) daughter card with Ethernet, USB, UART, and GPIO
Designed for up to 410 W FPGA power with dual 300 W power input support

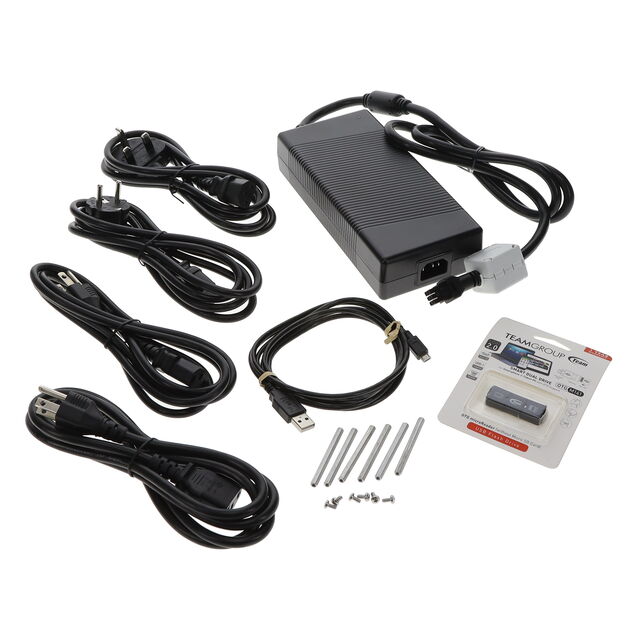

Delivered with DDR5 DIMM, USB cable, 240W power adapter, and international power cords

Offering Brief

Device Family	Agilex® 7 FPGAs and SoC FPGAs M-Series
Offering Status	Production
Device OPN(s) on Board	AGMF039R47A1E1VC
Form Factor	Tabletop
Power	Powered via dual 300W adapters through AUX connectors; supports up to 410W FPGA power
Interfaces	PCIe Gen5 x16 via MCIO 2x QSFPDD 1x QSFPDD800 FMC+ USB Type-C (DP1.4/USB3.1) UART RJ-45 Ethernet GPIO I2C SPI JTAG
Memory	16GB DDR5 RDIMM (5600 Mbps); 40-bit DDR5 component with ECC (5600 Mbps); Shared DDR5 component with ECC (5600 Mbps); 2x16 LPDDR5 component (5500 Mbps); HBM2e top and bottom banks
Connectors	2X QSFPDD connectors; QSFPDD800 connector; FMC+ connector; MCIO connector; DDR5 DIMM slot; USB Micro-B; MicroSD slot; JTAG header; Clock I2C headers; SPI debug headers
Switches & LEDs	User push buttons; Reset switches for FPGA, HPS, PCIe, CXL; Power recycle switch; Configuration image selector; Clock source selectors; MAX 10 JTAG enable switch; User LEDs; QSFPDD status LEDs; Overtemp warning LED; Power good LED; Configuration done LEDs
