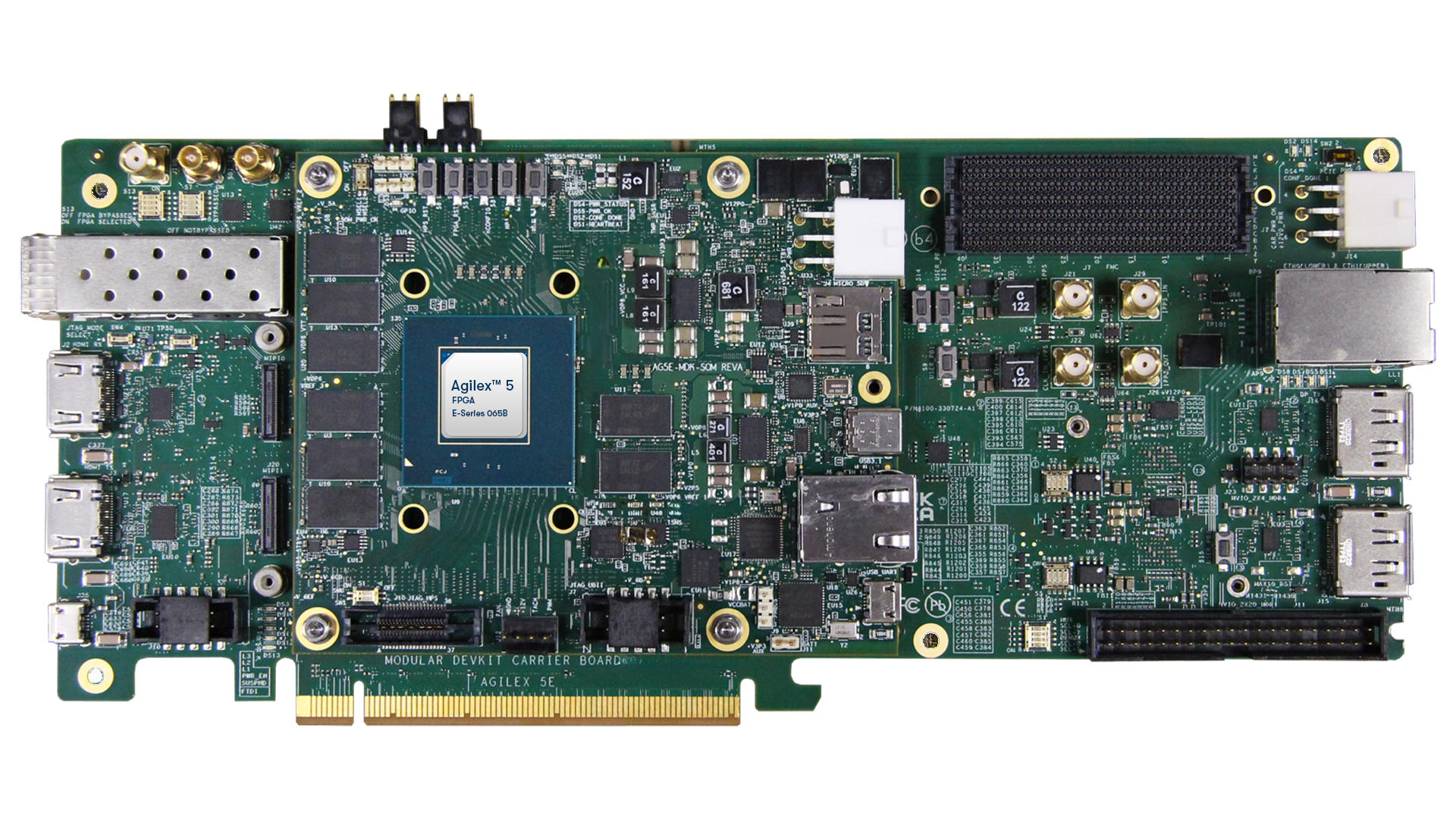

MK-A5E065BB32AEA: Agilex™ 5 FPGA and SoC E-Series 065B Modular Development Kit (Group B Device)
PRODUCT PREVIEW, NOT AVAILABLE FOR ORDER

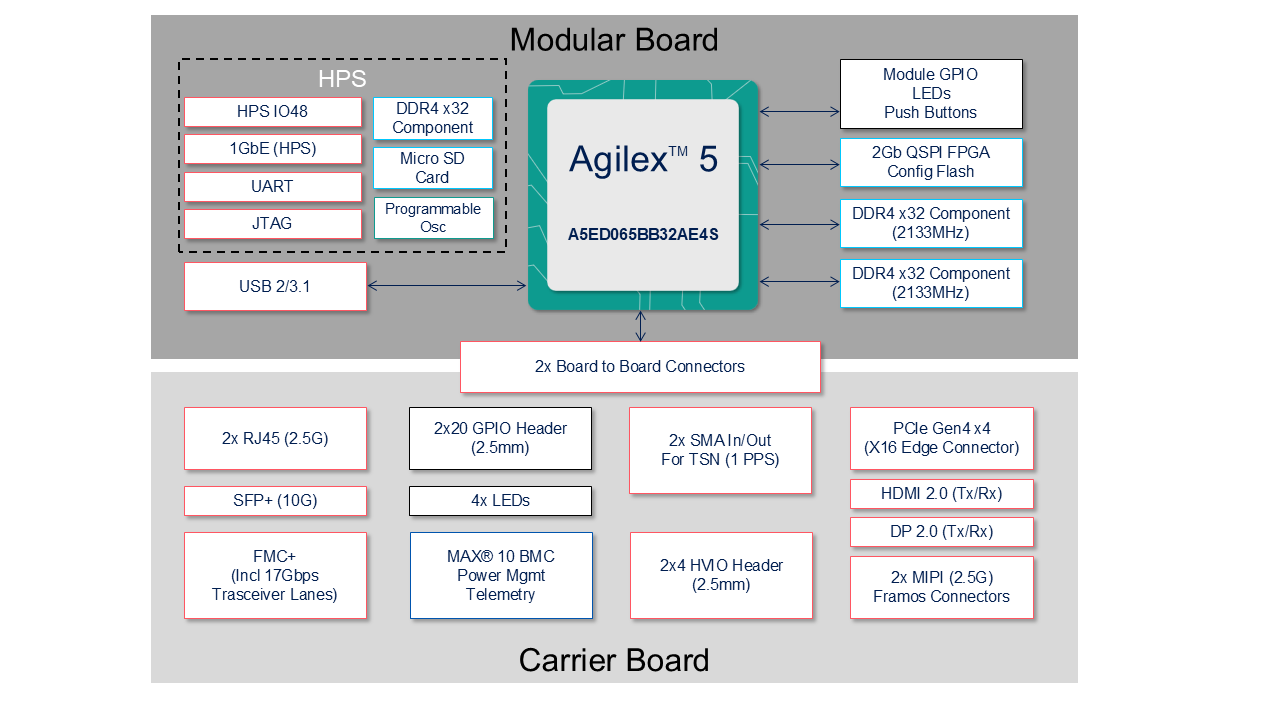

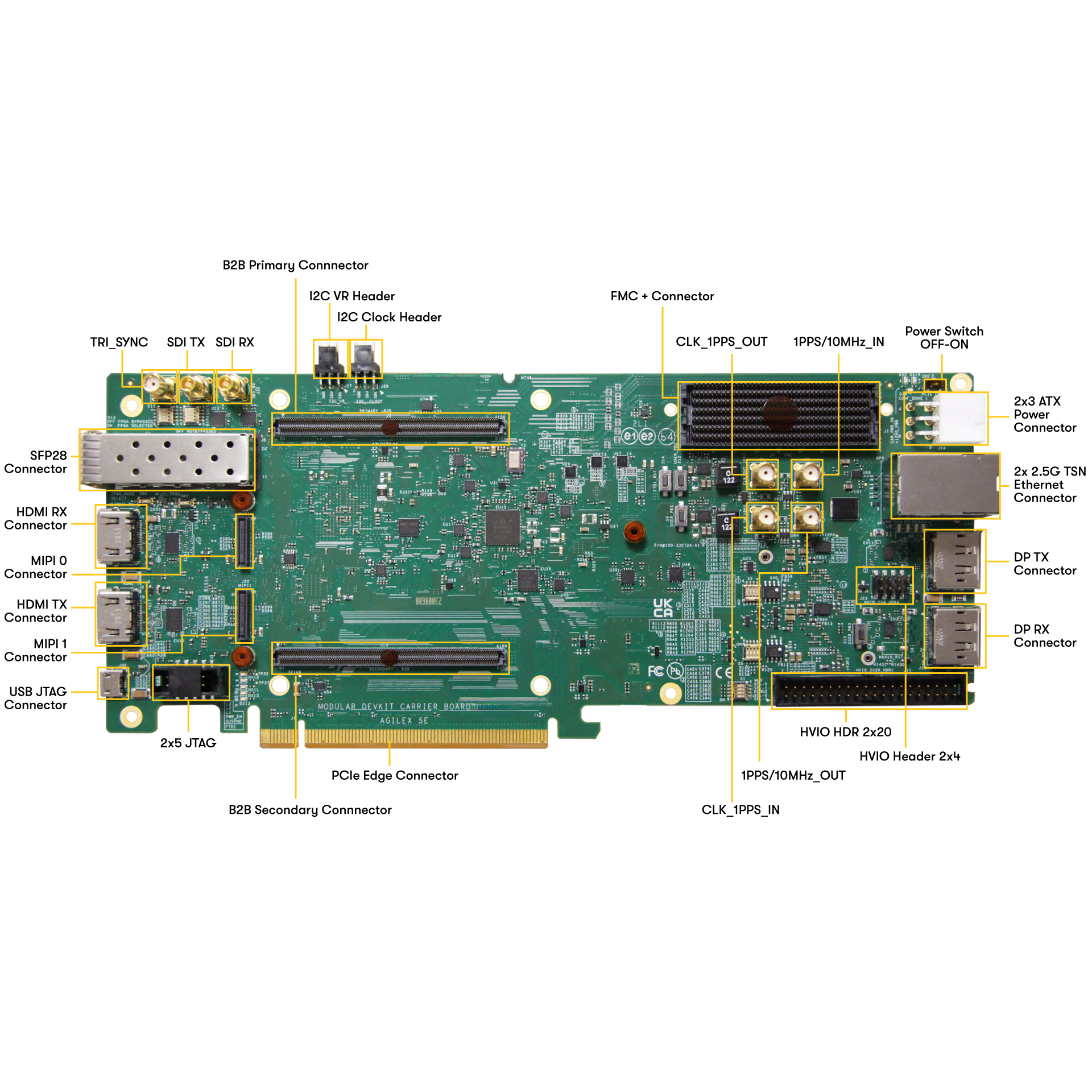

This complete prototyping and reference platform is built for evaluating high‑performance FPGA and SoC designs. The modular board‑and‑carrier architecture delivers extensive connectivity, including PCIe Gen4, SFP+ (10G), HDMI 2.0, DisplayPort 2.0, and dual 2.5G TSN Ethernet, enabling rapid development across compute, networking, and embedded applications. The kit supports three DDR4 memory banks—two for FPGA fabric and one for the HPS—enabling high-bandwidth data processing and embedded system development.
Designed for flexibility, the kit includes FMC+ and MIPI connectors for expansion into vision, AI, and industrial applications. The integrated Board Test System (BTS) GUI simplifies validation of clocks, power, memory, and transceivers. With built-in USB-JTAG, programmable clocks, and robust power sequenc...
MK-A5E065BB32AEA: Agilex™ 5 FPGA and SoC E-Series 065B Modular Development Kit (Group B Device)
PRODUCT PREVIEW, NOT AVAILABLE FOR ORDER
This complete prototyping and reference platform is built for evaluating high‑performance FPGA and SoC designs. The modular board‑and‑carrier architecture delivers extensive connectivity, including PCIe Gen4, SFP+ (10G), HDMI 2.0, DisplayPort 2.0, and dual 2.5G TSN Ethernet, enabling rapid development across compute, networking, and embedded applications. The kit supports three DDR4 memory banks—two for FPGA fabric and one for the HPS—enabling high-bandwidth data processing and embedded system development.
Designed for flexibility, the kit includes FMC+ and MIPI connectors for expansion into vision, AI, and industrial applications. The integrated Board Test System (BTS) GUI simplifies validation of clocks, power, memory, and transceivers. With built-in USB-JTAG, programmable clocks, and robust power sequencing via MAX 10, the kit is ideal for developers building advanced systems in networking, edge AI, and embedded computing.
