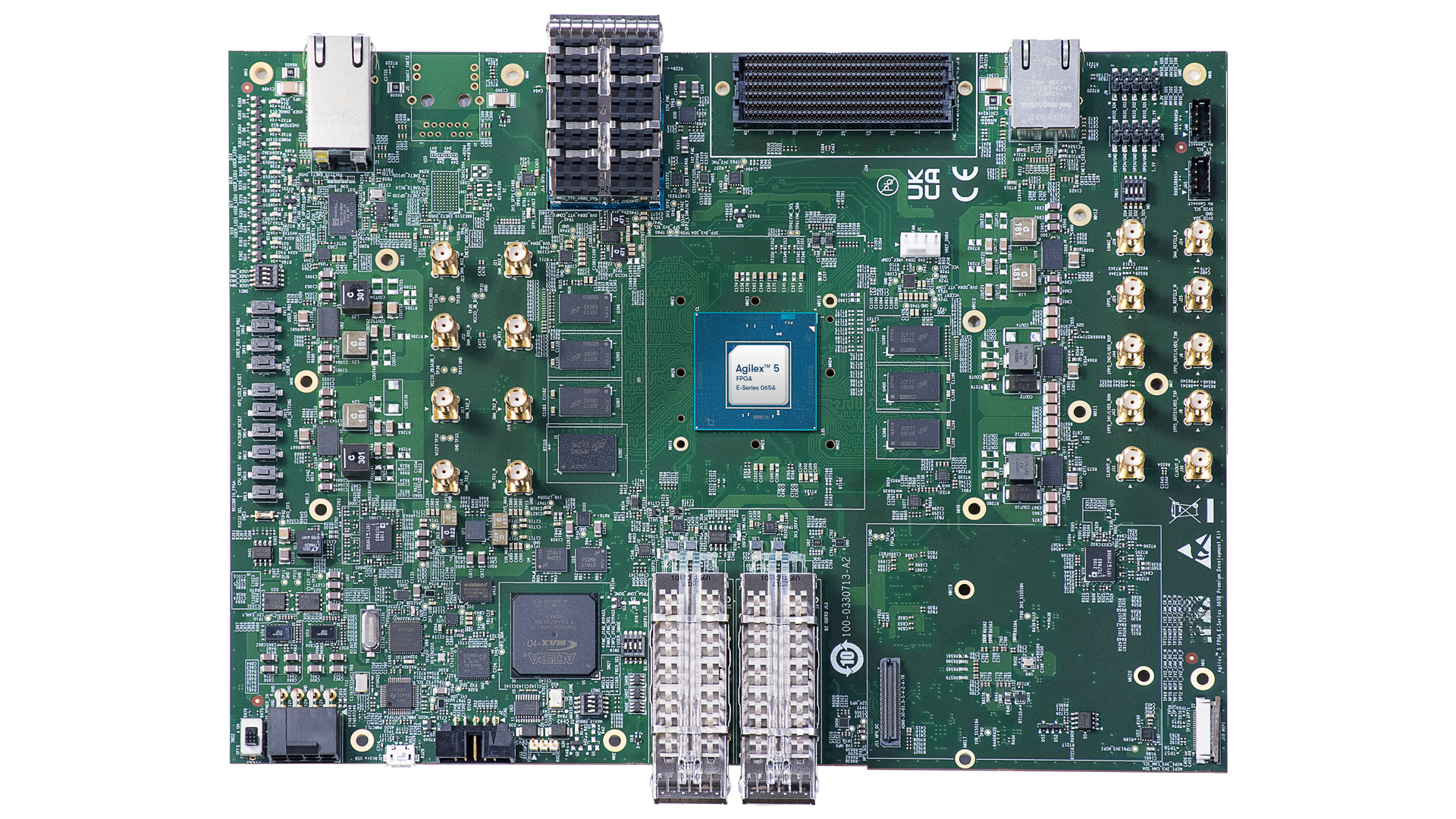

DK-A5E065AB32AEA: Agilex™ 5 FPGA and SoC E-Series Premium Development Kit (Group A Device)

PRODUCT PREVIEW, NOT AVAILABLE FOR ORDER

This is a complete platform for developing and validating high-performance FPGA and SoC designs. It integrates a wide array of connectivity options including dual QSFP and SFP28 ports, PCIe Gen4 via FMC+, USB 3.1, and multiple Ethernet interfaces. The kit supports three memory types—DDR4 for both FPGA and HPS, and LPDDR4 for high-speed data processing—making it ideal for bandwidth-intensive applications.

Designed for flexibility and ease of use, the kit includes a built-in FPGA Download Cable II, a robust Board Test System GUI, and support for expansion via HPS cards and FMC modules. With its rich I/O, programmable clocks, and advanced power and thermal monitoring, the Agilex 5 Premium Kit is well-suited for applications in networking, embedded vision, edge AI, and industrial automation.

Contact Now

Contact Altera

LeadSource

ASAP Account ID

Record Type Name

Key Features

Features an Agilex 5 FPGA and SoC E-Series 065A device (Group A) with dual-core Arm Cortex-A76 and Arm Cortex-A55 HPS
Includes dual QSFP and dual SFP28 (25G) ports for high-speed optical connectivity
Supports PCIe Gen4 x4 via FMC+ connector and USB 3.1 via HPS expansion board
Offers three memory interfaces: 8 GB DDR4 for FPGA, 8 GB DDR4 for HPS, and 4 GB LPDDR4 for FPGA
Features dual-core Arm Cortex-A76 and dual-core Cortex-A55 processors in the HPS
Provides multiple Ethernet options including RGMII and SGMII with PHYs
Integrated Board Test System (BTS) GUI for diagnostics, clock, power, and transceiver testing
Built-in FPGA Download Cable II and JTAG header for flexible programming
Includes MIPI interface, SMA connectors, and user-configurable switches and LEDs
Ships with preloaded factory images and SD card for HPS boot, with restore tools included
Includes HPS Expansion Board (EB-HPSEB), compatible with optional HPS NAND expansion board (EB-HPSNB) and optional HPS Test Board (EB-HPSTB)

Offering Brief

Device Family	Agilex™ 5 FPGA E-Series
Offering Status	Production
Device OPN(s) on Board	A5ED065AB32AE1V
Form Factor	Tabletop
Power	12V DC input via keyed 2x4 connector; includes onboard hot-plug circuits and power monitoring

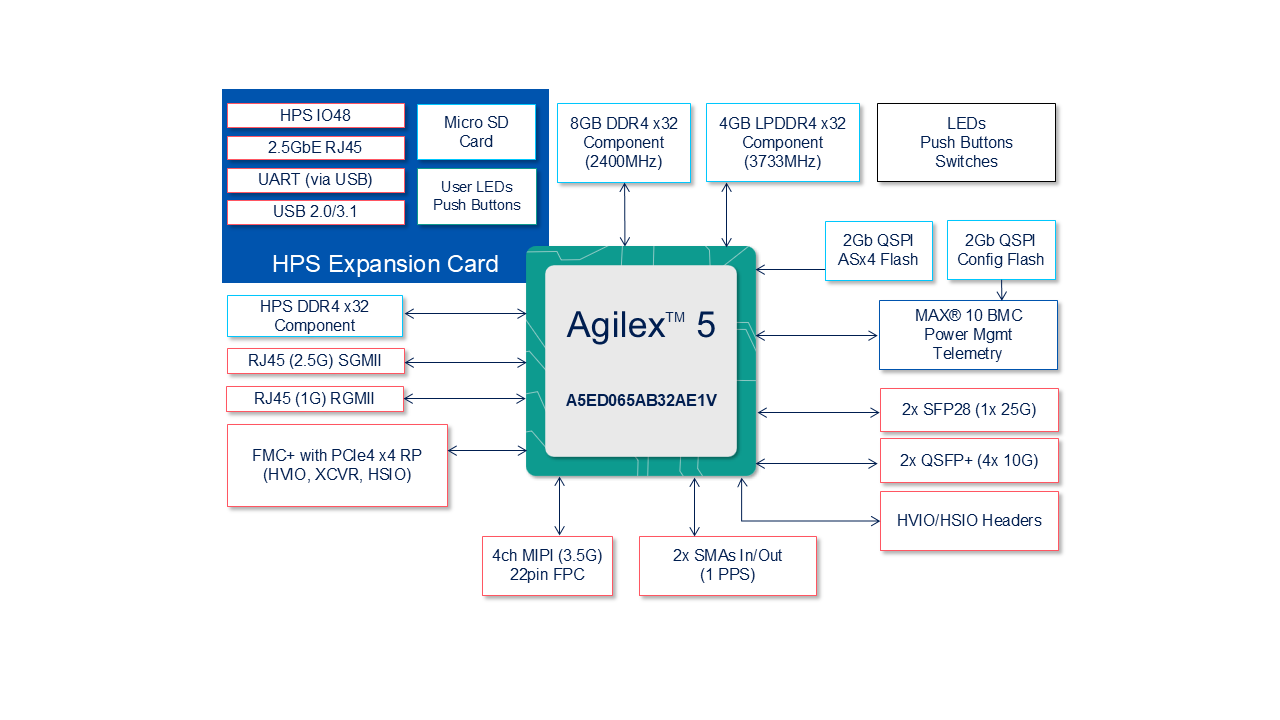

Interfaces	USB 3.1 Type-C via HPS card USB 2.0 Micro & Mini PCIe Gen4 x4 via FMC GPIO (HVIO & HSIO banks) UART via Micro USB Ethernet (RGMII, SGMII) 2x QSFP (4x 10G) 2x SFP28 (1x 25G) MIPI (3.5G) JTAG I²C FMC+ SMA (clock and data)
Memory	8 GB 2400MHz DDR4 x32 with ECC for FPGA; 8 GB 2400MHx DDR4 x32 with ECC for HPS; 4 GB 3733MHz LPDDR4 x32 for FPGA; 2 Gb QSPI Flash for AS x4 config; 2 Gb QSPI Flash for Avalon x8 config; EEPROM; Micro SD card (pre-programmed)

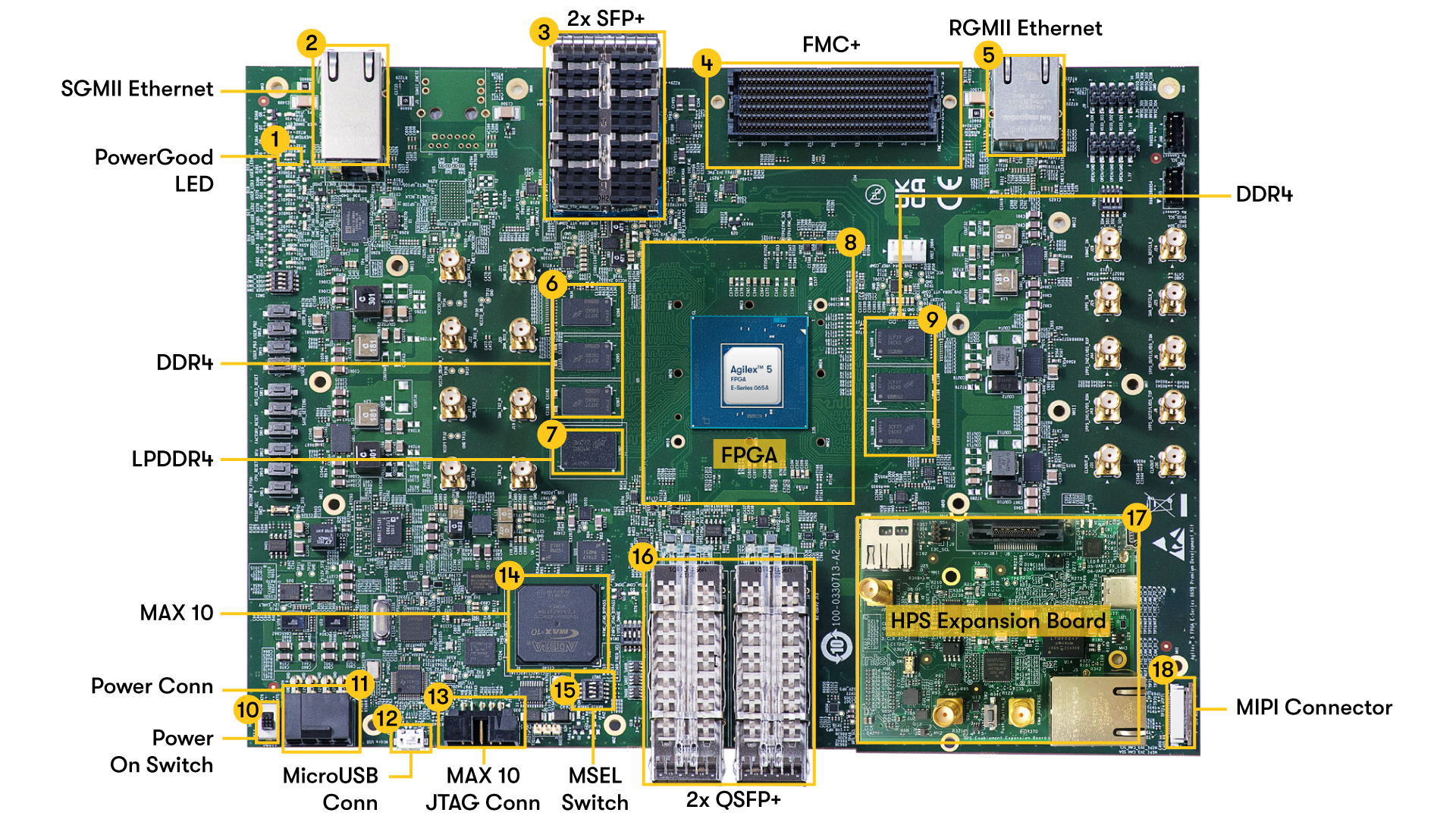

Connectors	FMC+ connector; QSFP cages (2); SFP28 cages (2); RJ45 Ethernet (2 onboard, 1 on HPS card); Micro USB; Mini USB; MIPI 22-pin; JTAG header; SMA connectors (clock/data); Power input (2x4); HPS card connector; I²C debug headers
Switches & LEDs	Power switch; 4 user DIP switches; 4 user push buttons; RS232 selector switch; HSIO debug switches; MSEL config switches; Factory reset button; Save EEPROM button; FPGA config button; HPS cold reset button; 4 user LEDs; Power good LED; FPGA config done LED; MAX 10 config done LED; Over-temp LED; Link/activity LEDs for QSFP/SFP/Ethernet
