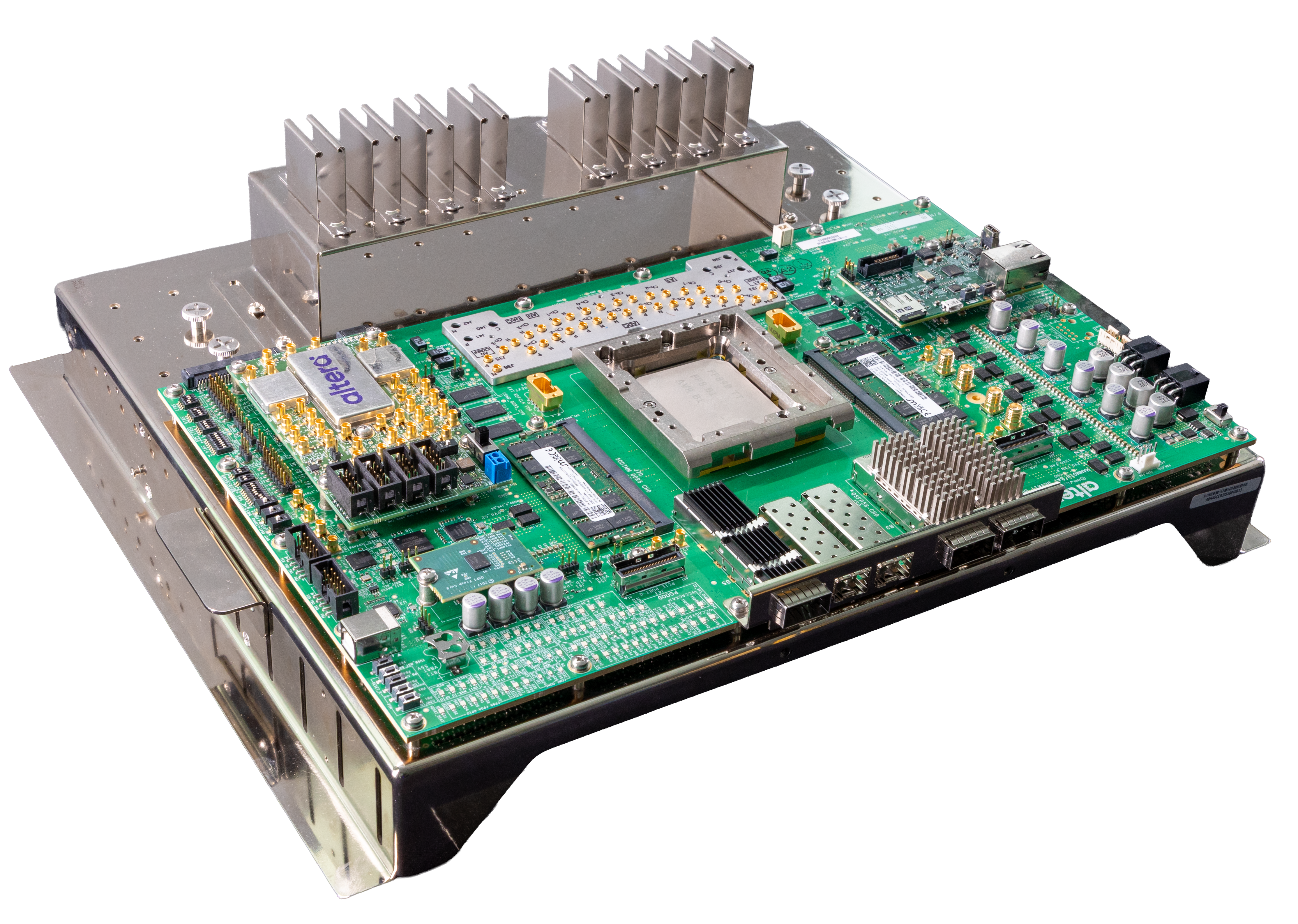

DK-DEV-4ARF-FA-A: Agilex™ 9 Direct RF-Series AGRW039 Development Kit
This development kit is a comprehensive platform designed for high-performance Agilex 9 AGRW039 SoC FPGA development, specifically targeting applications with wideband RF requirements. With a supported RF frequency range of 0.1 to 36 GHz and IBW of up to 32 GHz, and FPGA logic density of up to 3.9M Logic Elements, this kit showcases the high-performance wideband data converters and high-speed interface capabilities of the Agilex 9 series. It supports eight RF sampling transmit DAC channels and eight RF sampling receiver ADC channels with 10-bit resolution per channel and sample rates up to 64 GSPS, making it ideal for advanced signal processing, radar, EW, and high-bandwidth secure communication systems.
The kit features a rich set of peripherals including two PCIe Gen4 x4 slots, 2x QSFP28 and 1x QSFPDD ports for up to 400 GbE connectivity, and 2x SFP+ ports providing10 GbE. It includes clock generation and synchronization to support precise timing and RF signal integrity. With access to board source files and a robust Board Test System (BTS) GUI for diagnostics and configuration, this development kit empowers engineers to rapidly prototype and validate RF-centric designs.
