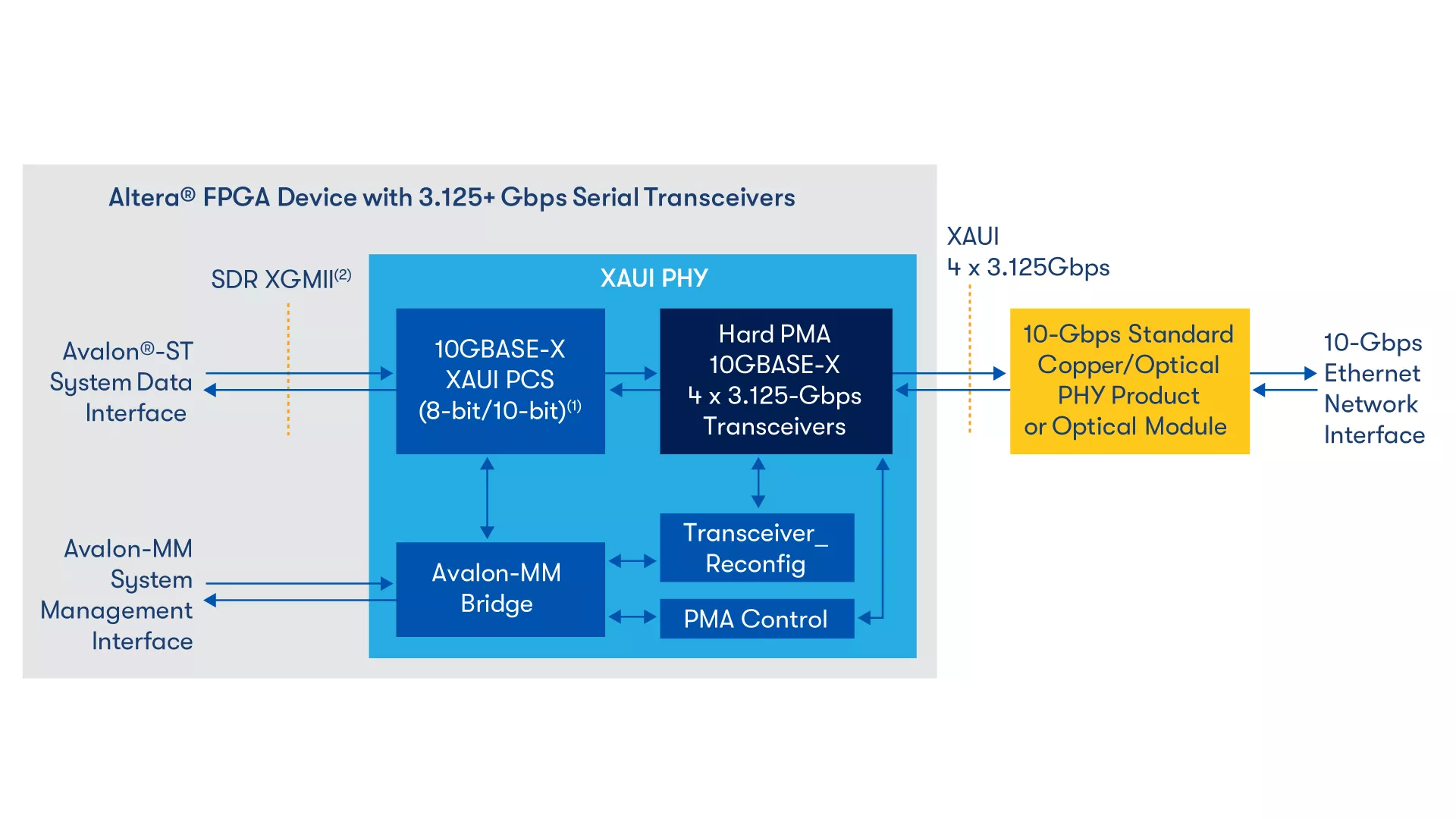

The XAUI PHY FPGA IP core allows you to easily build systems with a very high throughput 10G Ethernet connection. This XAUI PHY along with a 10GbE media access control (MAC) IP core enables an Altera FPGA to interface to a 10GbE network through a variety of external devices, including a 10GbE PHY device or optical transceiver module.
Altera
Key Features
- Complete 10G Ethernet (XAUI) PHY solution for 4X 3.125 Gbps serial external interface
- PHY consisting of 10GBASE-X physical coding sublayer (PCS)
- Physical medium attachment (PMA)
- XGMII Extender Sublayer (XGXS), 10G Ethernet (XAUI), and PHY management functions
- Direct interface with 10GbE MAC for a complete solution, Direct standard XAUI PHY (4X 3.125 Gbps) connection for chip-to-chip, chip-to-optical module, chip-to-PHY device, backplane, and short cable applications
- PHY and soft XAUI PCS supported on many FPGA device families including: Stratix® IV, Stratix® V, Arria® V, and Arria® 10 FPGAs with serial transceivers
- Data and control bits 8b/10b encoding/decoding and per-lane synchronization, data serialization/deserialization (SERDES) to and from 4X 3.125 Gbps line
- Receiver four-data lane alignment, deskew, and alignment of four lanes, and receiver rate matching for clock frequency compensation
- Dynamic partial reconfigurable I/O (DPRIO) support
- Local serial loopback from transmitter to receiver at the device's serial transceiver for self-testing
Offering Brief
Offering Brief
| Device Family | |
|---|---|
| Offering Status | Production |
| Integrated Testbench | Yes |
| Development Language | Encrypted Verilog |
Encrypted Verilog source code
Simulation Models
Documentation: User Guide, Release Information
Ordering Information
IP-XAUIPCS
