LVDS Tunneling Protocol and Interface IP

Altera

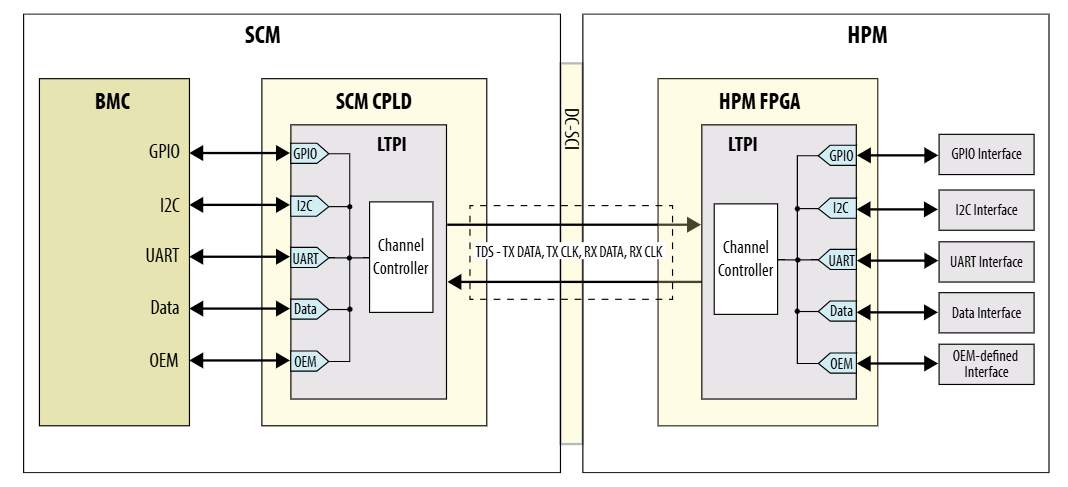

LVDS Tunneling Protocol and Interface (LTPI) is a soft IP introduced in the DC-SCM 2.0 specification to facilitate the tunneling of low-speed signals between the host platform module (HPM) and secure control module (SCM) through the low-voltage differential signaling (LVDS) interfaces.

Contact Now

Key Features

  • Compliant with OCP DC-SCM 2.0 LTPI 1.0 specifications
  • Supports all speed-grade configurations for the Agilex® 5 devices
  • Supports up to five channel aggregation and disaggregation
  • Supports GPIO, I2C, UART, OEM, and data channel aggregations
  • Supports link training for reliable link operation
  • Supports up to 500 Mbps data rate for all speed-grade configurations in Agilex® 5 devices
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 5 FPGA D-Series, Agilex® 5 FPGA E-Series
Offering Status Production
Integrated Testbench Yes
Evaluation License Yes
Development Language Encrypted Verilog

Encrypted Verilog source code

Design Example

Simulation Models

IP Evaluation Mode

Documentation: User Guide, IP Release Notes

Ordering Information

IP-LTPI

from Mouser

Get Pricing and Availability
